How can I get a price quote for Siemens 3NE4333-3?

You can request a fast quote for Siemens 3NE4333-3 from Yılsa Engineering. Reference part number YLSOXGA9QFGDJE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NE4333-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NE4333-3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NE4333-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

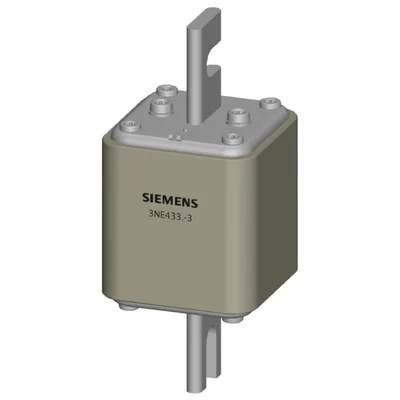

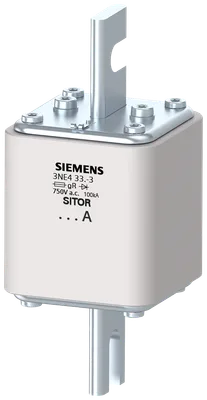

Siemens 3NE4333-3

SITOR fuse link, with slotted blade contacts, NH2, In: 450 A, aR, Un AC: 750 V, front indicator

SiemensMFR # 3NE4333-3SKU # YLSOXGA9QFGDJE

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorfront indicator

design of the fuse linkSITOR, LV HRC design

operating class of the fuse linkaR

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with slotted blade contacts, NH2, In: 450 A, aR, Un AC: 750 V, front indicator

Siemens 3NE4333-3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorfront indicator

design of the switching contactwith slotted blade contacts for M10 screw fixing. mounting dimension: 110 mm. or for installation in LV HRC fuse bases or switch disconnectors

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH2

operating class of the fuse linkaR

varying load factor (WL)0.9

type of voltage of the operating voltageAC

operating voltage at AC according to UL rated value750 V

Supply voltage

at AC750 V

Breaking Capacity

according to IEC 60947-2 rated value100 kA

Dissipation

power loss [W]70 W

for rated value of the current at AC in hot operating state per pole70 W

maximum70 W

Product details

product descriptionwith blade contacts, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight810 g

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 9

Genuine accessories that can be used with the Siemens 3NE4333-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3KF5380-0MF51	Uyumlu ürün
3NJ4141-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4141-3BF11	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3BF11	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3BJ01	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3BT01	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3CF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3CF11	Uyumlu ürün · Fuse switch disconnectors
