How can I get a price quote for Siemens 3NH5473?

You can request a fast quote for Siemens 3NH5473 from Yılsa Engineering. Reference part number YLS7YJT6O1DFJSK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NH5473 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NH5473 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NH5473?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

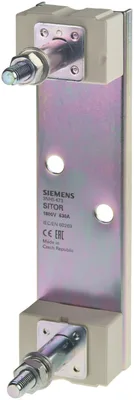

Siemens 3NH5473

SITOR fuse holder 630 A 1800 V 1-pole with bolt terminal with fixing dimension 170 mm

SiemensMFR # 3NH5473SKU # YLS7YJT6O1DFJSK

product brand nameSENTRON

product designationSITOR fuse holder

design of the productLV HRC fuse base for screw fixing

number of poles1

utilization categoryWithout

at AC1 800 V

Have questions?Chat on WhatsApp

About This Product

SITOR fuse holder 630 A 1800 V 1-pole with bolt terminal with fixing dimension 170 mm

Siemens 3NH5473

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse holder

design of the productLV HRC fuse base for screw fixing

design of the thread of the connection screwM10

General technical data

number of poles1

utilization categoryWithout

Supply voltage

at AC1 800 V

at DC1 800 V

Product details

product component swivel-in mechanismNo

Connections

tightening torque with screw-type terminals maximum20 N·m

type of electrical connectionfor mounting on mounting plate

for main current circuitStud terminal

Mechanical Design

height211 mm

width55 mm

fastening methodfixed mounting

fastening method bus-mountingNo

Net Weight701 g

Accessories 23

Genuine accessories that can be used with the Siemens 3NH5473 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NX1013	Aksesuar · NH fuse system
3NX1014	Aksesuar · NH fuse system
3NE5643-0C	Seçmeli zorunlu ürün
3NE5633-0C	Seçmeli zorunlu ürün
3NE5627-0C	Seçmeli zorunlu ürün
3NE5336-0MK66	Seçmeli zorunlu ürün
3NE5336-0MK06	Seçmeli zorunlu ürün
3NE5334-0MK06	Seçmeli zorunlu ürün
3NE5332-0MK06	Seçmeli zorunlu ürün
3NE5330-0MK06	Seçmeli zorunlu ürün
3NE5327-0MK06	Seçmeli zorunlu ürün
3NE5324-0MK06	Seçmeli zorunlu ürün
3NE5322-0MK06	Seçmeli zorunlu ürün
3NE5321-0MK06	Seçmeli zorunlu ürün
3NE5320-0MK06	Seçmeli zorunlu ürün
3NE5318-0MK06	Seçmeli zorunlu ürün
3NE5318	Seçmeli zorunlu ürün
3NE5317-0MK06	Seçmeli zorunlu ürün
3NE5302-0MK06	Seçmeli zorunlu ürün
3NE5325-0MK06	Seçmeli zorunlu ürün
3NE5627	Seçmeli zorunlu ürün
3NE5633	Seçmeli zorunlu ürün
3NE5643	Seçmeli zorunlu ürün
