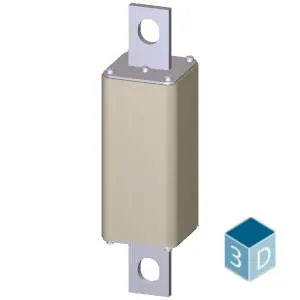

Siemens 3NE5336-0MK66

SITOR fuse link, with slotted blade contacts, NH2, In: 630 A, aR, Un AC: 1500 V, Un DC: 1000 V, without Indicator

SiemensMFR # 3NE5336-0MK66SKU # CEY-8EF3B0395230

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorWithout indicator

design of the fuse linkSITOR, LV HRC design

operating class of the fuse linkaR

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with slotted blade contacts, NH2, In: 630 A, aR, Un AC: 1500 V, Un DC: 1000 V, without Indicator

Siemens 3NE5336-0MK66

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorWithout indicator

design of the switching contactwith slotted knife blade contacts for screw mounting. mounting dimensions: 190 mm

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH2

operating class of the fuse linkaR

type of voltage of the operating voltageAC/DC

Supply voltage

at AC1 500 V

at DC1 000 V

Breaking Capacity

at DC according to IEC 60947-2 rated value45 kA

according to IEC 60947-2 rated value30 kA

Dissipation

power loss [W]163 W

for rated value of the current at AC in hot operating state per pole163 W

maximum163 W

Product details

product descriptionwith bolt-on links, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight1.43 kg

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity
