How can I get a price quote for Siemens 3NE5318-0MK06?

You can request a fast quote for Siemens 3NE5318-0MK06 from Yılsa Engineering. Reference part number CEY-8EF3B039523B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NE5318-0MK06 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NE5318-0MK06 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NE5318-0MK06?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

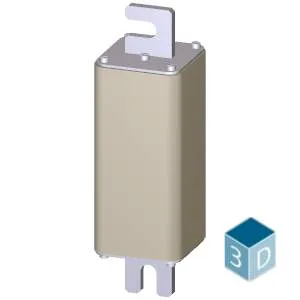

Siemens 3NE5318-0MK06

SITOR fuse link, with slotted blade contacts, NH2, In: 63 A, gR, Un AC: 1500 V, Un DC: 1000 V, without Indicator

SiemensMFR # 3NE5318-0MK06SKU # CEY-8EF3B039523B

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorWithout indicator

design of the fuse linkSITOR, LV HRC design

operating class of the fuse linkgR

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with slotted blade contacts, NH2, In: 63 A, gR, Un AC: 1500 V, Un DC: 1000 V, without Indicator

Siemens 3NE5318-0MK06

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorWithout indicator

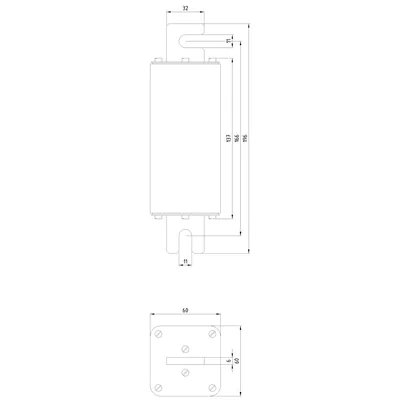

design of the switching contactwith slotted knife blade contacts for screw mounting. mounting dimensions: 170 mm

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH2

operating class of the fuse linkgR

type of voltage of the operating voltageAC/DC

Supply voltage

at AC1 500 V

at DC1 000 V

Breaking Capacity

at DC according to IEC 60947-2 rated value45 kA

according to IEC 60947-2 rated value30 kA

Dissipation

power loss [W]34 W

for rated value of the current at AC in hot operating state per pole34 W

maximum34 W

Product details

product descriptionwith bolt-on links, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight1.363 kg

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 5

Genuine accessories that can be used with the Siemens 3NE5318-0MK06 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NH1330	Uyumlu ürün · LV HRC fuse system
3NH2330	Uyumlu ürün · LV HRC fuse system
3NH6320	Uyumlu ürün · LV HRC fuse system
3NH6330	Uyumlu ürün · LV HRC fuse system
3NH5473	Seçmeli zorunlu ürün · LV HRC fuse system
