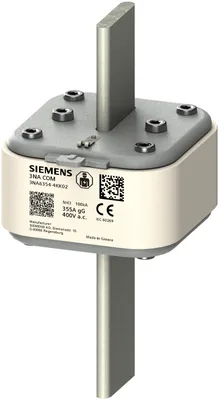

Siemens 3NA6354-4KK02

3NA6 COM LV HRC fuse link with measuring function with wireless communication frame size 3 355A Un 400V operational class gG without electronic module non-insulated grip lugs front indicator only compatible with 3NX8302

SiemensMFR # 3NA6354-4KK02SKU # YLSTILRE3KV2KC

product brand nameSENTRON

product designationLV HRC fuse link

design of the productWith metering function

design of an identification indicatorFront indicators

design of the switching contactNon-corroding, silver-plated

design of the fuse linkLV HRC fuse link

Have questions?Chat on WhatsApp

About This Product

Siemens 3NA6354-4KK02

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationLV HRC fuse link

design of the productWith metering function

design of an identification indicatorFront indicators

design of the switching contactNon-corroding, silver-plated

design of the fuse linkLV HRC fuse link

General technical data

size of fuse system according to EN 60269-1NH3

operating class of the fuse linkgG

mounting typenon-insulated grip lugs

type of voltage of the operating voltageAC

operational current at AC rated value355 A

at AC400 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

breaking capacity at AC according to IEC 60269 rated value100 kA

Dissipation

power loss [W]22.15 W

Mechanical Design

mounting positionAny, preferably vertical

Net Weight890 g

Environmental conditions

minimum-5 °C

maximum40 °C

ambient temperature during storage minimum-10 °C

environmental category'-20 to +50 at 95% relative humidity

Certificates

reference code according to IEC 81346-2FC

Accessories 12

Genuine accessories that can be used with the Siemens 3NA6354-4KK02 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3KF9010-1AA00	Aksesuar
3NX1024	Aksesuar · NH fuse system
3NX1021	Aksesuar · NH fuse system
3NA6354-4KK01	Uyumlu ürün
3NH1430	Seçmeli zorunlu ürün · LV HRC fuse system
3NH6420	Seçmeli zorunlu ürün · LV HRC fuse system
3NH6430	Seçmeli zorunlu ürün · LV HRC fuse system
3NP5460-0HA13	Seçmeli zorunlu ürün
3NP5460-0EA86	Seçmeli zorunlu ürün
3NP5460-0EA26	Seçmeli zorunlu ürün
3NP5460-0CA10	Seçmeli zorunlu ürün
3NP5460-0CA00	Seçmeli zorunlu ürün
