How can I get a price quote for Siemens 3NP5460-0CA00?

You can request a fast quote for Siemens 3NP5460-0CA00 from Yılsa Engineering. Reference part number CEY-8EF3B031CB3E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NP5460-0CA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NP5460-0CA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NP5460-0CA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

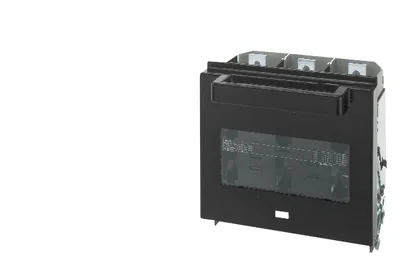

Siemens 3NP5460-0CA00

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH3, 630 A, for assembly and installation on mounting plate, with High-speed closing, screw terminal

SiemensMFR # 3NP5460-0CA00SKU # CEY-8EF3B031CB3E

product brand nameSENTRON

product designation3NP5 fuse switch disconnector

design of the actuating elementCover handle

design of the load switch strip formNo

number of poles3

size of disconnecting linkNH2, NH3

Have questions?Chat on WhatsApp

About This Product

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH3, 630 A, for assembly and installation on mounting plate, with High-speed closing, screw terminal

Siemens 3NP5460-0CA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation3NP5 fuse switch disconnector

design of the actuating elementCover handle

design of the load switch strip formNo

General technical data

number of poles3

size of disconnecting linkNH2, NH3

size of fuse linkNH2, NH3

mounting typeFixed mounting

fuse systemLV HRC fuse

Voltage

insulation voltage rated value690 V

surge voltage resistance rated value6 kV

at AC rated value maximum690 V

at DC rated value440 V

Protection class

protection class IP on the frontIP00

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole13 W

Main circuit

operational current rated value630 A

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

Product function

product function fuse monitoringNo

Short circuit

maximum short-circuit current breaking capacity (Icu) at 400 V rated value5.04 kA

Connections

type of electrical connection1x6 - 240 mm² to 2x6 - 240 mm²

for main current circuitscrew-type terminals

Mechanical Design

height300 mm

width276 mm

depth207 mm

fastening methodMounting plate

floor mountingYes

rail mountingNo

Net Weight7.619 kg

Environmental conditions

installation altitude at height above sea level maximum2 000 m

minimum-25 °C

maximum55 °C

minimum-50 °C

maximum80 °C

Accessories 23

Genuine accessories that can be used with the Siemens 3NP5460-0CA00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3TX6546-3B	Aksesuar · Terminal covers · terminal covers
3NY4012	Aksesuar
3NY1245	Aksesuar
3NY3034	Aksesuar
3NY1104	Aksesuar
3NY1212	Aksesuar
3NY1373	Aksesuar
3NA6354-4KK02	Seçmeli zorunlu ürün
3NA6360-4KK02	Seçmeli zorunlu ürün
3NA3365-0MJ	Seçmeli zorunlu ürün
3ND2360	Seçmeli zorunlu ürün
3ND2354	Seçmeli zorunlu ürün
3ND1365	Seçmeli zorunlu ürün
3NA3365-6	Seçmeli zorunlu ürün
3NA3365	Seçmeli zorunlu ürün
3NA3362-6	Seçmeli zorunlu ürün
3NA3362	Seçmeli zorunlu ürün
3NA3360-6	Seçmeli zorunlu ürün
3NA3360	Seçmeli zorunlu ürün
3NA3354	Seçmeli zorunlu ürün
3NA3354-6	Seçmeli zorunlu ürün
3NA6354-4KK01	Seçmeli zorunlu ürün
3NA6360-4KK01	Seçmeli zorunlu ürün
