How can I get a price quote for Siemens 3LD5200-0TL11?

You can request a fast quote for Siemens 3LD5200-0TL11 from Yılsa Engineering. Reference part number YLSNBT6USXGIKE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3LD5200-0TL11 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3LD5200-0TL11 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3LD5200-0TL11?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

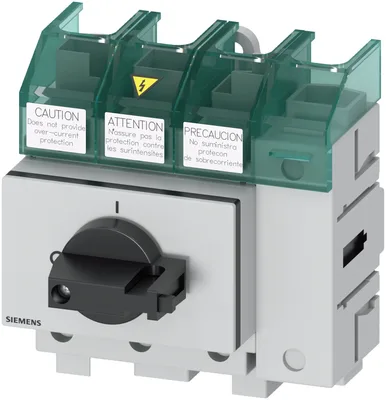

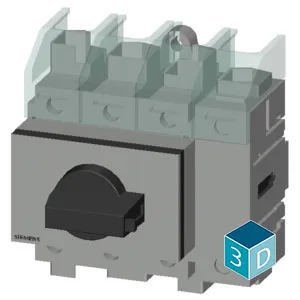

Siemens 3LD5200-0TL11

SENTRON 3LD5 switch disconnector UL, main switch, 4-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 60 A, SCCR 50 kA at 480 V AC, operational power @ 480 V AC 3-phase: 40 hp, IEC: 63 A, operational power at AC-23 A at 400 V: 30 kW, floor mounting with direct operating mechanism, black including terminal covers for the infeed side for the infeed side

SiemensMFR # 3LD5200-0TL11SKU # YLSNBT6USXGIKE

product brand nameSENTRON

product designationSwitch disconnector

design of the productMain switch

type of switchFloor mounting with direct drive

design of the actuating elementselector switch

color of the actuating elementblack

Have questions?Chat on WhatsApp

About This Product

Siemens 3LD5200-0TL11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSwitch disconnector

design of the productMain switch

display version for switch position indicator manual operation1 ON - 0 OFF

type of switchFloor mounting with direct drive

design of the actuating elementselector switch

color of the actuating elementblack

design of handleknob-operated mechanism, black

type of the driving mechanism motor driveNo

General technical data

number of poles4

size of switch disconnector2

mechanical service life (operating cycles) typical100 000

at AC-23 A at 690 V6 000

operating frequency maximum50 1/h

degree of pollution3

Voltage

insulation voltage rated value690 V

surge voltage resistance rated value6 kV

at AC rated value690 V

minimum50 Hz

maximum60 Hz

Protection class

protection class IPIP00

protection class IP on the frontIP00

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.7 W

Main circuit

at AC-21 at 690 V rated value63 A

at AC-21 A at 240 V rated value63 A

at AC-21 A at 400 V rated value63 A

at AC-21 A at 440 V rated value63 A

at AC-23 A at 400 V rated value63 A

at AC-23 A at 240 V rated value18.5 kW

at AC-23 A at 400 V rated value30 kW

at AC-23 A at 440 V rated value30 kW

at AC-23 A at 690 V rated value37 kW

at AC-3 at 240 V rated value18.5 kW

at AC-3 at 400 V rated value30 kW

at AC-3 at 690 V rated value30 kW

Auxiliary circuit

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

operating voltage of auxiliary contacts at AC maximum500 V

continuous current of the auxiliary contact rated value10 A

insulation voltage of the auxiliary switch rated value500 V

Suitability

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

Product details

product feature can be locked into OFF positionYes

Accessories

motor driveNo

voltage triggerNo

number of connectable NC contacts for auxiliary contacts attachable maximum1

number of connectable NO contacts for auxiliary contacts attachable maximum2

number of connectable CO contacts for auxiliary contacts attachable maximum0

number of bracket locks maximum1

hasp thickness of the bracket locks4 ... 6 mm

Short circuit

at 440 V by gG fuse rated value50 kA

at 690 V by gG fuse rated value50 kA

at 240 V for combination switch + gG fuse maximum8 kA

at 440 V for combination switch + gG fuse maximum8 kA

at 690 V for combination switch + gG fuse maximum permissible7 kA

at 240 V for combination switch + gG fuse maximum30 kA²·s

at 440 V for combination switch + gG fuse maximum30 kA²·s

at 690 V for combination switch + gG fuse maximum24 kA²·s

for short-circuit protection of the main circuit requiredfuse gL/gG: 63 A

for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

operational current of upstream fuse rated value63 A

according UL

operational current at AC according to UL 489/UL 60947-4-1 rated value60 A

operational current at AC according to UL 508/UL 60947-4-1 rated value60 A

operating voltage at AC at 50/60 Hz according to UL 489 rated value480 V

operating voltage at AC at 50/60 Hz according to UL 508/UL 60947-4-1 rated value480 V

active power [hp] at AC at 480 V according to UL 508/UL 60947-4-1 rated value30

short-time withstand current (SCCR) at 480 V according to UL 508/UL 60947-4-1 and UL 48950 kA

continuous current of upstream fuse according to UL rated value60 A

type of fuse according to ULClass J

Connections

minimum12

maximum1

minimum10

maximum4

solid1x (4...50mm²)

finely stranded with core end processing1x (4...35mm²)

stranded1x (4...50mm²)

solid2x (0.75 ... 2.5 mm²), 1x 4 mm²

finely stranded with core end processing2x (0.75 ... 1.5 mm²), 1x 2.5 mm²

stranded2x (0.75 ... 2.5 mm²), 1x 4 mm²

for main current circuitbox terminal

for auxiliary contactsconnection terminals

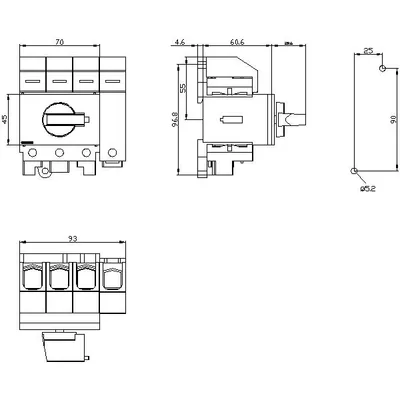

Mechanical Design

height106 mm

width93 mm

depth95 mm

type of devicefixed mounting

fastening methodBuilt-in unit fixed-mounted version

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingYes

Net Weight513 g

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-25 °C

maximum55 °C

Accessories 7

Genuine accessories that can be used with the Siemens 3LD5200-0TL11 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3LD9200-5C	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-5CF	Aksesuar · Main and EMERGENCY OFF switch
3LD9280-0C	Aksesuar · Main and EMERGENCY OFF switch
3LD9280-2C	Aksesuar · Main and EMERGENCY OFF switch
8UD1771-2AD01	Bileşen
3LD9284-1B	Bileşen · Main and EMERGENCY OFF switch
3LD9287-1C	Seçmeli zorunlu ürün · Main and EMERGENCY OFF switch
