How can I get a price quote for Siemens 8UD1771-2AD01?

You can request a fast quote for Siemens 8UD1771-2AD01 from Yılsa Engineering. Reference part number CEY-8EF3B037D82C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8UD1771-2AD01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8UD1771-2AD01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8UD1771-2AD01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

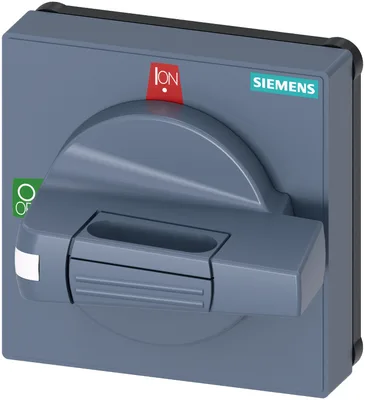

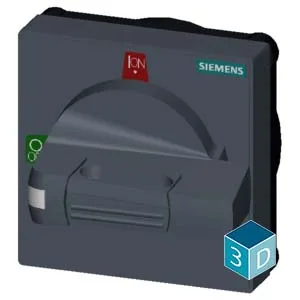

Siemens 8UD1771-2AD01

Handle with masking frame standard Size 75x 75, for shaft 6x6 and 8x 8, 0-I, Handle size 45 mm Accessory for 3KD size 1 and 2, 3KF size 1, 3LD5 UL

SiemensMFR # 8UD1771-2AD01SKU # CEY-8EF3B037D82C

product brand nameSENTRON

product designationhandle with masking plate

design of the productstandard

design of handleGray

design of the door lock systemDoor interlocking

length of handle45 mm

Have questions?Chat on WhatsApp

About This Product

Handle with masking frame standard Size 75x 75, for shaft 6x6 and 8x 8, 0-I, Handle size 45 mm Accessory for 3KD size 1 and 2, 3KF size 1, 3LD5 UL

Siemens 8UD1771-2AD01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationhandle with masking plate

design of the productstandard

design of handleGray

design of the door lock systemDoor interlocking

size of cross-section of the shaft of door-coupling rotary operating mechanism8x8 mm

size format of the masking frame of door-coupling rotary operating mechanism75x 75 mm

length of handle45 mm

protection class IPIP65

suitability for usefor 3KD size 1 and 2, 3KF size 1

Product details

product descriptionwithout lighting

product feature interlockYes

extension shaftNo

handle for emergency-OFF functionNo

product feature lockableYes

Accessories

accessoriesHandle with masking frame

display version for switch position indicator0-I

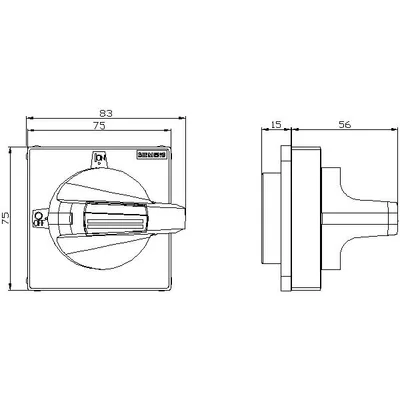

Mechanical Design

height84 mm

width84 mm

depth80 mm

Net Weight169 g

Accessories 4

Genuine accessories that can be used with the Siemens 8UD1771-2AD01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
