How can I get a price quote for Siemens 3LD9200-5C?

You can request a fast quote for Siemens 3LD9200-5C from Yılsa Engineering. Reference part number CEY-8EF3B032C19F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3LD9200-5C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3LD9200-5C genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3LD9200-5C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

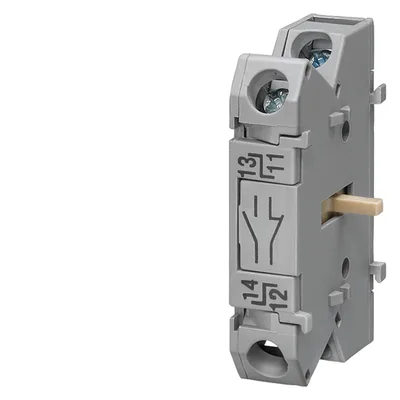

Siemens 3LD9200-5C

Auxiliary switch, 1 NO+1 NC, accessories for main and emergency switching-off 3LD2 switch floor mounting, installation in distribution boards, molded-plastic encapsulation and for molded case switch 3LD5 UL floor mounting

SiemensMFR # 3LD9200-5CSKU # CEY-8EF3B032C19F

product brand nameSENTRON

product designationauxiliary switch

at AC-15 at 110 V rated value6 A

at AC-15 at 230 V rated value3 A

at AC-15 at 500 V rated value1.4 A

at DC-13 at 24 V rated value4 A

Have questions?Chat on WhatsApp

About This Product

Siemens 3LD9200-5C

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationauxiliary switch

design of the productaccessories for 3LD2 main and EMERGENCY-OFF switches, floor mounting, installation in distribution boards, molded-plastic enclosure

at AC-15 at 110 V rated value6 A

at AC-15 at 230 V rated value3 A

at AC-15 at 500 V rated value1.4 A

at DC-13 at 24 V rated value4 A

suitability for usefor 3LD2 floor mounting, distribution board mounting, in the enclosure, with EMC shield plate and for 3LD5 UL floor mounting

special product featureNO: lagging during switching ON, leading during switching OFF the 3LD switch. NC: leading during switching ON, lagging during switching OFF the 3LD switch

Accessories

accessoriesauxiliary switch, 1 NO + 1 NC

minimum0.8 N·m

maximum1.2 N·m

solid2x (0.75-2.5 mm²), 1x 4 mm²

finely stranded with core end processing2x (0.75-2.5 mm²), 1x 4 mm²

stranded2x (0.75-2.5 mm²), 1x 4 mm²

Mechanical Design

Net Weight24.5 g

Accessories 20

Genuine accessories that can be used with the Siemens 3LD9200-5C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3LD5200-0TK11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5800-0TL13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5400-0TL13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5400-0TK13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5000-0TL13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5000-0TK13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5000-0TL11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5000-0TK11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5400-0TK11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5200-0TL11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5400-0TL11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5200-0TK13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5200-0TL13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5800-0TL11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5800-0TK13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5800-0TK11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5600-0TL13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5600-0TL11	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5600-0TK13	Uyumlu ürün · Main and EMERGENCY OFF switch
3LD5600-0TK11	Uyumlu ürün · Main and EMERGENCY OFF switch
