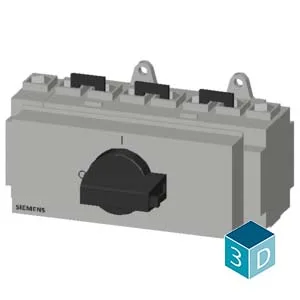

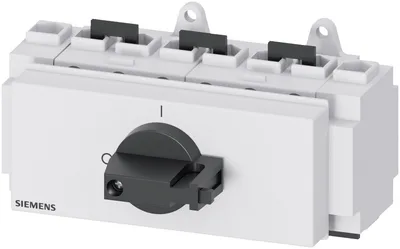

Siemens 3LD2230-8VQ11-0AF6

SENTRON, switch disconnector 3LD, DC switch, 2-pole, Iu: 32 A, operational current / at DC-21 A at 800 V: 32 A, installation in distribution boards, knob-operated mechanism, black, handle direct at the switch

SiemensMFR # 3LD2230-8VQ11-0AF6SKU # CEY-8EF3B02FC612

product brand nameSENTRON

product designationSwitch disconnector

design of the productDC switch

type of switchDIN-rail mounting

design of the actuating elementselector switch

color of the actuating elementblack

Have questions?Chat on WhatsApp

About This Product

Siemens 3LD2230-8VQ11-0AF6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSwitch disconnector

design of the productDC switch

display version for switch position indicator manual operation1 ON - 0 OFF

type of switchDIN-rail mounting

design of the actuating elementselector switch

color of the actuating elementblack

design of handleknob-operated mechanism, black

type of the driving mechanism motor driveNo

General technical data

number of poles2

size of switch disconnector2

mechanical service life (operating cycles) typical10 000

operating frequency maximum120 1/h

degree of pollution3

Voltage

insulation voltage rated value800 V

surge voltage resistance rated value6 kV

at DC rated value800 V

Protection class

protection class IPIP10

protection class IP on the frontIP40

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.98 W

Auxiliary circuit

operating voltage of auxiliary contacts at AC maximum500 V

continuous current of the auxiliary contact rated value10 A

insulation voltage of the auxiliary switch rated value500 V

Suitability

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

Product details

product feature can be locked into OFF positionYes

Accessories

motor driveNo

voltage triggerNo

number of connectable NC contacts for auxiliary contacts attachable maximum2

number of connectable NO contacts for auxiliary contacts attachable maximum4

number of connectable CO contacts for auxiliary contacts attachable maximum0

number of bracket locks maximum2

hasp thickness of the bracket locks4 ... 6 mm

Short circuit

for short-circuit protection of the main circuit requiredfuse gR/aR: 80 A

for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

operational current of upstream fuse rated value80 A

Connections

solid1x (1,5...16mm²)

finely stranded with core end processing1x (1,5...10mm²)

stranded1x (1,5...16mm²)

solid2x (0.75 ... 2.5 mm²), 1x 4 mm²

finely stranded with core end processing2x (0.75 ... 1.5 mm²), 1x 2.5 mm²

stranded2x (0.75 ... 2.5 mm²), 1x 4 mm²

for main current circuitbox terminal

for auxiliary contactsconnection terminals

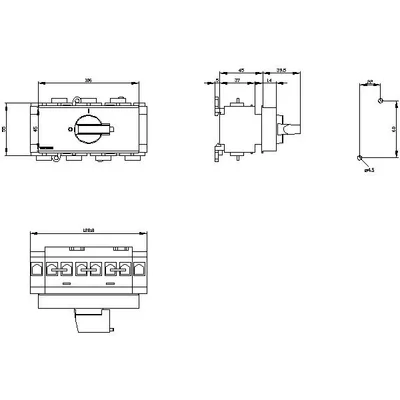

Mechanical Design

height128 mm

width98 mm

depth129 mm

type of devicefixed mounting

fastening methodBuilt-in unit fixed-mounted version

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingYes

Net Weight408 g

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-25 °C

maximum55 °C

Accessories 8

Genuine accessories that can be used with the Siemens 3LD2230-8VQ11-0AF6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3LD9280-5D	Aksesuar · Main and EMERGENCY OFF switch
3LD9280-5DF	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-5C	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-5CF	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-6C	Aksesuar · Main and EMERGENCY OFF switch
3LD9240-5D	Aksesuar · Main and EMERGENCY OFF switch
3LD9240-5DF	Aksesuar · Main and EMERGENCY OFF switch
8WH1000-0AF00	Aksesuar
