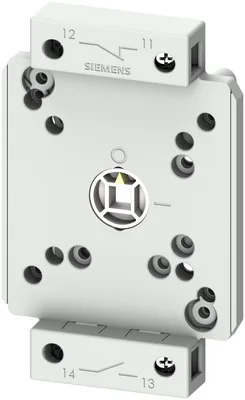

Siemens 3LD9280-5DF

Auxiliary switch, 1NO+1NC 20-150ms leading, with gold-plated contacts, four-hole front mounting, for floor mounting and encapsulated switches, for 16 - 125A, accessory for main and emergency off switch 3LD2 and for repair and maintenance switch 3LD2 with EMC plate

SiemensMFR # 3LD9280-5DFSKU # YLS0VX96GMA1FZH

product brand nameSENTRON

product designationAuxiliary switch, leading

at AC-15 at 110 V rated value6 A

at AC-15 at 230 V rated value3 A

at AC-15 at 500 V rated value1.5 A

at DC-13 at 24 V rated value1 A

Have questions?Chat on WhatsApp

About This Product

Siemens 3LD9280-5DF

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationAuxiliary switch, leading

design of the productaccessories for 3LD2 main and EMERGENCY-OFF switches, 3LD2 maintenance and repair switches with EMC shield plate

at AC-15 at 110 V rated value6 A

at AC-15 at 230 V rated value3 A

at AC-15 at 500 V rated value1.5 A

at DC-13 at 24 V rated value1 A

suitability for usefor 3LD2 16 A - 125 A floor mounting, in the housing, with EMC shield plate and for 3LD5 UL 30 A - 60 A floor mounting, for four-hole front mounting

special product featureNO: lagging during switching ON, leading (20 … 150 ms) during switching OFF the 3LD switch. NC: leading during switching ON, lagging during switching OFF the 3LD switch

Accessories

accessoriesfront auxiliary switch, 1 NO + 1 NC, with gold-plated contacts

minimum1.1 N·m

maximum1.1 N·m

solid1x (0.75 ... 2.5 mm²)

finely stranded with core end processing1x (0.75 ... 2.5 mm²)

stranded1x (0.75 ... 2.5 mm²)

Mechanical Design

Net Weight97 g
