How can I get a price quote for Siemens 3LD2230-0TK13?

You can request a fast quote for Siemens 3LD2230-0TK13 from Yılsa Engineering. Reference part number CEY-8EF3B0331D40. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3LD2230-0TK13 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3LD2230-0TK13 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3LD2230-0TK13?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

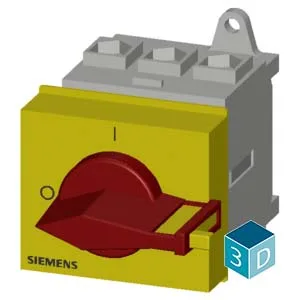

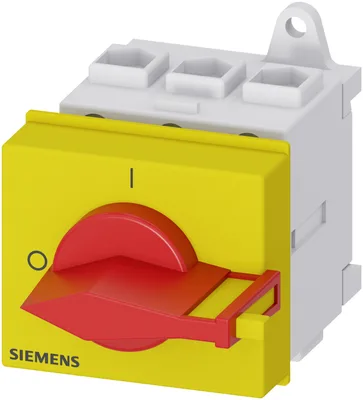

Siemens 3LD2230-0TK13

SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu: 32 A, operating power / at AC-23 A 400 V: 11.5 kW, installation in distribution boards, knob-operated mechanism, Red / yellow, handle direct at the switch

SiemensMFR # 3LD2230-0TK13SKU # CEY-8EF3B0331D40

product brand nameSENTRON

product designationSwitch disconnector

design of the productEMERGENCY-OFF switch

type of switchDIN-rail mounting

design of the actuating elementselector switch

color of the actuating elementred

Have questions?Chat on WhatsApp

About This Product

Siemens 3LD2230-0TK13

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSwitch disconnector

design of the productEMERGENCY-OFF switch

display version for switch position indicator manual operation1 ON - 0 OFF

type of switchDIN-rail mounting

design of the actuating elementselector switch

color of the actuating elementred

design of handleknob-operated mechanism, red/yellow

type of the driving mechanism motor driveNo

General technical data

number of poles3

size of switch disconnector2

mechanical service life (operating cycles) typical100 000

at AC-23 A at 690 V6 000

operating frequency maximum50 1/h

degree of pollution3

Voltage

insulation voltage rated value690 V

surge voltage resistance rated value6 kV

at AC rated value690 V

minimum50 Hz

maximum60 Hz

Protection class

protection class IPIP40

protection class IP on the frontIP40

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.98 W

Main circuit

at AC-21 at 690 V rated value32 A

at AC-21 A at 240 V rated value32 A

at AC-21 A at 400 V rated value32 A

at AC-21 A at 440 V rated value32 A

at AC-23 A at 400 V rated value22 A

at AC-23 A at 240 V rated value6 kW

at AC-23 A at 400 V rated value12 kW

at AC-23 A at 440 V rated value11.5 kW

at AC-23 A at 690 V rated value12 kW

at AC-3 at 240 V rated value5.5 kW

at AC-3 at 400 V rated value10 kW

at AC-3 at 690 V rated value9.5 kW

Auxiliary circuit

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

operating voltage of auxiliary contacts at AC maximum500 V

continuous current of the auxiliary contact rated value10 A

insulation voltage of the auxiliary switch rated value500 V

Suitability

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchYes

suitability for use maintenance/repair switchYes

Product details

product feature can be locked into OFF positionYes

Accessories

motor driveNo

voltage triggerNo

number of connectable NC contacts for auxiliary contacts attachable maximum2

number of connectable NO contacts for auxiliary contacts attachable maximum4

number of connectable CO contacts for auxiliary contacts attachable maximum0

number of bracket locks maximum2

hasp thickness of the bracket locks4 ... 6 mm

Short circuit

at 690 V by gG fuse rated value50 kA

at 240 V for combination switch + gG fuse maximum4.5 kA

at 440 V for combination switch + gG fuse maximum4.5 kA

at 690 V for combination switch + gG fuse maximum permissible5 kA

at 240 V for combination switch + gG fuse maximum9 kA²·s

at 440 V for combination switch + gG fuse maximum9 kA²·s

at 690 V for combination switch + gG fuse maximum9 kA²·s

for short-circuit protection of the main circuit requiredfuse gL/gG: 40 A

for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

operational current of upstream fuse rated value40 A

according UL

operational current at AC according to UL 508/UL 60947-4-1 rated value32 A

operating voltage at AC at 50/60 Hz according to UL 508/UL 60947-4-1 rated value600 V

active power [hp] at AC at 480 V according to UL 508/UL 60947-4-1 rated value20

active power [hp] at AC at 600 V according to UL 508/UL 60947-4-1 rated value20

short-time withstand current (SCCR) at 600 V according to UL 508/UL 60947-4-15 kA

continuous current of upstream fuse according to UL rated value80 A

type of fuse according to ULRK5

Connections

solid1x (1,5...16mm²)

finely stranded with core end processing1x (1,5...10mm²)

stranded1x (1,5...16mm²)

solid2x (0.75 ... 2.5 mm²), 1x 4 mm²

finely stranded with core end processing2x (0.75 ... 1.5 mm²), 1x 2.5 mm²

stranded2x (0.75 ... 2.5 mm²), 1x 4 mm²

for main current circuitbox terminal

for auxiliary contactsconnection terminals

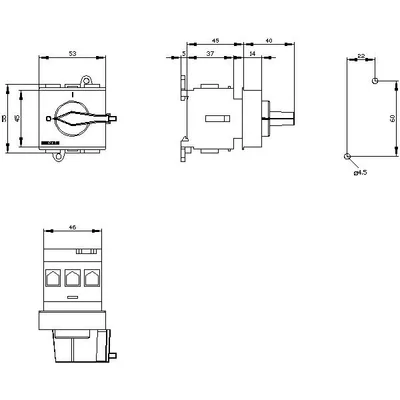

Mechanical Design

height55 mm

width53 mm

depth91 mm

type of devicefixed mounting

fastening methodBuilt-in unit fixed-mounted version

4-hole front mountingNo

front mounting with central attachmentNo

rail mountingYes

Net Weight168.5 g

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-25 °C

maximum55 °C

Accessories 9

Genuine accessories that can be used with the Siemens 3LD2230-0TK13 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3LD9280-5D	Aksesuar · Main and EMERGENCY OFF switch
3LD9280-5DF	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-5C	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-5CF	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-6C	Aksesuar · Main and EMERGENCY OFF switch
3LD9240-5D	Aksesuar · Main and EMERGENCY OFF switch
3LD9240-5DF	Aksesuar · Main and EMERGENCY OFF switch
8WH1000-0AF00	Aksesuar
3LD9221-0A	Aksesuar · Main and EMERGENCY OFF switch
