How can I get a price quote for FESTO VZXF-L-M22C-M-B-G1-230-H3B1-50-10?

You can request a fast quote for FESTO VZXF-L-M22C-M-B-G1-230-H3B1-50-10 from Yılsa Engineering. Reference part number CEY-937FC781BBDC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VZXF-L-M22C-M-B-G1-230-H3B1-50-10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VZXF-L-M22C-M-B-G1-230-H3B1-50-10 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VZXF-L-M22C-M-B-G1-230-H3B1-50-10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

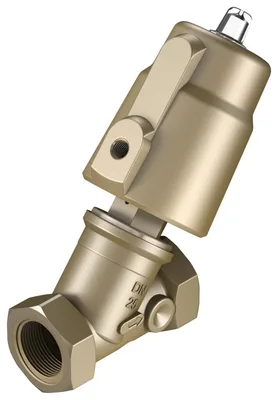

FESTO VZXF-L-M22C-M-B-G1-230-H3B1-50-10

Angle seat valve. Sturdy design. Stainless steel and gunmetal process valves with stainless steel, brass or aluminium actuators. Different actuator sizes and housing materials. Selection of different seat and shaft seals. For liquids, gases and other easily contaminated media. Easy-to-clean design

FESTOMFR # VZXF-L-M22C-M-B-G1-230-H3B1-50-10SKU # CEY-937FC781BBDC

DesignPoppet valve with piston drive

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Line connectionThreaded coupling G1 to DIN ISO 228

Have questions?Chat on WhatsApp

About This Product

FESTO VZXF-L-M22C-M-B-G1-230-H3B1-50-10

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignPoppet valve with piston drive

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Line connectionThreaded coupling G1 to DIN ISO 228

Nominal size23

Valve function2/2-way, single solenoid, closed

Flow directionNon-reversible

Medium pressure0, 1

Medium pressure0, 10

Nominal pressure PN16

Exhaust-air functionCannot be throttled

Type of resetMechanical spring

Type of pilotingExternally actuated

Pneumatic connectionFemale thread G1/8

Operating pressure0.6, 1

Operating pressure6, 10

Operating pressure87, 145

Symbol00991367

MediumVapour, Mineral oil-based hydraulic fluid, Inert gases, Mineral oil, Water, Filtered compressed air, grade of filtration 200 µm, Neutral fluids

Direction of flowBelow valve seat, for gaseous and liquid media

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Max. viscosity600

Media temperature-10, 80

Ambient temperature-10, 60

Flow rate Kv9.6

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material process valve housingRed brass

Material number process valve housingCC499K

Material spindle sealNBR

Material seat sealPTFE

Product weight1500

Corrosion resistance class CRC1 - Low corrosion stress

Material drive housingBrass

Accessories 9

Genuine accessories that can be used with the FESTO VZXF-L-M22C-M-B-G1-230-H3B1-50-10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-8X1,25-NT	Plastic tubing · Tubes
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
QSL-G1/8-8	Push-in L-fitting · Fittings
QS-G1/8-8	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Push-in fittings
VOFX-LT-M32C-MY-G18-SG18-1B2	Pilot valve · Valves
VOFX-LT-M32C-MY-G18-SG18-3AA1	Pilot valve · Valves
