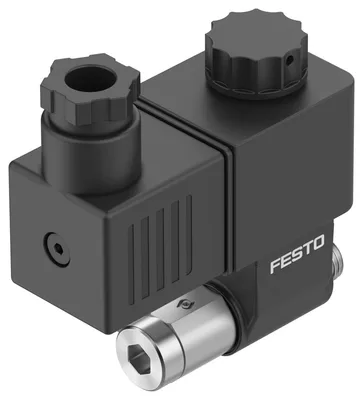

Festo VOFX-LT-M32C-MY-G18-SG18-3AA1

Pilot valve. For angle seat valves VZXF and VZXA. For use wherever valve terminals are not economically or technically viable. Manual override, detenting

FestoMFR # VOFX-LT-M32C-MY-G18-SG18-3AA1SKU # YLSCDBSIS1YR79E

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width22

pneumatic working portG1/8

Operating voltage230V AC

Operating pressure-0.09, 0.8

Have questions?Chat on WhatsApp

About This Product

Pilot valve. For angle seat valves VZXF and VZXA. For use wherever valve terminals are not economically or technically viable. Manual override, detenting

Festo VOFX-LT-M32C-MY-G18-SG18-3AA1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width22

Standard nominal flow rate (standardised to DIN 1343)50

pneumatic working portG1/8

Operating voltage230V AC

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignDirectly actuated poppet valve

Type of resetMechanical spring

Degree of protectionIP65

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

Nominal size1.3

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting

Type of pilotingDirect

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991135

Duty cycle100%

Insulation material classF

Characteristic coil data230 V AC: 50 Hz, pick-up power 6.2 VA, holding power 3.7 VA, 230 V AC: 60 Hz, pick-up power 4.9 VA, holding power 2.9 VA

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-10, 50

Product weight160

Electrical connection3-pin, Type B, Plug, To EN 175301-803

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3M5

Note on materialsRoHS compliant

Material sealsNBR

Material housingPA

Material solenoid coilCopper
