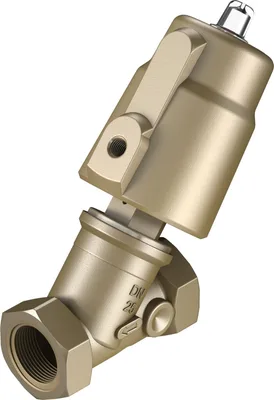

FESTO VZXF-L-M22C-M-A-N1-230-H3B1-50-16

Angle seat valve. Sturdy design. Stainless steel and gunmetal process valves with stainless steel, brass or aluminium actuators. Different actuator sizes and housing materials. Selection of different seat and shaft seals. For liquids, gases and other easily contaminated media. Easy-to-clean design

FESTOMFR # VZXF-L-M22C-M-A-N1-230-H3B1-50-16SKU # CEY-937FC781BBBD

DesignPoppet valve with piston drive

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Nominal size23

Have questions?Chat on WhatsApp

About This Product

FESTO VZXF-L-M22C-M-A-N1-230-H3B1-50-16

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignPoppet valve with piston drive

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Line connectionThreaded coupling 1 NPT to ANSI/ASME B 1.20.1

Nominal size23

Valve function2/2-way, single solenoid, closed

Flow directionNon-reversible

Medium pressure0, 1.6

Medium pressure0, 16

Nominal pressure PN16

Exhaust-air functionCannot be throttled

Type of resetMechanical spring

Type of pilotingExternally actuated

Pneumatic connectionFemale thread G1/8

Operating pressure0.6, 1

Operating pressure6, 10

Operating pressure87, 145

Symbol00991367

MediumVapour, Inert gases, Filtered compressed air, grade of filtration 200 µm

Direction of flowAbove valve seat, for gaseous media

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Max. viscosity600

Media temperature-10, 80

Ambient temperature-10, 60

Flow rate Kv10.8

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material process valve housingRed brass

Material number process valve housingCC499K

Material spindle sealNBR

Material seat sealPTFE

Product weight1500

Corrosion resistance class CRC1 - Low corrosion stress

Material drive housingBrass

Accessories 9

Genuine accessories that can be used with the FESTO VZXF-L-M22C-M-A-N1-230-H3B1-50-16 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-8X1,25-NT	Plastic tubing · Tubes
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
QS-G1/8-8-I	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
QS-G1/8-8	Push-in fitting · Push-in fittings
VOFX-LT-M32C-MY-G18-SG18-1B2	Pilot valve · Valves
VOFX-LT-M32C-MY-G18-SG18-3AA1	Pilot valve · Valves
