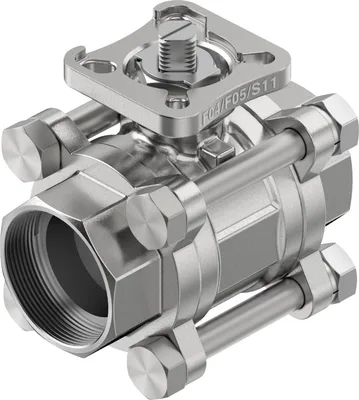

Festo VZBE-11/4-WA-63-T-2-F0405-V15V15
Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveWeld-on end to ASME B16.11
About This Product
Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever
Festo VZBE-11/4-WA-63-T-2-F0405-V15V15
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveWeld-on end to ASME B16.11
Switching position indicatorSlot direction = flow direction
Flange hole patternF04, F05
Inside diameter32
Nominal size DN32
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN23
Based on standardISO 5211
Symbol00991458
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20, 200
Flow rate Kv160
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408/CF8M
Material seat sealPTFE, modified
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1.4408/CF8M
Material shaftHigh-alloy stainless steel
Material number shaft1,4401
Product weight1600
ApprovalCRN
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
Accessories 80
Genuine accessories that can be used with the Festo VZBE-11/4-WA-63-T-2-F0405-V15V15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| DAPS-0030-090-R-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS1-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS2-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS3-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-R-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS1-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS2-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS3-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0060-090-R-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-RS1-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-RS2-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-RS3-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-RS4-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-R-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F0305-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS2-F0305-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS2-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS3-F0305-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS3-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F0305-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F04-T6 | Quarter turn actuator · Connection accessories | |
| VAOH-F7-11-H9-A-22 | Hand lever · Mounting accessories | |
| DAPS-0015-090-R-F04-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F0305-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F04-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F0305-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F04-T4 | Quarter turn actuator · Connection accessories | |
| DFPD-20- | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RD-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RD-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS30-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS30-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-40-RP-90-RS30-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-40-RP-90-RS60-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-40-RP-90-RS30-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-40-RP-90-RS60-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RD-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RD-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS30-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS30-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RD-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RD-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RD-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RD-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS30-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS30-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-90-RS30-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-90-RS60-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS30-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS30-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-90-RS30-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-90-RS60-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DARQ-R-A-S14-S11-16 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S11-17 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S14-S11-16-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S11-17-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S14-S11-16-P10 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S14-S11-16-P50 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S11-17-P50 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S11-22 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-K-V-F05S14-F04S11-R1 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F07S17-F04S11-R1 | Mounting kit · Mounting accessories | |
| DFPD-20-RP-90-RS45-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS35-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS35-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS45-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F05-R3-C | Quarter turn actuator · Connection accessories |
