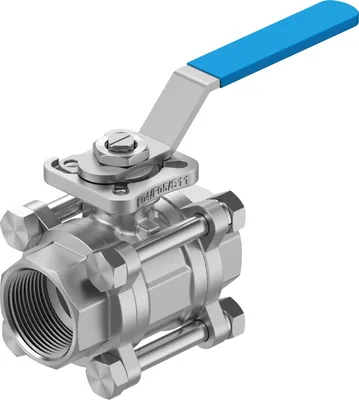

Festo VZBE-11/4-T-63-T-2-F0405-M-V15V15
Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve1 1/4 NPT
About This Product
Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever
Festo VZBE-11/4-T-63-T-2-F0405-M-V15V15
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve1 1/4 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF0405
Inside diameter32
Nominal size DN32
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN18
Based on standardISO 5211
Symbol00991458
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20, 200
Flow rate Kv42.6
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1,4408
Material seat sealPTFE, modified
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1,4408
Material shaftHigh-alloy stainless steel
Material number shaft1,4401
Product weight1700
ApprovalCRN
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
Accessories 79
Genuine accessories that can be used with the Festo VZBE-11/4-T-63-T-2-F0405-M-V15V15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| DAPS-0030-090-R-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS1-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS2-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS3-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F0305 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-R-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS1-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS2-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS3-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F04 | Quarter turn actuator · Connection accessories | |
| DAPS-0060-090-R-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-RS1-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-RS2-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-RS3-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-RS4-F0305-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-R-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F0305-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS2-F0305-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS2-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS3-F0305-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS3-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F0305-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F04-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-R-F04-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F0305-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0030-090-R-F04-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F0305-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0015-090-RS4-F04-T4 | Quarter turn actuator · Connection accessories | |
| DFPD-20- | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RD-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RD-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS30-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS30-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-40-RP-90-RS30-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-40-RP-90-RS60-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-40-RP-90-RS30-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-40-RP-90-RS60-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RD-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RD-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS30-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS30-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RD-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RD-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RD-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RD-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS30-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS30-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F05 | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-90-RS30-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-90-RS60-F04 | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS30-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS30-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F05-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-90-RS30-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-90-RS60-F04-R3-EP | Quarter turn actuator · Connection accessories | |
| DARQ-R-A-S14-S11-16 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S11-17 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S14-S11-16-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S11-17-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S14-S11-16-P10 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S14-S11-16-P50 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S11-17-P50 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S11-22 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-K-V-F05S14-F04S11-R1 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F07S17-F04S11-R1 | Mounting kit · Mounting accessories | |
| DFPD-20-RP-90-RS45-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS35-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-20-RP-90-RS60-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS35-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS45-F05-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-20-RP-90-RS60-F05-R3-C | Quarter turn actuator · Connection accessories |
