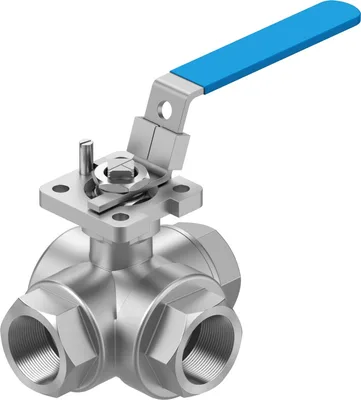

Festo VZBE-1-T-63-F-3T-F05-M-V15V15

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VZBE-1-T-63-F-3T-F05-M-V15V15

Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever

FestoMFR # VZBE-1-T-63-F-3T-F05-M-V15V15SKU # YLSMKOQP60O9LOX
DesignT-bore
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve1 NPT
Share
Have questions?Chat on WhatsApp

About This Product

Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever

Festo VZBE-1-T-63-F-3T-F05-M-V15V15

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

DesignT-bore
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve1 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF05
Inside diameter20
Nominal size DN25
Valve function3/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN25.2
Based on standardISO 5211
Symbol00991888
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20, 200
Flow rate Kv T hole angled4.6
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1,4408
Material seat sealPTFE
Material sealsPTFE
Material ballCast stainless steel
Material number ball1,4408
Material shaftHigh-alloy stainless steel
Material number shaft1,4401
Product weight1700
ApprovalCRN
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress

Accessories 42

Genuine accessories that can be used with the Festo VZBE-1-T-63-F-3T-F05-M-V15V15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
DAPS-0030-090-R-F0305Quarter turn actuator · Connection accessories
DAPS-0015-090-RS1-F0305 Quarter turn actuator · Connection accessories
DAPS-0015-090-RS2-F0305 Quarter turn actuator · Connection accessories
DAPS-0015-090-RS3-F0305Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F0305Quarter turn actuator · Connection accessories
DAPS-0060-090-R-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-RS1-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-RS2-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-RS3-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-RS4-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-R-F0305-T6Quarter turn actuator · Connection accessories
DAPS-0015-090-RS2-F0305-T6Quarter turn actuator · Connection accessories
DAPS-0015-090-RS3-F0305-T6 Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F0305-T6 Quarter turn actuator · Connection accessories
DAPS-0030-090-R-F0305-T4Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F0305-T4Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RD-F05Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RD-F05-R3-EPQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F05Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F05Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F05-R3-EPQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F05-R3-EPQuarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RD-F05 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RD-F05-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F05 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F05 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F05-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F05-R3-EP Quarter turn actuator · Connection accessories
DARQ-R-A-S14-S11-16Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S11-17Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S11-16-P5Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S11-17-P5Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S11-16-P10 Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S11-16-P50 Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S11-17-P50Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S22-S11-22 Reducing sleeve (square) · Mounting accessories
DFPD-20-RP-90-RS45-F05-R3-CQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS35-F05-R3-CQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F05-R3-CQuarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS35-F05-R3-C Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS45-F05-R3-C Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F05-R3-C Quarter turn actuator · Connection accessories
