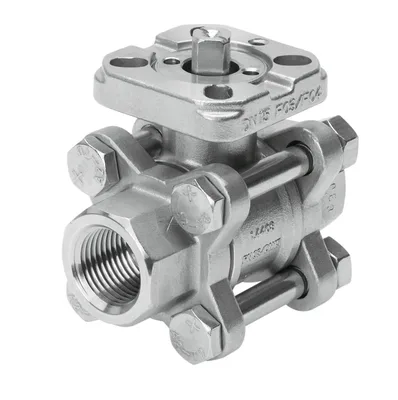

FESTO VZBA-1"-GG-63-T-22-F0405-V4V4T

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VZBA-1"-GG-63-T-22-F0405-V4V4T

Ball valve. Automatable 2-way or 3-way ball valve. Stainless steel design. Blow-out proof shaft. Manual operation possible using hand lever. Connecting thread to EN 10226-1. Mounting flange to ISO 5211. Use in zone 1, 21, 2, 22

FESTOMFR # VZBA-1"-GG-63-T-22-F0405-V4V4TSKU # CEY-937FC781DF6D
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp1
Share
Have questions?Chat on WhatsApp

About This Product

Ball valve. Automatable 2-way or 3-way ball valve. Stainless steel design. Blow-out proof shaft. Manual operation possible using hand lever. Connecting thread to EN 10226-1. Mounting flange to ISO 5211. Use in zone 1, 21, 2, 22

FESTO VZBA-1"-GG-63-T-22-F0405-V4V4T

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp1
Switching position indicatorSlot direction = flow direction
Flange hole patternF04, F05
Inside diameter25
Nominal size DN25
Valve function2/2
Manual overrideNone
Flow directionReversible
Nominal pressure PN63
Actuating torque17
Based on standardISO 5211
Symbol00991458
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request
Media temperature-10, 200
Flow rate Kv71.5
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingHigh-alloy stainless steel
Material number housing1,4408
Material sealsFluoro rubber, PTFE, PTFE-reinforced
Material ballHigh-alloy stainless steel
Material number ball1,4408
Material shaftHigh-alloy stainless steel
Material number shaft1,4401
Product weight1250
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC3 - high corrosion stress

Accessories 80

Genuine accessories that can be used with the FESTO VZBA-1"-GG-63-T-22-F0405-V4V4T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
DAPS-0030-090-R-F0305Quarter turn actuator · Connection accessories
DAPS-0015-090-RS1-F0305 Quarter turn actuator · Connection accessories
DAPS-0015-090-RS2-F0305 Quarter turn actuator · Connection accessories
DAPS-0015-090-RS3-F0305Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F0305Quarter turn actuator · Connection accessories
DAPS-0015-090-R-F04Quarter turn actuator · Connection accessories
DAPS-0030-090-R-F04Quarter turn actuator · Connection accessories
DAPS-0015-090-RS1-F04Quarter turn actuator · Connection accessories
DAPS-0015-090-RS2-F04Quarter turn actuator · Connection accessories
DAPS-0015-090-RS3-F04Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F04Quarter turn actuator · Connection accessories
VAOH-11-H9Hand lever · Mounting accessories
DAPS-0060-090-R-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-RS1-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-RS2-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-RS3-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0030-090-RS4-F0305-CRQuarter turn actuator · Connection accessories
DAPS-0015-090-R-F04-T6Quarter turn actuator · Connection accessories
DAPS-0030-090-R-F0305-T6Quarter turn actuator · Connection accessories
DAPS-0030-090-R-F04-T6Quarter turn actuator · Connection accessories
DAPS-0015-090-RS2-F0305-T6Quarter turn actuator · Connection accessories
DAPS-0015-090-RS2-F04-T6Quarter turn actuator · Connection accessories
DAPS-0015-090-RS3-F0305-T6 Quarter turn actuator · Connection accessories
DAPS-0015-090-RS3-F04-T6Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F0305-T6 Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F04-T6 Quarter turn actuator · Connection accessories
DAPS-0015-090-R-F04-T4Quarter turn actuator · Connection accessories
DAPS-0030-090-R-F0305-T4Quarter turn actuator · Connection accessories
DAPS-0030-090-R-F04-T4Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F0305-T4Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F04-T4Quarter turn actuator · Connection accessories
DFPD-20-Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RD-F04Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RD-F04-R3-EPQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F04Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F04Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F04-R3-EPQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F04-R3-EPQuarter turn actuator · Connection accessories
DFPD-40-RP-90-RS30-F04Quarter turn actuator · Connection accessories
DFPD-40-RP-90-RS60-F04Quarter turn actuator · Connection accessories
DFPD-40-RP-90-RS30-F04-R3-EPQuarter turn actuator · Connection accessories
DFPD-40-RP-90-RS60-F04-R3-EPQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RD-F05Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RD-F05-R3-EPQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F05Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F05Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F05-R3-EPQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F05-R3-EPQuarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RD-F04 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RD-F05 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RD-F04-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RD-F05-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F04 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F05 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F04 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F05 Quarter turn actuator · Connection accessories
DFPD-N-40-RP-90-RS30-F04 Quarter turn actuator · Connection accessories
DFPD-N-40-RP-90-RS60-F04 Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F04-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F05-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F04-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F05-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-40-RP-90-RS30-F04-R3-EP Quarter turn actuator · Connection accessories
DFPD-N-40-RP-90-RS60-F04-R3-EP Quarter turn actuator · Connection accessories
DARQ-R-A-S14-S11-16Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S11-17Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S11-16-P5Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S11-17-P5Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S11-16-P10 Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S11-16-P50 Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S17-S11-17-P50Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S22-S11-22 Reducing sleeve (square) · Mounting accessories
DARQ-K-V-F05S14-F04S11-R1Mounting kit · Mounting accessories
DARQ-K-V-F07S17-F04S11-R1Mounting kit · Mounting accessories
DFPD-20-RP-90-RS45-F05-R3-CQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS35-F05-R3-CQuarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F05-R3-CQuarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS35-F05-R3-C Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS45-F05-R3-C Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F05-R3-C Quarter turn actuator · Connection accessories
