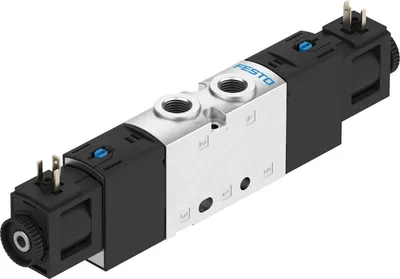

Festo VUVS-L20-B52-D-G18-F7-1C1
Solenoid valve. Universal valve, sturdy and durable. Low cost with no performance limitations. Can be used as individual valves or manifold valves VTUS
Valve function5/2-way, double solenoid
Type of actuationElectrical
Valve size21
pneumatic working portG1/8
Operating voltage24 V DC
Operating pressure0.15, 1
About This Product
Solenoid valve. Universal valve, sturdy and durable. Low cost with no performance limitations. Can be used as individual valves or manifold valves VTUS
Festo VUVS-L20-B52-D-G18-F7-1C1
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function5/2-way, double solenoid
Type of actuationElectrical
Valve size21
Standard nominal flow rate (standardised to DIN 1343)700
pneumatic working portG1/8
Operating voltage24 V DC
Operating pressure0.15, 1
Operating pressure1.5, 10
DesignPiston gate valve
Approvalc UL us - Recognised (Oil)
Degree of protectionIP65, With plug socket, To IEC 60529
Nominal size5.7
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, Non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00991013
lapOverlap
b value0.35
C value2.9
Switching time reversal10
Duty cycle100%
Max. positive test pulse with 0 signal1900
Max. negative test pulse with 1 signal2700
Characteristic coil data24 V DC: 2.6 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Media temperature-10, 60
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10, 60
Product weight259
Electrical connectionType C, To EN 175301-803
Type of mountingOn manifold rail, With through-hole
Breather connectionNot ducted
Pilot exhaust port 82M5
Pilot exhaust port 84M5
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingDie-cast aluminium, painted
Material piston slideWrought aluminium alloy
Material screwsGalvanised steel
Accessories 85
Genuine accessories that can be used with the Festo VUVS-L20-B52-D-G18-F7-1C1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| MSSD-EB | Plug socket · Electrical accessories | |
| KMEB-1-24-2.5-LED | Plug socket with cable · Electrical accessories | |
| VABM-B10-20E-G38-2 | Manifold block · Connection accessories | |
| VAMC-B10-20-CH2 | Cover cap · General accessories | |
| VABM-B10-20E-G38-3 | Manifold block · Connection accessories | |
| VABM-B10-20E-G38-4 | Manifold block · Connection accessories | |
| VABM-B10-20E-G38-5 | Manifold block · Connection accessories | |
| VABM-B10-20E-G38-6 | Manifold block · Connection accessories | |
| VABM-B10-20E-G38-7 | Manifold block · Connection accessories | |
| VABM-B10-20E-G38-8 | Manifold block · Connection accessories | |
| VABM-B10-20E-G38-9 | Manifold block · Connection accessories | |
| VABM-B10-20E-G38-10 | Manifold block · Connection accessories | |
| PUN-H-6X1-NT | Plastic tubing · Tubes | |
| PUN-H-6X1-BL | Plastic tubing · Tubes | |
| PUN-H-6X1-SW | Plastic tubing · Tubes | |
| PUN-H-6X1-TBL | Plastic tubing · Tubes | |
| U-1/8 | Silencer · Silencer | |
| MEB-LD-12-24DC | Illuminating seal · Electrical accessories | |
| QS-G1/8-6 | Push-in fitting · Fittings | |
| QS-G1/8-6-I | Push-in fitting · Fittings | |
| QSL-G1/8-6 | Push-in L-fitting · Fittings | |
| QSLL-G1/8-6 | Push-in L-fitting, long · Fittings | |
| U-1/8-B | Silencer · Silencer | |
| QSL-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QS-G1/8-4-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I-100 | Push-in fitting · Push-in fittings | |
| QSLL-G1/8-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8-100 | Push-in L-fitting, long · Push-in fittings | |
| KMEB-1-24-5-LED | Plug socket with cable · Electrical accessories | |
| QSM-M5-4-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I | Push-in fitting · Push-in fittings | |
| QSL-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| KMEB-1-24-10-LED | Plug socket with cable · Electrical accessories | |
| U-1/8-50 | Silencer · Silencer | |
| MSSD-EB-M12 | Socket · Electrical accessories | |
| ASLR-C-E4 | Inscription label · General accessories | |
| MSSD-EB-M12-24VDC-SD-EX | Plug socket · Electrical accessories | |
| VABM-B10-20E-N38-2 | Manifold block · Connection accessories | |
| VABM-B10-20E-N38-3 | Manifold block · Connection accessories | |
| VABM-B10-20E-N38-4 | Manifold block · Connection accessories | |
| VABM-B10-20E-N38-5 | Manifold block · Connection accessories | |
| VABM-B10-20E-N38-6 | Manifold block · Connection accessories | |
| VABM-B10-20E-N38-7 | Manifold block · Connection accessories | |
| VABM-B10-20E-N38-8 | Manifold block · Connection accessories | |
| VABM-B10-20E-N38-9 | Manifold block · Connection accessories | |
| VABM-B10-20E-N38-10 | Manifold block · Connection accessories | |
| VABM-B10-20-G38-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-20-N38-10-P53 | Common supply manifold · Connection accessories | |
| VAME-B10-20-A | Foot mounting · Mounting accessories | |
| VAME-B10-20-W | Wall mounting · Mounting accessories | |
| VABM-B10-20-G38-2-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-3-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-20-G38-4-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-20EEE-G38-2 | Manifold block · Connection accessories | |
| AMTE-M-LH-G18 | Silencer · Silencer | |
| DAVM-MW-V1-32-V | Mounting kit · Mounting accessories | |
| VAMC-B10-C-B-S8 | Seal-SET · Mounting accessories | |
| VAME-B10-20-MK | Assortment of spare parts · Mounting accessories | |
| NEDY- | Distributor · Electrical accessories | |
| NEDY-L2R1-V1-C1W4L-U-0.3L-M12G4-2.5R | Distributor · Electrical accessories | |
| NEDY-L2R1-V1-C1W4L-U-0.3L-M12G4-5R | Distributor · Electrical accessories |
