How can I get a price quote for Festo VUVG-LK10-B52-T-M5-1R8L-S?

You can request a fast quote for Festo VUVG-LK10-B52-T-M5-1R8L-S from Yılsa Engineering. Reference part number YLSC5KBNJ9KPJF0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VUVG-LK10-B52-T-M5-1R8L-S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VUVG-LK10-B52-T-M5-1R8L-S genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VUVG-LK10-B52-T-M5-1R8L-S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

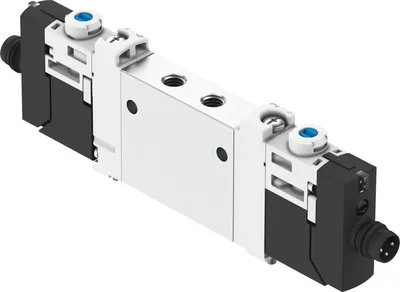

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VUVG-LK10-B52-T-M5-1R8L-S

Solenoid valve. Compact universal valve. Connection technology via electrical connection box (E-box). High flow rate relative to its size. In-line valves can be used as individual valves or manifold valves

FestoMFR # VUVG-LK10-B52-T-M5-1R8L-SSKU # YLSC5KBNJ9KPJF0

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size10

pneumatic working portM5

Operating voltage24 V DC

Operating pressure0.15, 0.7

Have questions?Chat on WhatsApp

About This Product

Festo VUVG-LK10-B52-T-M5-1R8L-S

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size10

Standard nominal flow rate (standardised to DIN 1343)195

pneumatic working portM5

Operating voltage24 V DC

Operating pressure0.15, 0.7

Operating pressure1.5, 7

DesignPiston slide with sealing ring

Approvalc UL us - Recognised (Oil)

Certificate issuing authorityUL MH19482

Degree of protectionIP65

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00992897

lapOverlap

Signal status displayLED

Max. switching frequency2

Switching time reversal8

Duty cycle100%

Max. positive test pulse with 0 signal1600

Max. negative test pulse with 1 signal3000

Characteristic coil data24 V DC: 0.8 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Product weight57

Electrical connectionM8x1 A-encoded to EN 61076-2-104, Plug

Type of mountingOn manifold rail, With through-hole

Pneumatic connection, port 2M5

Pneumatic connection, port 4M5

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Accessories 40

Genuine accessories that can be used with the Festo VUVG-LK10-B52-T-M5-1R8L-S motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M5-4-I	Push-in fitting · Fittings
AMTE-M-LH-M5	Silencer · Silencer
VABD-L1-10XK-S-M5-S	Seal · Connection accessories
VABM-L1-10S-G18-2	Manifold rail · Connection accessories
VABM-L1-10S-G18-3	Manifold rail · Connection accessories
VABM-L1-10S-G18-4	Manifold rail · Connection accessories
VABM-L1-10S-G18-5	Manifold rail · Connection accessories
VABM-L1-10S-G18-6	Manifold rail · Connection accessories
VABM-L1-10S-G18-7	Manifold rail · Connection accessories
VABM-L1-10S-G18-8	Manifold rail · Connection accessories
VABM-L1-10S-G18-9	Manifold rail · Connection accessories
VABM-L1-10S-G18-10	Manifold rail · Connection accessories
VABM-L1-10S-G18-12	Manifold rail · Connection accessories
VABM-L1-10S-G18-14	Manifold rail · Connection accessories
VABM-L1-10S-G18-16	Manifold rail · Connection accessories
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
