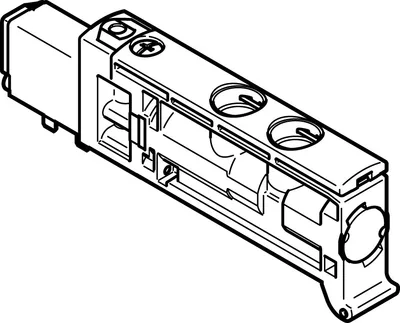

FESTO VUVB-ST12-M52-MZH-QX-D-1T1
Solenoid valve
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size12
pneumatic working portQS-4, QS-6
Operating pressure0.28, 0.8
Operating pressure2.8, 8
About This Product
FESTO VUVB-ST12-M52-MZH-QX-D-1T1 (Solenoid valve) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VUVB-ST12-M52-MZH-QX-D-1T1 — price, stock availability and technical specifications.
FESTO VUVB-ST12-M52-MZH-QX-D-1T1
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size12
Standard nominal flow rate (standardised to DIN 1343)240, 400
pneumatic working portQS-4, QS-6
Operating pressure0.28, 0.8
Operating pressure2.8, 8
DesignPoppet valve with spring return
Type of resetMechanical spring
Degree of protectionIP65
Nominal size4
Exhaust-air functionCannot be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionNon-reversible
Symbol00991009
Note on operating pressure0 - 0.8 MPa with ext. pilot air, 0 - 8 bar with external pilot air
Pilot pressure0.28, 0.8
Pilot pressure2.8, 8
Switching time off14
Switching time on6
Duty cycle100%
Max. positive test pulse with 0 signal800
Max. negative test pulse with 1 signal300
Characteristic coil data24 V DC: 1.0 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5, 60
Sound pressure level85
Ambient temperature-5, 60
Product weight27.8
Electrical connectionVia E-box
Type of mountingOn sub-base
Auxiliary pilot air port 14Sub-base
Pneumatic connection, port 1Sub-base
Pneumatic connection, port 3Sub-base
Pneumatic connection, port 5Sub-base
Note on materialsRoHS compliant
Material sealsNBR, TPE-U(PU)
Material housingReinforced PA
Material piston slideWrought aluminium alloy
Accessories 72
Genuine accessories that can be used with the FESTO VUVB-ST12-M52-MZH-QX-D-1T1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QSPLK10-4 | Cartridge · Push-in fittings | |
| QSPLK10-6 | Cartridge · Push-in fittings | |
| QSPLLK10-4 | Cartridge · Push-in fittings | |
| QSPLLK10-6 | Cartridge · Push-in fittings | |
| QSPKG10-3 | Cartridge · Push-in fittings | |
| QSPKG10-4 | Cartridge · Push-in fittings | |
| QSPKG10-6 | Cartridge · Push-in fittings | |
| QSPKG10-5/32-U | Cartridge · Push-in fittings | |
| QSPKG10-1/4-U | Cartridge · Push-in fittings | |
| QSPKG10-1/8-U | Cartridge · Push-in fittings | |
| QSPLKG10-3 | Cartridge · Push-in fittings | |
| QSPLKG10-1/8-U | Cartridge · Push-in fittings | |
| QSPLLKG10-3 | Cartridge · Push-in fittings | |
| QSPLLKG10-1/8-U | Cartridge · Push-in fittings | |
| QSPLKG10-4 | Cartridge · Push-in fittings | |
| QSPLKG10-6 | Cartridge · Push-in fittings | |
| QSPLKG10-1/4-U | Cartridge · Push-in fittings | |
| QSPLLKG10-4 | Cartridge · Push-in fittings | |
| QSPLLKG10-6 | Cartridge · Push-in fittings | |
| QSPLLKG10-1/4-U | Cartridge · Push-in fittings | |
| QSPK10-3 | Cartridge · Push-in fittings | |
| QSPK10-4 | Cartridge · Push-in fittings | |
| QSPK10-6 | Cartridge · Push-in fittings | |
| QSP10-4 | Cartridge · Push-in fittings | |
| QSP10-6 | Cartridge · Push-in fittings | |
| QSP10-5/32-U | Cartridge · Push-in fittings | |
| QSP10-PTB | Blanking plug · Push-in fittings | |
| VABM-C8-12E-G14-2-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-4-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-6-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-8-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-10-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-12-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-14-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-16-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-18-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-20-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-24-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-28-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-32-M1 | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-35-M1 | Manifold rail · Connection accessories | |
| QSPC10 | Blanking plug · Push-in fittings | |
| QSP10-G1/8 | Adapter · Push-in fittings | |
| VABS-C8-12XB-QX-B | Sub-base · Connection accessories | |
| VABS-C8-12XB-QX | Sub-base · Connection accessories | |
| VABM-C8-12E-G14-4-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-6-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-8-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-10-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-12-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-14-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-16-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-18-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-20-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-24-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-28-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-32-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-35-PT-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-2-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-4-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-6-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-8-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-10-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-12-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-14-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-16-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-18-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-20-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-24-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-28-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-32-M1-L | Manifold rail · Connection accessories | |
| VABM-C8-12E-G14-35-M1-L | Manifold rail · Connection accessories |
