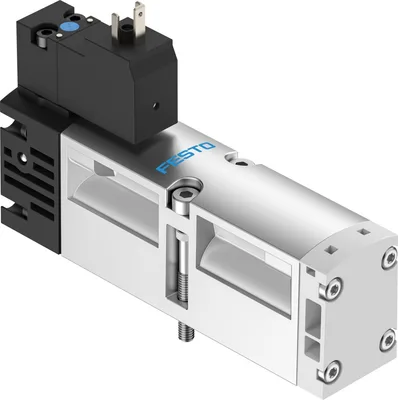

FESTO VSVA-B-M52-AH-A2-2AC1

Solenoid valve. Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface. Electrical connection via plug type C. Robust metal housing. Manifold assembly with mixed sizes possible

FESTOMFR # VSVA-B-M52-AH-A2-2AC1SKU # CEY-937FC781EDAD

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size18

Operating voltage110V AC

Operating pressure0.2, 1

Operating pressure2, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface. Electrical connection via plug type C. Robust metal housing. Manifold assembly with mixed sizes possible

FESTO VSVA-B-M52-AH-A2-2AC1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size18

Standard nominal flow rate (standardised to DIN 1343)550

pneumatic working portSub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563, G1/8

Operating voltage110V AC

Operating pressure0.2, 1

Operating pressure2, 10

DesignPiston gate valve

Type of resetPneumatic spring

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Degree of protectionIP65, NEMA 4

Nominal size5

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 15407-1, VDMA 24563

Manual overrideNon-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991049

lapOverlap

Signal status displayLED

Pilot pressure0.3, 1

Pilot pressure3, 10

Flow rate of valve750

Flow rate of valve on individual sub-base550

Flow rate of pneumatically interlinked valve550

Switching time off19

Switching time on21

Duty cycle100%

Characteristic coil data110 V AC: 50/60 Hz, pick-up power 2.9 VA, holding power 2.1 VA

Permissible voltage fluctuations-15% / +10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 50

Relative air humidity0 - 90%

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Max. tightening torque for valve mounting1

Product weight127

Electrical connectionType C, With PE conductor, To DIN EN 175301-803

Type of mountingOn sub-base

Auxiliary pilot air port 12Sub-base size 18 mm to ISO 15407-1

Auxiliary pilot air port 14Sub-base size 18 mm to ISO 15407-1

Pilot exhaust port 82/84Ducted, Not ducted as per standard

Pneumatic connection, port 1Sub-base size 18 mm to ISO 15407-1

Pneumatic connection, port 2Sub-base size 18 mm to ISO 15407-1

Pneumatic connection, port 3Sub-base size 18 mm to ISO 15407-1

Pneumatic connection, port 4Sub-base size 18 mm to ISO 15407-1

Pneumatic connection, port 5Sub-base size 18 mm to ISO 15407-1

Pilot control interfaceTo ISO 15218

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast aluminium

Material screwsSteel, Galvanised

Accessories 28

Genuine accessories that can be used with the FESTO VSVA-B-M52-AH-A2-2AC1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MSSD-EB	Plug socket · Electrical accessories
KMEB-1-230AC-2.5	Plug socket with cable · Electrical accessories
NAS-1/8-02-VDMA	Individual sub-base · Connection accessories
NAW-1/8-02-VDMA	Manifold sub-base · Connection accessories
NEV-02-VDMA	End plate kit · Connection accessories
NSC-3/8-02-VDMA	Isolating disc · Connection accessories
NDV-02-VDMA	Cover plate · Connection accessories
VABF-S3-2-R1C2-C-6	Regulator plate · Connection accessories
VABF-S3-2-R1C2-C-10	Regulator plate · Connection accessories
VABF-S3-2-R3C2-C-6	Regulator plate · Connection accessories
VABF-S3-2-R3C2-C-10	Regulator plate · Connection accessories
VABF-S3-2-R2C2-C-6	Regulator plate · Connection accessories
VABF-S3-2-R2C2-C-10	Regulator plate · Connection accessories
VABF-S3-2-L1D1-C	Vertical pressure shut-off plate · Connection accessories
VABF-S3-2-F1B1-C	Throttle plate · Connection accessories
KMEB-1-230AC-5	Plug socket with cable · Electrical accessories
NZV-01/02-VDMA	Intermediate plate · Connection accessories
NEV-02-01-VDMA	End plate kit · Connection accessories
MSSD-EB-M12	Socket · Electrical accessories
VABF-S3-2-R4C2-C-6	Regulator plate · Connection accessories
VABF-S3-2-R4C2-C-10	Regulator plate · Connection accessories
VABF-S3-2-R5C2-C-6	Regulator plate · Connection accessories
VABF-S3-2-R5C2-C-10	Regulator plate · Connection accessories
VABF-S3-2-P1A3-G18	Vertical pressure supply plate · Connection accessories
VABF-S3-2-R6C2-C-6	Regulator plate · Connection accessories
VABF-S3-2-R6C2-C-10	Regulator plate · Connection accessories
VABF-S3-2-R7C2-C-6	Regulator plate · Connection accessories
VABF-S3-2-R7C2-C-10	Regulator plate · Connection accessories
