How can I get a price quote for Festo VRPA-C-Q4-E?

You can request a fast quote for Festo VRPA-C-Q4-E from Yılsa Engineering. Reference part number YLS1BOLQ0ZMNYJA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VRPA-C-Q4-E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VRPA-C-Q4-E genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VRPA-C-Q4-E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

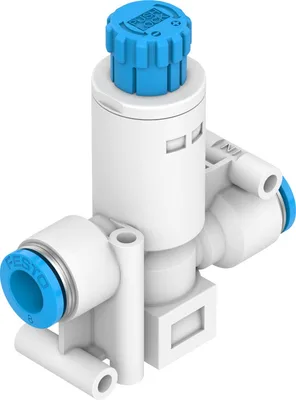

Festo VRPA-C-Q4-E

Pressure regulator. Regulates the operating pressure independently of the fluctuating inlet pressure. With secondary exhaust and with return flow function. Piston regulator with through pressure supply. Greater energy efficiency thanks to movement-specific pressure adjustment. Directly actuated. Available with pressure gauge. Connections: push-in connector at both ends, thread/push-in connector. Sustainable operation thanks to reduced pressure level

FestoMFR # VRPA-C-Q4-ESKU # YLS1BOLQ0ZMNYJA

Pneumatic connection, port 1QS-4

Pneumatic connection, port 2QS-4

Type of mountingWith through-hole

Ambient temperature0, 60

Material housingPBT

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo VRPA-C-Q4-E

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Controller functionOutput pressure constant, With secondary exhausting, With return flow function

Pneumatic connection, port 1QS-4

Pneumatic connection, port 2QS-4

Type of mountingWith through-hole

Standard nominal flow rate (standardised to DIN 1343)80

Ambient temperature0, 60

Material housingPBT

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Mounting positionAny

Type of actuationManual

Adjustment componentRotary knob with latch

Symbol00991559

Pressure regulation range0.1, 0.8

Pressure regulation range1, 8

Pressure regulation range14.5, 116

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Product weight19

Note on materialsRoHS compliant

Material static sealsNBR

Accessories 71

Genuine accessories that can be used with the Festo VRPA-C-Q4-E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PAN-V0-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SI	Plastic tubing · Tubing
PAN-4X0,75-SI	Plastic tubing · Tubing
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PUN-CM-4-SW	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
PFAN-4X0,75-NT	Plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-R-4X0,75-SI	Heavy-duty tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-BL-500	Plastic tubing · Tubing
PUN-H-4X0,75-NT-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI	Plastic tubing · Tubing
PUN-H-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-GN	Plastic tubing · Tubing
PUN-H-4X0,75-GE	Plastic tubing · Tubing
PUN-V0-4X1-SW-C	Plastic tubing · Tubing
PUN-V0-4X1-BL-C	Plastic tubing · Tubing
PAN-MF-4X0,75-SW	Plastic tubing · Tubing
PAN-MF-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-500	Plastic tubing · Tubing
PUN-H-4X0,75-TSW	Plastic tubing · Tubing
PUN-H-4X0,75-TSW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TRT	Plastic tubing · Tubing
PUN-H-4X0,75-TRT-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGN	Plastic tubing · Tubing
PUN-H-4X0,75-TGN-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE	Plastic tubing · Tubing
PUN-H-4X0,75-TGE-500	Plastic tubing · Tubing
PTFEN-4X0,5-NT-100	Plastic tubing · Tubing
PUN-H-F-4X0,75-NT	Plastic tubing · Tubing
PUN-H-F-4X0,75-RT	Plastic tubing · Tubing
PUN-H-F-4X0,75-BL	Plastic tubing · Tubing
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-F-4X0,75-GN	Plastic tubing · Tubing
PUN-H-F-4X0,75-GE	Plastic tubing · Tubing
PUN-H-F-4X0,75-SW	Plastic tubing · Tubing
