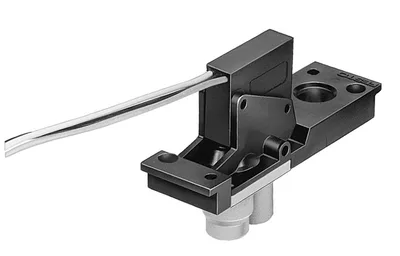

Festo VPE-1/8-2N-SW
PE converter. Pneumatic/electric differential pressure switch. Pneumatic/electric pressure transducer. Design for vacuum. Mounting on mounting frame 2N. Splash-proof design. Certification: CCC
Conforms to standardEN 60947-5-1
Symbol00995409
CE mark (see declaration of conformity)To EU Low Voltage Directive
Measured variableRelative pressure
Measurement methodPneumatic/electric pressure transducer
Operating pressure-0.095, 0
About This Product
PE converter. Pneumatic/electric differential pressure switch. Pneumatic/electric pressure transducer. Design for vacuum. Mounting on mounting frame 2N. Splash-proof design. Certification: CCC
Festo VPE-1/8-2N-SW
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Conforms to standardEN 60947-5-1
Symbol00995409
CE mark (see declaration of conformity)To EU Low Voltage Directive
UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
Measured variableRelative pressure
Measurement methodPneumatic/electric pressure transducer
Operating pressure-0.095, 0
Operating pressure-0.95, 0
Max. overload pressure1
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible
Media temperature0, 60
Ambient temperature0, 60
Switching outputconventional
Switching functionThreshold value with fixed hysteresis
Switching element functionChangeover switch
Switch-on point-0.25
Switch-off point0.1
Max. switching frequency1
Min. load current100
Operational voltage range AC12, 250
Operational voltage range DC12, 250
Utilisation category - inductive loadAC-14, DC-13
Utilisation category - resistive loadAC-12, DC-12
Electrical connection3 connecting wires
Electrical connection 1, connector systemOpen end
Cable length0.5
Material cable sheathPVC
Type of mountingEither:, On 2n mounting frame, With through-hole
Mounting positionAny
Pneumatic connectionG1/8
Material housingReinforced PA, POM, Steel, VMQ (silicone)
Material switch contactSilver
Material electrical connectionTin-plated
Material membraneChloroprene rubber
Setting optionsPermanently set
Degree of protectionIP67
Insulation voltage2000
LABS (PWIS) conformityVDMA24364-B1/B2-L
Pollution degree3
Accessories 219
Genuine accessories that can be used with the Festo VPE-1/8-2N-SW motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| NRW-9/1,5-B | Mounting bracket · Mounting accessories | |
| QS-G1/8-8-I | Push-in fitting · Fittings | |
| DIN 84-M6X18-4.8 | Socket head screw · Mounting accessories | |
| DIN 84-M6X12-4.8 | Socket head screw · Mounting accessories | |
| QS-G1/8-8 | Push-in fitting · Fittings | |
| NRRQ-2N | Mounting frame · Mounting accessories | |
| NECB-S-M12G4-C2 | Plug · Electrical accessories | |
| NECB-S-M12G5-C2 | Plug · Electrical accessories | |
| CK-1/8-PK-4 | Quick connector · Quick connectors | |
| CK-1/8-PK-6 | Quick connector · Quick connectors | |
| CK-1/8-PK-3 | Quick connector · Quick connectors | |
| LCK-1/8-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-3 | T quick connector · Quick connectors | |
| LCK-1/8-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4 | T quick connector · Quick connectors | |
| TCK-1/8-PK-6 | T quick connector · Quick connectors | |
| CK-1/8-PK-3-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-6-KU | Quick connector · Quick connectors | |
| LCK-1/8-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4-KU | T quick connector · Quick connectors | |
| TCK-1/8-PK-6-KU | T quick connector · Quick connectors | |
| CN-1/8-PK-3 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-6 | Barbed fitting · Barbed fittings | |
| LCN-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| TCN-1/8-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCNH-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| QSW-1/8-4 | Push-in fitting · Push-in fittings | |
| QSW-1/8-6 | Push-in fitting · Push-in fittings | |
| QSW-1/8-8 | Push-in fitting · Push-in fittings | |
| QSL-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSM-1/8-4-100 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-100 | Push-in fitting · Push-in fittings | |
| QSML-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-V0-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSML-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8-100 | Push-in L-fitting, long · Push-in fittings | |
| QSL-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/8-4-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/8-6-B | Multiple distributor · Push-in fittings | |
| QST3-1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/8-6 | Multiple distributor · Push-in fittings | |
| QST3-G1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-G1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-G1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-G1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-G1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSL-1/8-10 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-10 | Push-in T-fitting · Push-in fittings | |
| NECB-S-M12G4-C2-D | Plug · Electrical accessories | |
| NECB-S-M12G5-C2-D | Plug · Electrical accessories |
Related Products
View Details
Festo
SPAE-P10R-Q3-PNLK-2.5K
MFR #SPAE-P10R-Q3-PNLK-2.5K
SKU #YLSGMZE2XAJX7Y
View Details
Festo
SPAE-P10R-Q4-PNLK-2.5K
MFR #SPAE-P10R-Q4-PNLK-2.5K
SKU #YLSKOP9YZFC4AWP
View Details
Festo
SPAE-P10R-S4-PNLK-2.5K
MFR #SPAE-P10R-S4-PNLK-2.5K
SKU #YLSAHNJ7XVBQ64A
View Details
Festo
SPAE-P10R-S6-PNLK-2.5K
MFR #SPAE-P10R-S6-PNLK-2.5K
SKU #YLSDJ6DCCZV5PS8
View Details
Festo
SPAE-V1R-F-PNLK-2.5K
MFR #SPAE-V1R-F-PNLK-2.5K
SKU #YLSX9NHRBTFSMF
View Details
Festo
SPAE-V1R-PC10-PNLK-2.5K
MFR #SPAE-V1R-PC10-PNLK-2.5K
SKU #YLSQZF1KLTTL5VG
View Details
Festo
SPAE-V1R-Q3-PNLK-2.5K
MFR #SPAE-V1R-Q3-PNLK-2.5K
SKU #YLS2AWAKFNAICSY
View Details
Festo
SPAE-V1R-Q4-PNLK-2.5K
MFR #SPAE-V1R-Q4-PNLK-2.5K
SKU #YLSDW8UN4UCSF5
View Details
Festo
SPAE-V1R-S4-PNLK-2.5K
MFR #SPAE-V1R-S4-PNLK-2.5K
SKU #YLS2YOJRUWILSP
Featured Products
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Related Searches
Festo VPE-1/8-2N-SW priceFesto VPE-1/8-2N-SW quotebuy Festo VPE-1/8-2N-SWVPE-1/8-2N-SW priceVPE-1/8-2N-SW stock availabilityFesto spare partsFesto VPE-1/8-2N-SW equivalentFesto VPE-1/8-2N-SW specifications
