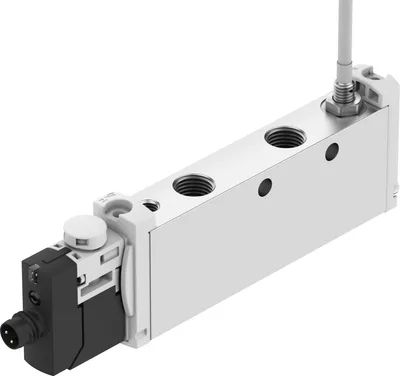

Festo VOFT-L14-M62-MZS-G18-1M8RL-APC

Control block. 6/2-way valve with switching position sensing. Suitable for safety functions according to DIN 13849. Available in 1-channel and 2-channel versions. Also perfect for safety upgrades when retrofitting machines

FestoMFR # VOFT-L14-M62-MZS-G18-1M8RL-APCSKU # YLSZHD8ULT8GBR

Valve function6/2-way valve, single solenoid

Type of actuationElectrical

Construction width14.5

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure0, 1

Have questions?Chat on WhatsApp

About This Product

Festo VOFT-L14-M62-MZS-G18-1M8RL-APC

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function6/2-way valve, single solenoid

Type of actuationElectrical

Construction width14.5

Nominal flow rate standardised according to ISO 8778830

Standard nominal flow rate (standardised to DIN 1343)770

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure0, 1

Operating pressure0, 10

Operating pressure0, 145

DesignPiston gate valve

Type of resetMechanical spring

Degree of protectionIP65

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Exhaust-air functionCannot be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardEN 60947-5-2

Manual overrideConcealed

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionNon-reversible

Symbol00997535

Measuring principleInductive

lapUnderlap

Reverse polarity protectionFor all electrical connections

Reverse polarity protection sensorFor all electrical connections

Note on forced dynamizationCurrent information on this topic can be found in Technical Report V

Switching position indicatorLED

Signal status displayYellow LED, valve control

Switching position sensingNormal position with sensor

Switching status display sensorLED

Pilot pressure0.35, 0.8

Pilot pressure3.5, 8

b value0.42

C value3

Switching time off65

Switching time on14

Valve - sensor switching time on11

Valve - sensor switching time off70

Operational voltage range DC24

Duty cycle100%

Max. positive test pulse with 0 signal800

Max. negative test pulse with 1 signal400

Nominal operating voltage DC24

Characteristic coil data24 V DC: Low-current phase 0.4 W, high-current phase 1.0 W

Permissible voltage fluctuations-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Storage temperature-10, 60

Media temperature-5, 50

Sound pressure level64

Protection against direct and indirect contactPELV

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Nominal altitude of use1000 m in accordance with VDE 0580

Product weight140

Operating voltage range, DC sensor10, 30

Short-circuit strength sensorYes

Idle current sensor10

Max. output current sensor200

Max. switching frequency sensor5000

Residual ripple sensor±10%

Voltage drop sensor2

Electrical connection3-pin, M8x1 A-encoded to EN 61076-2-104, Plug

Sensor connectionCable, 3-pin, 2.5 m

Type of mountingVia through-hole for M4 screw

Pilot air port 14M5

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4G1/8

Pneumatic connection, port 5G1/8

Pneumatic connection 6G1/8

Note on materialsRoHS compliant

Material sealsFluoro rubber, HNBR, NBR

Material housingWrought aluminium alloy

Material cable sheathPVC

Material screwsSteel, chemically nickel-plated

Switching element functionN/C contact

Accessories 37

Genuine accessories that can be used with the Festo VOFT-L14-M62-MZS-G18-1M8RL-APC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-1/8-6	Push-in fitting · Push-in fittings
QS-1/8-4	Push-in fitting · Push-in fittings
QS-1/8-8	Push-in fitting · Push-in fittings
QS-1/8-4-I	Push-in fitting · Push-in fittings
QS-1/8-6-I	Push-in fitting · Push-in fittings
QS-1/8-8-I	Push-in fitting · Push-in fittings
QS-V0-1/8-6	Push-in fitting · Push-in fittings
QS-V0-1/8-8	Push-in fitting · Push-in fittings
UC-1/8	Silencer · Silencer
QS-1/8-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-1/8-1/4-I-U-M	Push-in fitting · Push-in fittings
QS-G1/8-6	Push-in fitting · Push-in fittings
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-8	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Push-in fittings
QS-V0-G1/8-6	Push-in fitting · Push-in fittings
QS-V0-G1/8-8	Push-in fitting · Push-in fittings
QS-1/8-10	Push-in fitting · Push-in fittings
QS-1/8-10-I	Push-in fitting · Push-in fittings
UO-1/8	Silencer · Silencer
QS-1/8-4-100	Push-in fitting · Push-in fittings
QS-1/8-8-50	Push-in fitting · Push-in fittings
QS-1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-8-50	Push-in fitting · Push-in fittings
QS-V0-1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QS-1/8-6-I-100	Push-in fitting · Push-in fittings
QS-1/8-8-I-50	Push-in fitting · Push-in fittings
QS-1/8-4-I-100	Push-in fitting · Push-in fittings
