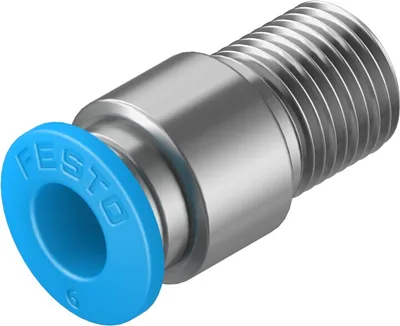

FESTO QS-1/8-6-I

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO QS-1/8-6-I

Push-in fitting. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FESTOMFR # QS-1/8-6-ISKU # CEY-937FC7825CF0
SizeStandard
Nominal size4.2
Tubing insertion depth17
Type of seal on screwed plugCoating
Mounting positionAny
DesignStraight design
Share
Have questions?Chat on WhatsApp

About This Product

Push-in fitting. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FESTO QS-1/8-6-I

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size4.2
Tubing insertion depth17
Type of seal on screwed plugCoating
Mounting positionAny
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 80
Product weight7.6
Type of mountingInternal hexagon A/F 4
Pneumatic connection, port 1Male thread R1/8
Pneumatic connection, port 2For tubing outside diameter of 6 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingBrass, nickel-plated
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

Accessories 82

Genuine accessories that can be used with the FESTO QS-1/8-6-I motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
QSORelease tool · General accessories
PUN-H-6X1-NTPlastic tubing · Tubes
PUN-H-6X1-BLPlastic tubing · Tubes
PUN-H-6X1-SWPlastic tubing · Tubes
PUN-H-6X1-TBLPlastic tubing · Tubes
PM-4Plastic-coated metal tube · Connection accessories
PUN-6X1-SIPlastic tubing · Tubing
PAN-6X1-SIPlastic tubing · Tubing
PUN-6X1-DUO-SIDUO tubing · Tubing
PUN-6X1-BLPlastic tubing · Tubing
PUN-6X1-SWPlastic tubing · Tubing
PUN-6X1-DUO-BSDUO tubing · Tubing
PUN-6X1-RTPlastic tubing · Tubing
PUN-6X1-GEPlastic tubing · Tubing
PUN-6X1-GNPlastic tubing · Tubing
PUN-6X1-S-1-BLSpiral plastic tubing · Tubing
PUN-6X1-S-2-BLSpiral plastic tubing · Tubing
PUN-6X1-S-6-BLSpiral plastic tubing · Tubing
PUN-6X1-S-1-SWSpiral plastic tubing · Tubing
PUN-6X1-S-2-SWSpiral plastic tubing · Tubing
PUN-6X1-S-6-SWSpiral plastic tubing · Tubing
PUN-6X1-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-S-6-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-SI-500Plastic tubing · Tubing
PUN-6X1-BL-500Plastic tubing · Tubing
PEN-6X1-SWPlastic tubing · Tubing
PEN-6X1-NTPlastic tubing · Tubing
PAN-6X1-NTPlastic tubing · Tubing
PEN-6X1-SW-500Plastic tubing · Tubing
PEN-6X1-BL-500Plastic tubing · Tubing
PEN-6X1-SI-500Plastic tubing · Tubing
PEN-6X1-BLPlastic tubing · Tubing
PEN-6X1-SIPlastic tubing · Tubing
PEN-6X1-GNPlastic tubing · Tubing
PEN-6X1-RTPlastic tubing · Tubing
PEN-6X1-GEPlastic tubing · Tubing
PUNPlastic tubing · Tubing
PANPlastic tubing · Tubing
PENPlastic tubing · Tubing
PLNPlastic tubing · Tubing
PAN-6X1-SI-500Plastic tubing · Tubing
PAN-6X1-BL-500Plastic tubing · Tubing
PAN-6X1-SW-500Plastic tubing · Tubing
PAN-6X1-BLPlastic tubing · Tubing
PAN-6X1-SWPlastic tubing · Tubing
PAN-6X1-GNPlastic tubing · Tubing
PAN-6X1-RTPlastic tubing · Tubing
PAN-6X1-GEPlastic tubing · Tubing
PUN-6X1-SW-500Plastic tubing · Tubing
PUN-H-6X1-SW-500Plastic tubing · Tubing
PUN-H-6X1-BL-500Plastic tubing · Tubing
PUN-H-6X1-NT-500Plastic tubing · Tubing
PUN-H-6X1-SI-500Plastic tubing · Tubing
PUN-H-6X1-SIPlastic tubing · Tubing
PUN-H-6X1-RTPlastic tubing · Tubing
PUN-H-6X1-GNPlastic tubing · Tubing
PUN-H-6X1-GEPlastic tubing · Tubing
PUN-H-6X1-TBL-500Plastic tubing · Tubing
PUN-H-6X1-TSWPlastic tubing · Tubing
PUN-H-6X1-TSW-500Plastic tubing · Tubing
PUN-H-6X1-TRTPlastic tubing · Tubing
PUN-H-6X1-TRT-500Plastic tubing · Tubing
PUN-H-6X1-TGNPlastic tubing · Tubing
PUN-H-6X1-TGN-500Plastic tubing · Tubing
PUN-H-6X1-TGEPlastic tubing · Tubing
PUN-H-6X1-TGE-500Plastic tubing · Tubing
PTFEN-6X1-NT-100Plastic tubing · Tubing
PTFEN-6X1-NT-500Plastic tubing · Tubing
PUN-H-F-6X1-RTPlastic tubing · Tubing
PUN-H-F-6X1-BLPlastic tubing · Tubing
PUN-H-F-6X1-TBLPlastic tubing · Tubing
PUN-H-F-6X1-GNPlastic tubing · Tubing
PUN-H-F-6X1-GEPlastic tubing · Tubing
PUN-H-F-6X1-SWPlastic tubing · Tubing
PUN-H-F-6X1-NTPlastic tubing · Tubing
PUN-H-SF-6X1,25-SWPlastic tubing · Tubing
PUN-H-SF-6X1,25-BLPlastic tubing · Tubing
PUN-H-6X1-RT-25Plastic tubing · Tubing
PUN-H-6X1-BL-25Plastic tubing · Tubing
PUN-H-6X1-SW-25Plastic tubing · Tubing
PUN-H-6X1-TBL-25Plastic tubing · Tubing
