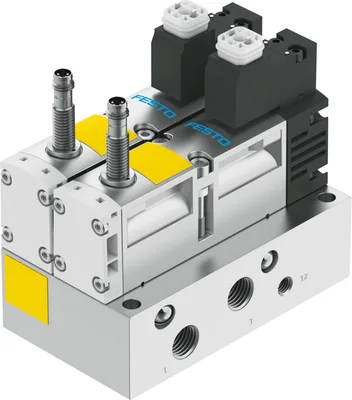

Festo VOFA-L26-T32C-MZ-G14-1C1-APP

Control block. Redundantly designed valve block for safe reversing of a hazardous movement or for safely exhausting pneumatic drives. Can be selected as a decentralised individual connection variant with electrical and pneumatic individual connection or as a feature integrated in the valve terminal VTSA/VTSA-F. Equipped with valves VSVA. Switching position sensing by sensors. With safety functions. Suitable for use as a press safety valve in accordance with ISO 16092-4

FestoMFR # VOFA-L26-T32C-MZ-G14-1C1-APPSKU # YLSEZDX9YOWO26

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width65

pneumatic working portG1/4

Operating voltage24 V DC

Operating pressure0, 1

Have questions?Chat on WhatsApp

About This Product

Festo VOFA-L26-T32C-MZ-G14-1C1-APP

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width65

Standard nominal flow rate (standardised to DIN 1343)1050

pneumatic working portG1/4

Operating voltage24 V DC

Operating pressure0, 1

Operating pressure0, 10

Operating pressure0, 145

DesignPiston gate valve

Type of resetMechanical spring

Degree of protectionIP65, NEMA 4

ApprovalUL – Recognized (OL)

CE mark (see declaration of conformity)To EU EMC Directive, To EC Machinery Directive

UKCA marking (see declaration of conformity)To UK regulations for machines

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardEN 60947-5-2

Manual overrideNone

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionNon-reversible

Symbol00997399

Measuring principleInductive

lapOverlap

Reverse polarity protection sensorFor all electrical connections

Safety functionExhaust, Protection against manipulation, prevention of unexpected start-up

Performance Level (PL)Exhausting/up to category 4, performance level e, Protection against manipulation, prevention of unexpected start-up/up to category 4, Performance Level e

Note on forced dynamizationSwitching frequency min. 1/week

Signal status displayWith accessories

Switching position sensingNormal position with sensor

Switching status display sensorLED

Pilot pressure0.3, 1

Pilot pressure3, 10

Suitability for vacuumNo

Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)2650

Standard flow rate exhaust 0.6->0 MPa (6->0 bar, 87->0 psi) in case of error1050

Switching time off54

Switching time on24

Valve - sensor switching time on58

Valve - sensor switching time off11

Duty cycle100%

Max. positive test pulse with 0 signal1000

Max. negative test pulse with 1 signal800

Switching outputPNP

Characteristic coil data24 V DC: 1.8 W

Permissible voltage fluctuations-15% / +10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Max. magnetic interference field60 mT

Media temperature-5, 50

Sound pressure level85

Protection against direct and indirect contactPELV, Protection class to EN60950/IEC 950

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Nominal altitude of use1000 m in accordance with VDE 0580

Product weight1134

Operating voltage range, DC sensor10, 30

Short-circuit strength sensorPulsed

Idle current sensor10

Max. output current sensor200

Max. switching frequency sensor5000

Residual ripple sensor±10%

Voltage drop sensor2

Electrical connectionType C, To EN 175301-803, Without PE conductor

Sensor connectionPlug, 3-pin, M8x1

Type of mountingWith through-hole

Pilot air port 12/14M7

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/4

Note on materialsRoHS compliant

Material sealsFluoro rubber, HNBR, NBR

Material housingDie-cast aluminium, PA

Material screwsGalvanised steel

Switching element functionN/C contact

Accessories 13

Genuine accessories that can be used with the Festo VOFA-L26-T32C-MZ-G14-1C1-APP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KMEB-2-24-2,5-LED	Plug socket with cable · Electrical accessories
KMEB-2-24-5-LED	Plug socket with cable · Electrical accessories
KMEB-2-24-M12-0,5-LED	Plug socket with cable · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
