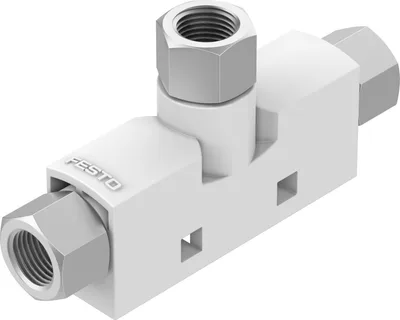

Festo VN-10-H-T3-PI4-VI4-RI4

Vacuum generator. Can be used directly in the work space. Available as straight type (in-line: vacuum port in line with the supply port) or T-shape (standard: vacuum port at 90° to the supply port). Compact and cost-effective. Maintenance-free operation and reduced noise level through an integrated, open silencer. Variants recommended for production systems for manufacturing lithium-ion batteries

FestoMFR # VN-10-H-T3-PI4-VI4-RI4SKU # CEY-937FC7821C52

Nominal size, Laval nozzle0.95

Grid dimension14

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

DesignT-shape

Symbol00991490

Have questions?Chat on WhatsApp

About This Product

Festo VN-10-H-T3-PI4-VI4-RI4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.95

Grid dimension14

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

DesignT-shape

Symbol00991490

Operating pressure for max. suction flow rate3.1

Operating pressure1, 8

Operating pressure for max. vacuum4.5

Max. vacuum89

Nominal operating pressure6

Max. suction flow rate against atmosphere25

Air supply time at nominal operating pressure1.1

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 60

Ambient temperature0, 60

Max. tightening torque0.5

Product weight22

Type of mountingWith through-hole, With accessories

Pneumatic connection, port 1G1/8

Pneumatic connection, port 3G1/8

Vacuum connectionG1/8

Material connecting threadAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material housingReinforced POM

Material transmitter nozzleWrought aluminium alloy

Accessories 43

Genuine accessories that can be used with the Festo VN-10-H-T3-PI4-VI4-RI4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
U-1/8	Silencer · Silencer
VN-T3-BP-NRH	Mounting plate · Mounting accessories
PUN-H-8X1,25-NT	Plastic tubing · Tubes
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
QS-G1/8-8	Push-in fitting · Fittings
QS-G1/8-8-I	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
CK-1/8-PK-4	Quick connector · Quick connectors
CK-1/8-PK-6	Quick connector · Quick connectors
CK-1/8-PK-4-KU	Quick connector · Quick connectors
CK-1/8-PK-6-KU	Quick connector · Quick connectors
U-1/8-B	Silencer · Silencer
CN-1/8-PK-4	Barbed fitting · Barbed fittings
CN-1/8-PK-6	Barbed fitting · Barbed fittings
CRCN-1/8-PK-4	Barbed fitting · Stainless-steel fittings
CRCN-1/8-PK-6	Barbed fitting · Stainless-steel fittings
NRH-35-2000	DIN mounting rail · Mounting accessories
QS-1/8-4-100	Push-in fitting · Push-in fittings
QS-1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-6-100	Push-in fitting · Push-in fittings
QS-V0-1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-1/8-6-I-100	Push-in fitting · Push-in fittings
QS-1/8-4-I-100	Push-in fitting · Push-in fittings
QS-1/8-4	Push-in fitting · Push-in fittings
QS-1/8-6	Push-in fitting · Push-in fittings
QS-1/8-4-I	Push-in fitting · Push-in fittings
QS-1/8-6-I	Push-in fitting · Push-in fittings
QS-V0-1/8-6	Push-in fitting · Push-in fittings
UC-1/8	Silencer · Silencer
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-6	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QS-V0-G1/8-6	Push-in fitting · Push-in fittings
UC-1/8-50	Silencer · Silencer
U-1/8-50	Silencer · Silencer
AMTE-M-LH-G18	Silencer · Silencer
AMTE-M-H-G18	Silencer · Silencer
