How can I get a price quote for FESTO VMPA1-IC-AP-S-1?

You can request a fast quote for FESTO VMPA1-IC-AP-S-1 from Yılsa Engineering. Reference part number CEY-937FC7820FC1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VMPA1-IC-AP-S-1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VMPA1-IC-AP-S-1 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VMPA1-IC-AP-S-1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

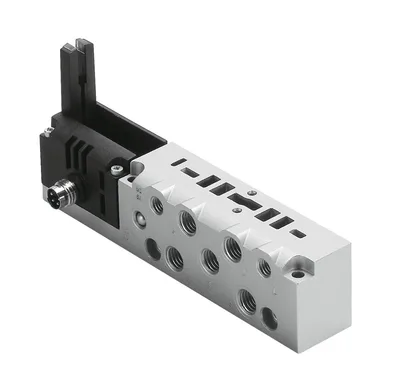

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VMPA1-IC-AP-S-1

Sub-base

FESTOMFR # VMPA1-IC-AP-S-1SKU # CEY-937FC7820FC1

Width20.2

Length107.3

Grid dimension10.5

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Pilot pressure0.3, 0.8

Have questions?Chat on WhatsApp

About This Product

FESTO VMPA1-IC-AP-S-1 (Sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VMPA1-IC-AP-S-1 — price, stock availability and technical specifications.

FESTO VMPA1-IC-AP-S-1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Width20.2

Length107.3

Grid dimension10.5

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Approvalc UL us - Recognised (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-5, 50

Product weight92

Electrical connectionM8, Plug

Mounting method for sub-baseWith through-hole

Pilot air port 12/14M5

Pilot exhaust port 82/84M5

Pneumatic connection, port 1M7

Pneumatic connection, port 2M7

Pneumatic connection, port 3M7

Pneumatic connection, port 4M7

Pneumatic connection, port 5M7

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Accessories 23

Genuine accessories that can be used with the FESTO VMPA1-IC-AP-S-1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
B-M5	Blanking plug · Other connectors
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSM-M7-4-I	Push-in fitting · Push-in fittings
QSM-M7-6-I	Push-in fitting · Push-in fittings
D-M5I-M7A-ISK	Reducing nipple · Other connectors
UC-M7	Silencer · Silencer
UC-M5	Silencer · Silencer
UC-QS-3H	Silencer · Silencer
UC-QS-4H	Silencer · Silencer
UC-QS-6H	Silencer · Silencer
B-M7	Blanking plug · Other connectors
B-M5-100	Blanking plug · Other connectors
UC-M5-50	Silencer · Silencer
UC-M7-50	Silencer · Silencer
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-10-N-LE4	Connecting cable · Connecting cables
B-M5-F1A	Blanking plug · Other connectors
B-M7-F1A	Blanking plug · Other connectors
