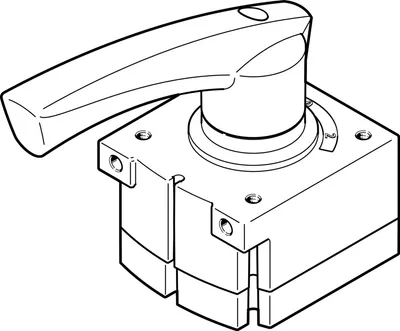

Festo VHER-H-B43C-B-G18

Hand lever valve. Lever in metal or polymer design. Front panel mounting, through holes or mounting holes

FestoMFR # VHER-H-B43C-B-G18SKU # YLSA15JTEU9OEG

Valve function4/3-way, closed

Type of actuationManual

Construction width42

pneumatic working portG1/8

Operating pressure0, 10

DesignRotary switching valve

Have questions?Chat on WhatsApp

About This Product

Hand lever valve. Lever in metal or polymer design. Front panel mounting, through holes or mounting holes

Festo VHER-H-B43C-B-G18

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function4/3-way, closed

Type of actuationManual

Construction width42

Standard nominal flow rate (standardised to DIN 1343)800

pneumatic working portG1/8

Operating pressure0, 10

Note on operating pressureIn the case of dual-pressure operation, the pressure at port 1 must be higher than at port 3.

DesignRotary switching valve

Nominal size6

Exhaust-air functionCan be throttled

Instructions on useActuate manually only

Sealing principleHard

Type of pilotingDirect

Flow directionNon-reversible

Symbol00995942

OverlapYes

Switching position indicatorWith accessories

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-20, 80

Ambient temperature-20, 80

Actuating torque0.9

Product weight220

Type of mountingWith through-hole

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4G1/8

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Material leverDie-cast aluminium

Accessories 33

Genuine accessories that can be used with the Festo VHER-H-B43C-B-G18 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
B-1/8	Blanking plug · Fittings
U-1/8	Silencer · Silencer
QS-G1/8-8	Push-in fitting · Fittings
U-1/8-50	Silencer · Silencer
QS-G1/8-8-I	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
PUN-H-8X1,25-NT	Plastic tubing · Tubes
B-1/8-100	Blanking plug · Fittings
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
SME-10-KL-LED-24	Proximity sensor · Proximity sensors
SME-10-SL-LED-24	Proximity sensor · Proximity sensors
U-1/8-B	Silencer · Silencer
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-8-50	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
UC-1/8	Silencer · Silencer
SME-10-KQ-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-10-SQ-LED-24	Proximity sensor · Cylinder sensors for direct mounting
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-6	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QSM-G1/8-4	Push-in fitting · Push-in fittings
QSM-G1/8-6	Push-in fitting · Push-in fittings
QSM-G1/8-4-I	Push-in fitting · Push-in fittings
QSM-G1/8-6-I	Push-in fitting · Push-in fittings
UC-1/8-50	Silencer · Silencer
B-1/8-F1A	Blanking plug · Other connectors
