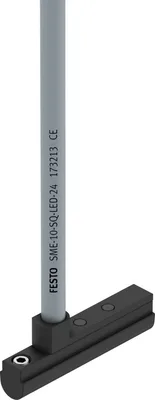

FESTO SME-10-SQ-LED-24

Proximity sensor. Measuring principle: magnetic reed. Insertable in the slot lengthwise. LED switching status indication. Cable length 0.3, 2.5 m

FESTOMFR # SME-10-SQ-LED-24SKU # CEY-937FC7823B32

DesignFor C-slot

Conforms to standardEN 60947-5-2

Symbol00991619

ApprovalRCM

Note on materialsRoHS compliant

Measured variablePosition

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. Insertable in the slot lengthwise. LED switching status indication. Cable length 0.3, 2.5 m

FESTO SME-10-SQ-LED-24

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor C-slot

Conforms to standardEN 60947-5-2

Symbol00991619

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-20, 70

Repetition accuracy0.2

Switching outputContacting, bipolar

Switching element functionN/O contact

Switch-on time0.6

Switch-off time0.05

Max. switching frequency500

Max. output current100

Max. switching capacity DC1

Voltage drop0

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range AC12, 27

Operational voltage range DC12, 27

Reverse polarity protectionNo

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

Electrical connection 1, connection pattern00991155

Connection outlet orientationLateral

Cable length0.3

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Type of mountingClamped in C-slot, Inserted into the slot lengthwise

Tightening torque0.1

Mounting positionAny

Product weight5

Housing colourBlack

Material housingPPS, TPE-U(PU), High-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 70

Degree of protectionIP65, IP67

Insulation voltage50

Immunity to surge0.8

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Accessories 14

Genuine accessories that can be used with the FESTO SME-10-SQ-LED-24 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMM-10	Positioning element · Mounting accessories
NEDY-L2R1-V1-M8G3-U-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-M12G4-5R	Distributor · Electrical accessories
SMBK-10	Clip · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEDY-L2R1-V1-M8G3-U-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-M8G4-5R	Distributor · Electrical accessories
NEDY-	Distributor · Electrical accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEAU-LH-1	Inscription label holder · General accessories
