How can I get a price quote for Festo VAEM-L1-S-24-AP?

You can request a fast quote for Festo VAEM-L1-S-24-AP from Yılsa Engineering. Reference part number YLSXKNCCHXCEBBY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VAEM-L1-S-24-AP in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VAEM-L1-S-24-AP genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VAEM-L1-S-24-AP?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

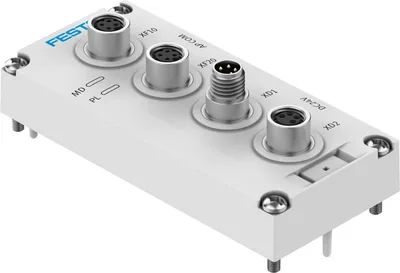

Festo VAEM-L1-S-24-AP

Electrical interface

FestoMFR # VAEM-L1-S-24-APSKU # YLSXKNCCHXCEBBY

Dimensions (W x L x H)42 mm x 91 mm x 30 mm

Position of connectionOn top

Max. number of valve positions24

Max. number of valve coils48

Reverse polarity protectionYes

Fuse protection (short circuit)Internal electronic fuse per channel

Have questions?Chat on WhatsApp

About This Product

Festo VAEM-L1-S-24-AP (Electrical interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VAEM-L1-S-24-AP — price, stock availability and technical specifications.

Festo VAEM-L1-S-24-AP

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)42 mm x 91 mm x 30 mm

Position of connectionOn top

Diagnostics via LEDDiagnostics per module, Load power supply

Diagnostics per internal communicationElectronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Max. number of valve positions24

Max. number of valve coils48

Reverse polarity protectionYes

Module parametersConfiguration of voltage monitoring load supply PL, Behaviour in error state

Fuse protection (short circuit)Internal electronic fuse per channel

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 34 mA

Intrinsic current consumption at nominal operating voltage loadTypically 22 mA

Nominal DC operating voltage, electronics/sensors24

Nominal operating voltage DC of load24

Power failure bridging10

Power failure buffering of load3

Permissible voltage fluctuations for electronics/sensors±25%

Permissible voltage fluctuation of load±10%

Max. power supply2 x 4 A (external fuse required)

Power supply, functionIncoming electronics/sensors and load

Power supply, connection typePlug

power supply, connection systemM8x1, A-coded to EN 61076-2-104

Power supply, number of pins/wires4

Power transmission, functionOutgoing electronics/sensors and load

Power transmission, connection typeSocket

Power transmission, connection technologyM8x1, A-coded to EN 61076-2-104

Power transmission, number of pins/wires4

Communication interface, connection type2x socket

Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114

Communication interface, number of pins/cores4

Communication interface, functionSystem communication XF10 IN / XF20 OUT

Communication interface, protocolAP-COM

Communication interface, screenedYes

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

KC markKC-EMV

Max. cable length50 m system communication

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Relative air humidity5 - 95%, Non-condensing

Protection against direct and indirect contactPELV, Safety extra-low voltage

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state, Unused connections sealed

Ambient temperature-5, 60

ApprovalRCM, c UL us - Recognised (Oil)

Nominal altitude of use<= 2000 m NHN

Product weight76

Type of mountingScrew-clamped

Material housingReinforced PA

Material threaded sleeveNickel-plated brass

Note on materialsRoHS compliant
