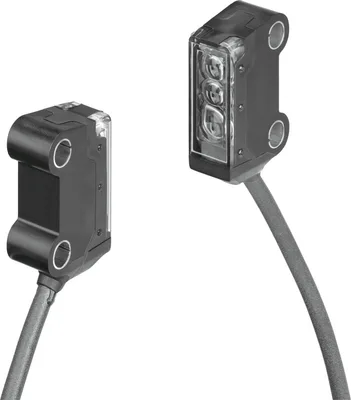

Festo SOOD-TB-L-PN

Light barrier. Simple operation. Fast commissioning. Reliable and stable detection. Attractive price/performance ratio

FestoMFR # SOOD-TB-L-PNSKU # YLSTGX0ZOELMPS7

DesignBlock design

Conforms to standardEN 60947-5-2

Symbol00995974

ApprovalRCM, c UL us - Recognised (Oil)

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant

Have questions?Chat on WhatsApp

About This Product

Light barrier. Simple operation. Fast commissioning. Reliable and stable detection. Attractive price/performance ratio

Festo SOOD-TB-L-PN

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignBlock design

Conforms to standardEN 60947-5-2

Symbol00995974

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant

Measuring principleOptoelectronic

Detection methodThrough-beam sensor, Transmitter, Receiver

Type of lightLaser, Red

Max. light spot20 mm with 10000 mm

Operating distance0, 10000

Ambient temperature-20, 60

Switching outputPush-pull

Switching element functionPNP dark switching, NPN light switching

Max. switching frequency2000

Max. output current50

Voltage drop0, 1.5

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current11

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingScrew-type lock with AF9

Electrical connection 1, connection pattern00991155

Material electrical contactGold-plated brass

Cable length0.15

Cable characteristicStandard

Material cable sheathTPE-U(PUR)

Type of mountingWith through-hole

Tightening torque0.5

Mounting positionAny

Product weight20

Material housingMakrolon®, TPE-U(PU)

Ready status indicationGreen LED

Switching status indicationYellow LED

Function reserve indicationFlashing yellow LED

Degree of protectionIP65, IP67

Insulation voltage500

Immunity to surge1

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Laser safety class1

Pollution degree3

Accessories 12

Genuine accessories that can be used with the Festo SOOD-TB-L-PN motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SAMH-L2-L-A	Mounting bracket · Mounting accessories
SAMH-L2-A	Mounting bracket · Mounting accessories
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NECB-S-M12G5-C2	Plug · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NECB-S-M12G4-C2	Plug · Electrical accessories
NECB-S-M12G4-C2-D	Plug · Electrical accessories
NECB-S-M12G5-C2-D	Plug · Electrical accessories
