How can I get a price quote for FESTO SDE5-D10-C-Q4E-P-M8?

You can request a fast quote for FESTO SDE5-D10-C-Q4E-P-M8 from Yılsa Engineering. Reference part number CEY-937FC781F521. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SDE5-D10-C-Q4E-P-M8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SDE5-D10-C-Q4E-P-M8 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SDE5-D10-C-Q4E-P-M8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

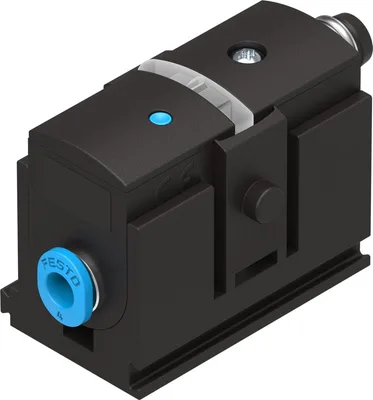

FESTO SDE5-D10-C-Q4E-P-M8

Pressure sensor. Programmable and configurable pressure switch for simple pressure sensing tasks. Threshold/window comparator. Switching point adjustment via teach-in function. Integrated microprocessor. Switching status indicated by an LED visible from all sides. Certification: c UL us listed (OL), C-Tick. Sustainable operation thanks to pressure monitoring

FESTOMFR # SDE5-D10-C-Q4E-P-M8SKU # CEY-937FC781F521

ApprovalRCM, c UL us - Recognised (Oil)

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Start value for pressure measuring range0

End value for pressure measuring range10

Have questions?Chat on WhatsApp

About This Product

FESTO SDE5-D10-C-Q4E-P-M8

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Start value for pressure measuring range0

End value for pressure measuring range10

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible

Media temperature0, 50

Ambient temperature0, 50

Repetition accuracy in ± %FS0.3

Temperature coefficient in ± %FS/K0.05

Switching outputPNP

Switching functionThreshold value with fixed hysteresis

Switching element functionN/C contact

Max. output current100

Short circuit current ratingYes

Operational voltage range DC15, 30

Reverse polarity protectionFor all electrical connections

Electrical connection3-pin, M8x1, Plug, To EN 60947-5-2, Round design

Type of mountingWith accessories

Mounting positionAny

Pneumatic connectionQS-4

Product weight19

Material housingPA, POM

Switching status indicationYellow LED

Setting range threshold value0, 100

Degree of protectionIP40

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Accessories 47

Genuine accessories that can be used with the FESTO SDE5-D10-C-Q4E-P-M8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PEN-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
PAN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-5R	Distributor · Electrical accessories
PTFEN-4X0,5-NT-100	Plastic tubing · Tubing
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
