How can I get a price quote for FESTO QSC-4-100?

You can request a fast quote for FESTO QSC-4-100 from Yılsa Engineering. Reference part number CEY-937FC7826666. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO QSC-4-100 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO QSC-4-100 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO QSC-4-100?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

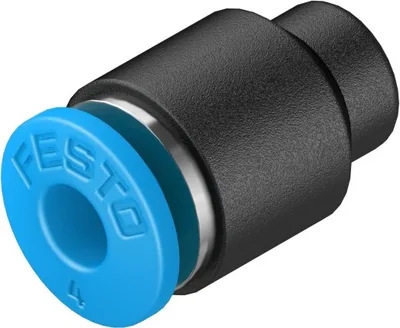

FESTO QSC-4-100

Push-in cap. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FESTOMFR # QSC-4-100SKU # CEY-937FC7826666

SizeStandard

Tubing insertion depth14.9

Mounting positionAny

DesignBlanking plug

Size of pack100

DesignPush-pull principle

Have questions?Chat on WhatsApp

About This Product

FESTO QSC-4-100

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Tubing insertion depth14.9

Mounting positionAny

DesignBlanking plug

Size of pack100

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1.4

Temperature-dependent operating pressure-0.95, 14

Temperature-dependent operating pressure-13.775, 203

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Ambient temperature-10, 80

Product weight2.4

Pneumatic connection, port 1For tubing outer diameter of 4 mm

Colour of release ringBlue

Note on materialsRoHS compliant

Material housingPBT

Material release ringPOM

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel

Accessories 39

Genuine accessories that can be used with the FESTO QSC-4-100 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSO	Release tool · General accessories
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
PUN-4X0,75-SI	Plastic tubing · Tubing
PUN-4X0,75-DUO-SI	DUO tubing · Tubing
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-DUO-BS	DUO tubing · Tubing
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PUN-4X0,75-S-0,5-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-BL	Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-SW	Spiral plastic tubing · Tubing
PUN-4X0,75-S-0,5-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-S-1,5-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PAN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
