How can I get a price quote for FESTO OGGB-100-G18-2?

You can request a fast quote for FESTO OGGB-100-G18-2 from Yılsa Engineering. Reference part number CEY-937FC781BC89. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO OGGB-100-G18-2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO OGGB-100-G18-2 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO OGGB-100-G18-2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

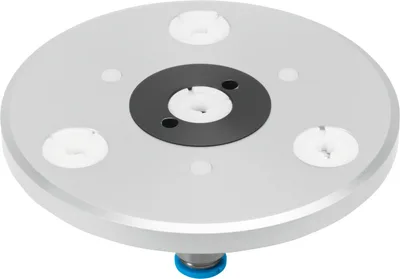

FESTO OGGB-100-G18-2

Bernoulli-gripper. Ideally suited to transporting thin, extremely delicate and brittle workpieces. Minimised workpiece contact, gentle workpiece handling. Low energy costs thanks to minimised air consumption. The ideal solution for low-contact gripping and for gripping pliable, porous and brittle workpieces

FESTOMFR # OGGB-100-G18-2SKU # CEY-937FC781BC89

Mounting positionAny

Position of connectiontop/side

Symbol00995229

Gripper diameter100

Operating pressure0, 6

Nominal operating pressure1

Have questions?Chat on WhatsApp

About This Product

FESTO OGGB-100-G18-2

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Mounting positionAny

Position of connectiontop/side

Symbol00995229

Gripper diameter100

Operating pressure0, 6

Nominal operating pressure1

Air consumption at nominal operating pressure110

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

LABS (PWIS) conformityVDMA24364-B2-L

Corrosion resistance class CRC2 - Moderate corrosion stress

Media temperature0, 60

Ambient temperature0, 60

Sound pressure level at nominal operating pressure65

Sound level at nominal operating pressure78

Holding force at nominal operating pressure7

Lateral force at nominal operating pressure1

Type of mountingWith female thread

Pneumatic connectionG1/8

alternative connectionsG1/8

Note on materialsRoHS compliant

Material housinganodised

Material spacerPOM

Product weight210

Accessories 19

Genuine accessories that can be used with the FESTO OGGB-100-G18-2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/8-6-I	Push-in fitting · Fittings
QS-G1/8-6	Push-in fitting · Fittings
QS-1/8-4-100	Push-in fitting · Push-in fittings
QS-1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-6-100	Push-in fitting · Push-in fittings
QS-V0-1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-1/8-6-I-100	Push-in fitting · Push-in fittings
QS-1/8-4-I-100	Push-in fitting · Push-in fittings
QS-1/8-4	Push-in fitting · Push-in fittings
QS-1/8-6	Push-in fitting · Push-in fittings
QS-1/8-4-I	Push-in fitting · Push-in fittings
QS-1/8-6-I	Push-in fitting · Push-in fittings
QS-V0-1/8-6	Push-in fitting · Push-in fittings
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-V0-G1/8-6	Push-in fitting · Push-in fittings
