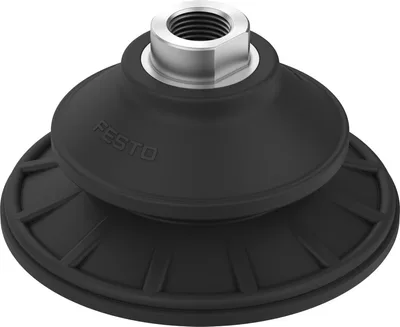

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VASB-40-1/4-NBR-F1A

Suction cup with connection. Sturdy and reliable. Suction cups with fixed connecting thread. 11 suction cup diameters. Round suction cup, bellows. Vacuum connection on top, on side. Screw-in thread. Variants suitable for battery production according to F1A

FestoMFR # VASB-40-1/4-NBR-F1ASKU # YLSMTHRPDOSH766

Height compensator for suction cup13.7

Nominal size4

Suction cup diameter40

Suction cup volume11.11

Effective suction diameter32

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

Festo VASB-40-1/4-NBR-F1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup13.7

Nominal size4

Suction cup diameter40

Suction cup volume11.11

Effective suction diameter32

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound protective bellows 1.5-fold

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.07

Nominal operating pressure-0.7

Nominal operating pressure-10.15

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1/A2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Ambient temperature-20, 80

Holding force at nominal operating pressure56

Product weight17.1

Type of mountingVia vacuum port

Vacuum connectionG1/4

ColourBlack

Shore hardness60 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupNBR
