How can I get a price quote for FESTO MSB6-1/2:C3J1M1-WP?

You can request a fast quote for FESTO MSB6-1/2:C3J1M1-WP from Yılsa Engineering. Reference part number CEY-937FC781F567. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MSB6-1/2:C3J1M1-WP in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MSB6-1/2:C3J1M1-WP genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MSB6-1/2:C3J1M1-WP?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

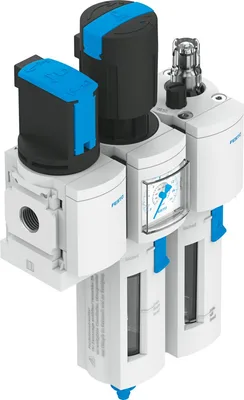

FESTO MSB6-1/2:C3J1M1-WP

Service unit combination. Grid dimension 62 mm. Predefined or freely configurable combinations of service unit components. Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module

FESTOMFR # MSB6-1/2:C3J1M1-WPSKU # CEY-937FC781F567

Size6

SeriesMS

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainManual, rotating

DesignStandard mist lubricators

Have questions?Chat on WhatsApp

About This Product

FESTO MSB6-1/2:C3J1M1-WP

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Actuator lockRotary knob with detent, can be closed with accessories

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainManual, rotating

DesignStandard mist lubricators

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

Bowl guardPlastic bowl guard

Symbol00991595

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure1.5, 18

Pressure regulation range1, 12

Standard nominal flow rate (standardised to DIN 1343)3100

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Suitable for use with foodSee supplementary material information

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:-]

Media temperature-10, 60

Ambient temperature-10, 60

Product weight1750

Type of mountingWith accessories

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Pneumatic connection, port 3G1/2

Note on materialsRoHS compliant

Material housingDie-cast aluminium

Material bowlMakrolon®

Accessories 147

Genuine accessories that can be used with the FESTO MSB6-1/2:C3J1M1-WP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
U-1/2	Silencer · Silencer
PUN-H-12X2-SW	Plastic tubing · Tubes
AMTE-M-LH-G12	Silencer · Silencer
PUN-H-12X2-TBL-200	Plastic tubing · Tubes
PUN-H-12X2-NT	Plastic tubing · Tubes
LRVS-D	Padlock · General accessories
PUN-H-12X2-BL	Plastic tubing · Tubes
MS6-LFP-E	Filter cartridge · General accessories
OFSW-32	Special oil · General accessories
QS-G1/2-16	Push-in fitting · Fittings
QSL-G1/2-16	Push-in L-fitting · Fittings
PUN-H-16X2,5-NT	Plastic tubing · Tubes
U-1/2-B	Silencer · Silencer
PUN-H-16X2,5-BL	Plastic tubing · Tubes
PUN-H-16X2,5-SW	Plastic tubing · Tubes
MS6-MV1	Module connector · Mounting accessories
MS6-AGF	Connecting plate SET · Mounting accessories
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T quick connector · Quick connectors
QSW-1/2-12	Push-in fitting · Push-in fittings
QSW-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-20	Push-in fitting · Push-in fittings
QS-1/2-16-20	Push-in fitting · Push-in fittings
QSL-1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-1/2-10-50	Push-in fitting · Push-in fittings
QSL-1/2-10-50	Push-in L-fitting · Push-in fittings
QSY-1/2-10	Push-in Y-fitting · Push-in fittings
QS-1/2-12	Push-in fitting · Push-in fittings
QS-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-I	Push-in fitting · Push-in fittings
QSL-1/2-12	Push-in L-fitting · Push-in fittings
QSL-1/2-16	Push-in L-fitting · Push-in fittings
QSLL-1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-1/2-12	Push-in L-fitting · Push-in fittings
QSLV-1/2-16	Push-in L-fitting · Push-in fittings
QSLV-1/2-12-I	Push-in L-fitting · Push-in fittings
QST-1/2-12	Push-in T-fitting · Push-in fittings
QST-1/2-16	Push-in T-fitting · Push-in fittings
QSTL-1/2-12	Push-in T-fitting · Push-in fittings
QSTL-1/2-16	Push-in T-fitting · Push-in fittings
QSY-1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-1/2-12-B	Push-in T-fitting · Push-in fittings
QSYLV-1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-1/2-12-B	Multiple distributor · Push-in fittings
QSLV2-1/2-12	Multiple distributor · Push-in fittings
QSLV3-1/2-12	Multiple distributor · Push-in fittings
QSLV4-1/2-12	Multiple distributor · Push-in fittings
QSLV6-1/2-12	Multiple distributor · Push-in fittings
QSR-1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-1/2-10	Push-in fitting · Push-in fittings
QS-V0-1/2-12	Push-in fitting · Push-in fittings
QST-V0-1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-1/2-12	Push-in T-fitting · Push-in fittings
CQ-1/2-12	Push-in fitting · Connection accessories
CQ-1/2-15	Push-in fitting · Connection accessories
CQ-1/2-18	Push-in fitting · Connection accessories
QS-1/2-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-1/2-1/2-I-U-M	Push-in fitting · Push-in fittings
QS-G1/2-12	Push-in fitting · Push-in fittings
QS-G1/2-12-I	Push-in fitting · Push-in fittings
QSL-G1/2-12	Push-in L-fitting · Push-in fittings
QSLL-G1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-G1/2-12	Push-in L-fitting · Push-in fittings
QSLV-G1/2-16	Push-in L-fitting · Push-in fittings
QSLV-G1/2-12-I	Push-in L-fitting · Push-in fittings
QST-G1/2-12	Push-in T-fitting · Push-in fittings
QST-G1/2-16	Push-in T-fitting · Push-in fittings
QSTL-G1/2-12	Push-in T-fitting · Push-in fittings
QSTL-G1/2-16	Push-in T-fitting · Push-in fittings
QSY-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-G1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-G1/2-12	Push-in T-fitting · Push-in fittings
QSYLV-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-G1/2-12	Multiple distributor · Push-in fittings
QSLV2-G1/2-12	Multiple distributor · Push-in fittings
QSLV3-G1/2-12	Multiple distributor · Push-in fittings
QSLV4-G1/2-12	Multiple distributor · Push-in fittings
QSLV6-G1/2-12	Multiple distributor · Push-in fittings
QSR-G1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/2-10	Push-in fitting · Push-in fittings
QS-V0-G1/2-12	Push-in fitting · Push-in fittings
QST-V0-G1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-10	Push-in fitting · Push-in fittings
QS-1/2-10-I	Push-in fitting · Push-in fittings
QSL-1/2-10	Push-in L-fitting · Push-in fittings
QSLL-1/2-10	Push-in L-fitting, long · Push-in fittings
QSLL-G1/2-16	Push-in L-fitting, long · Push-in fittings
QST-1/2-10	Push-in T-fitting · Push-in fittings
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-MVM	Module connector · Mounting accessories
U-1/2-20	Silencer · Silencer
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
MS6-RMV	Module connector · Mounting accessories
MS6-E-IPM-40-80	Power supply module · Mounting accessories
MS6-E-IPM-80-80	Power supply module · Mounting accessories
MS6-A-IPM-80	Branching module · Mounting accessories
MS6-A-RMV-IPM-80	Branching module · Mounting accessories
CK-1/2-PK-9	Quick connector · Quick connectors
MS6-9-ARMV	Module connector · Mounting accessories
MS6-RMV-EX	Module connector · Mounting accessories
AMTE-M-H-G12	Silencer · Silencer
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS6-9-AMV	Module connector · Mounting accessories
MS6-9-AMV-EX	Module connector · Mounting accessories
NPFC-L-2G12-F	Elbow fitting · Push-in fittings
NPFC-Y-3G12-F	Y-fitting · Push-in fittings
NPFC-T-3G12-F	T-fitting · Push-in fittings
NPFC-T-2G12-R12-FMF	T-fitting · Push-in fittings
NPFC-T-G12-2R12-FMM	T-fitting · Push-in fittings
NPFC-X-4G12-F	X-fitting · Push-in fittings
NPFC-D-2G12-M	Double nipple · Push-in fittings
NPFC-S-2G12-F	Sleeve · Push-in fittings
NPFC-E1-2G12-FM	Extension · Push-in fittings
NPFC-R-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-FM	Reducing nipple · Push-in fittings
NPFC-D-2G12-M-P50	Double nipple · Push-in fittings
NPFC-D-G12-G34-M	Double nipple · Push-in fittings
NPFC-R-G12-G18-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G14-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G38-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G14-MF-P50	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF-P50	Reducing nipple · Push-in fittings
NPFC-H-G12-F	Bulkhead fitting · Push-in fittings
NPFC-DS-G14-G12-M	Double nipple · Push-in fittings
NPFC-DS-G38-G12-M	Double nipple · Push-in fittings
NPFC-DS-G12-G12-M	Double nipple · Push-in fittings
NPFC-RS-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-RS-G12-G38-MF	Reducing nipple · Push-in fittings
