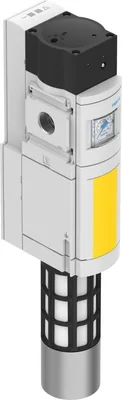

FESTO MS6-SV-1/2-E-10V24-SO-AG
Soft start/quick exhaust valve. With safety functions. For reducing pressure quickly and reliably and for building up pressure gradually. Adjustable pressure build-up time. Adjustable switch-through pressure. Supply voltage 24 V DC. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm
SeriesMS
Size6
Grid dimension62
Note on forced dynamizationSwitching frequency min. 1/month
DesignPiston seat
lapUnderlap
About This Product
Soft start/quick exhaust valve. With safety functions. For reducing pressure quickly and reliably and for building up pressure gradually. Adjustable pressure build-up time. Adjustable switch-through pressure. Supply voltage 24 V DC. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm
FESTO MS6-SV-1/2-E-10V24-SO-AG
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SeriesMS
Size6
Grid dimension62
Safety functionExhaust, Prevention of unexpected start-up (pressurisation)
Safety Integrity Level (SIL)Exhaust/SIL 3, Prevention of unexpected start-up (pressurisation)/SIL 3
Performance Level (PL)Exhausting/up to category 4, performance level e, Prevention of unexpected start-up (pressurisation)/up to category 4, performance level e
Note on forced dynamizationSwitching frequency min. 1/month
DesignPiston seat
lapUnderlap
Type of actuationElectrical
Pilot air supplyInternal
Sealing principleSoft
Exhaust-air functionCannot be throttled
Position detection principleMagnetic piston principle
Conforms to standardDIN EN ISO 13849-1, EN 61508-1-3
Manual overrideNone
Type of resetMechanical spring
Type of pilotingPiloted
Symbol00995704
Valve function3/2-way, single solenoid, closed, Soft-start function
Operating pressure0.35, 1
Operating pressure3.5, 10
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
C value19.3
b value0.21
Standard nominal flow rate (standardised to DIN 1343)4300
Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)9000
Max. switching frequency0.5
Switching time off40
Switching time on130
Duty cycle100%
Signal status displayLED, Potential-free contact
Nominal operating voltage DC24
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364-B1/B2-L
Sound pressure level75
Degree of protectionIP65, With plug socket
Media temperature-10, 50
Ambient temperature-10, 50
Storage temperature-10, 50
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK regulations for machines, To UK RoHS instructions
Certificate issuing authority01/205/5999.06/26
Type of mountingEither:, Inline installation, With accessories
Mounting positionAny
Product weight2200
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Pneumatic connection, port 3G1
Electrical connection9-pin, Sub-D
Material housingDie-cast aluminium
Material sealsNBR
Material piston rodHigh-alloy stainless steel
Accessories 147
Genuine accessories that can be used with the FESTO MS6-SV-1/2-E-10V24-SO-AG motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QS-G1/2-12 | Push-in fitting · Fittings | |
| NECA-S1G9-P9-MP5 | Multi-pin plug socket · Electrical accessories | |
| UOS-1 | Silencer · Silencer | |
| MS6-WPB | Mounting bracket · Mounting accessories | |
| NECA-S1G9-P9-MP1 | Multi-pin plug socket · Electrical accessories | |
| QS-G1/2-12-I | Push-in fitting · Fittings | |
| NECA-S1G9-P9-MP3 | Multi-pin plug socket · Electrical accessories | |
| MS6-9-AMV | Module connector · Mounting accessories | |
| QSL-G1/2-12 | Push-in L-fitting · Fittings | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T quick connector · Quick connectors | |
| QSW-1/2-12 | Push-in fitting · Other connectors | |
| QSW-1/2-16 | Push-in fitting · Other connectors | |
| QS-1/2-12-20 | Push-in fitting · Other connectors | |
| QS-1/2-16-20 | Push-in fitting · Other connectors | |
| QSL-1/2-12-20 | Push-in L-fitting · Other connectors | |
| QSL-1/2-16-20 | Push-in L-fitting · Other connectors | |
| QS-G1/2-12-20 | Push-in fitting · Other connectors | |
| QS-G1/2-16-20 | Push-in fitting · Other connectors | |
| QSL-G1/2-12-20 | Push-in L-fitting · Other connectors | |
| QSL-G1/2-16-20 | Push-in L-fitting · Other connectors | |
| QS-1/2-10-50 | Push-in fitting · Other connectors | |
| QSL-1/2-10-50 | Push-in L-fitting · Other connectors | |
| QSY-1/2-10 | Push-in Y-fitting · Other connectors | |
| QS-1/2-12 | Push-in fitting · Other connectors | |
| QS-1/2-16 | Push-in fitting · Other connectors | |
| QS-1/2-12-I | Push-in fitting · Other connectors | |
| QSL-1/2-12 | Push-in L-fitting · Other connectors | |
| QSL-1/2-16 | Push-in L-fitting · Other connectors | |
| QSLL-1/2-12 | Push-in L-fitting, long · Other connectors | |
| QSLV-1/2-12 | Push-in L-fitting · Other connectors | |
| QSLV-1/2-16 | Push-in L-fitting · Other connectors | |
| QSLV-1/2-12-I | Push-in L-fitting · Other connectors | |
| QST-1/2-12 | Push-in T-fitting · Other connectors | |
| QST-1/2-16 | Push-in T-fitting · Other connectors | |
| QSTL-1/2-12 | Push-in T-fitting · Other connectors | |
| QSTL-1/2-16 | Push-in T-fitting · Other connectors | |
| QSY-1/2-12 | Push-in Y-fitting · Other connectors | |
| QSYL-1/2-12 | Push-in Y-fitting · Other connectors | |
| QSYLV-1/2-12 | Push-in Y-fitting · Other connectors | |
| QSYTF-1/2-12-B | Multiple distributor · Other connectors | |
| QSLV2-1/2-12 | Multiple distributor · Other connectors | |
| QSLV3-1/2-12 | Multiple distributor · Other connectors | |
| QSLV4-1/2-12 | Multiple distributor · Other connectors | |
| QSLV6-1/2-12 | Multiple distributor · Other connectors | |
| QSR-1/2-12 | Push-in fitting, rotatable · Other connectors | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Other connectors | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Other connectors | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Other connectors | |
| QS-V0-1/2-10 | Push-in fitting · Other connectors | |
| QS-V0-1/2-12 | Push-in fitting · Other connectors | |
| CQ-1/2-12 | Push-in fitting · Connection accessories | |
| CQ-1/2-15 | Push-in fitting · Connection accessories | |
| CQ-1/2-18 | Push-in fitting · Connection accessories | |
| CQ-1/2-12H | Push-in fitting · Connection accessories | |
| CQ-1/2-15H | Push-in fitting · Connection accessories | |
| CQ-1/2-18H | Push-in fitting · Connection accessories | |
| CQ-1/2-22H | Push-in fitting · Connection accessories | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Other connectors | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Other connectors | |
| QS-G1/2-16 | Push-in fitting · Other connectors | |
| QSL-G1/2-16 | Push-in L-fitting · Other connectors | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Other connectors | |
| QSLV-G1/2-12 | Push-in L-fitting · Other connectors | |
| QSLV-G1/2-16 | Push-in L-fitting · Other connectors | |
| QSLV-G1/2-12-I | Push-in L-fitting · Other connectors | |
| QST-G1/2-12 | Push-in T-fitting · Other connectors | |
| QST-G1/2-16 | Push-in T-fitting · Other connectors | |
| QSTL-G1/2-12 | Push-in T-fitting · Other connectors | |
| QSTL-G1/2-16 | Push-in T-fitting · Other connectors | |
| QSY-G1/2-12 | Push-in Y-fitting · Other connectors | |
| QSYL-G1/2-12 | Push-in Y-fitting · Other connectors | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Other connectors | |
| QSYTF-G1/2-12 | Multiple distributor · Other connectors | |
| QSLV2-G1/2-12 | Multiple distributor · Other connectors | |
| QSLV3-G1/2-12 | Multiple distributor · Other connectors | |
| QSLV4-G1/2-12 | Multiple distributor · Other connectors | |
| QSLV6-G1/2-12 | Multiple distributor · Other connectors | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Other connectors | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Other connectors | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Other connectors | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Other connectors | |
| QS-V0-G1/2-10 | Push-in fitting · Other connectors | |
| QS-V0-G1/2-12 | Push-in fitting · Other connectors | |
| QS-1/2-10 | Push-in fitting · Other connectors | |
| QS-1/2-10-I | Push-in fitting · Other connectors | |
| QSL-1/2-10 | Push-in L-fitting · Other connectors | |
| QSLL-1/2-10 | Push-in L-fitting, long · Other connectors | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Other connectors | |
| QST-1/2-10 | Push-in T-fitting · Other connectors | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-MVM | Module connector · Mounting accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| MS6-RMV | Module connector · Mounting accessories | |
| MS6-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS6-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS6-A-IPM-80 | Branching module · Mounting accessories | |
| MS6-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| MS6-9-ARMV | Module connector · Mounting accessories | |
| MS6-RMV-EX | Module connector · Mounting accessories | |
| MS6-9-ARMV-EX | Module connector · Mounting accessories | |
| UOS-1-LF | Silencer · Silencer | |
| MS6-9-AMV-EX | Module connector · Mounting accessories | |
| NPFC-L-2G12-F | Elbow fitting · Other connectors | |
| NPFC-L-R12-G12-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R12-M | Elbow fitting · Other connectors | |
| NPFC-Y-3G12-F | Y-fitting · Other connectors | |
| NPFC-Y-R12-2G12-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G12-F | T-fitting · Other connectors | |
| NPFC-T-R12-2G12-MFF | T-fitting · Other connectors | |
| NPFC-T-2G12-R12-FMF | T-fitting · Other connectors | |
| NPFC-T-3R12-M | T-fitting · Other connectors | |
| NPFC-T-G12-2R12-FMM | T-fitting · Other connectors | |
| NPFC-T-2R12-G12-MMF | T-fitting · Other connectors | |
| NPFC-X-4G12-F | X-fitting · Other connectors | |
| NPFC-X-R12-3G12-MFFF | X-fitting · Other connectors | |
| NPFC-D-2G12-M | Double nipple · Other connectors | |
| NPFC-D-2R12-M | Double nipple · Other connectors | |
| NPFC-D-R12-R34-M | Double nipple · Other connectors | |
| NPFC-S-2G12-F | Sleeve · Other connectors | |
| NPFC-E1-2G12-FM | Extension · Other connectors | |
| NPFC-R-G12-G14-MF | Reducing nipple · Other connectors | |
| NPFC-R-G12-G38-MF | Reducing nipple · Other connectors | |
| NPFC-R-G12-G38-FM | Reducing nipple · Other connectors | |
| NPFC-D-2G12-M-P50 | Double nipple · Other connectors | |
| NPFC-D-G12-G34-M | Double nipple · Other connectors | |
| NPFC-R-G12-G18-F | Reducing sleeve · Other connectors | |
| NPFC-R-G12-G14-F | Reducing sleeve · Other connectors | |
| NPFC-R-G12-G38-F | Reducing sleeve · Other connectors | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Other connectors | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Other connectors | |
| NPFC-H-G12-F | Bulkhead fitting · Other connectors | |
| MS6-MV1 | Module connector · Mounting accessories | |
| NPFC-DS-G14-G12-M | Double nipple · Other connectors | |
| NPFC-DS-G38-G12-M | Double nipple · Other connectors | |
| NPFC-DS-G12-G12-M | Double nipple · Other connectors | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Other connectors | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Other connectors | |
| MS6-RB-10 | Covering kit · Mounting accessories | |
| MS6-MV1-F1A | Module connector · Mounting accessories |
Related Products
View Details
Festo
MS4(N)-DE
MFR #MS4(N)-DE
SKU #YLSYPMUJ5U9EQIH
View Details
Festo
VPPE-3-1-1/4-6-420-E1-F1A
MFR #VPPE-3-1-1/4-6-420-E1-F1A
SKU #YLSWDBTTICLA2KL
View Details
Festo
VPPE-3-1-1/4-6-420-E1T-F1A
MFR #VPPE-3-1-1/4-6-420-E1T-F1A
SKU #YLSBPNHJ3RMXXMI
View Details
Festo
VPPE-3-1-1/4-10-420-E1T-F1A
MFR #VPPE-3-1-1/4-10-420-E1T-F1A
SKU #YLSM2OFNCBYIG
View Details
Festo
VPPE-3-1-1/4-10-420-E1-F1A
MFR #VPPE-3-1-1/4-10-420-E1-F1A
SKU #YLSL17ZHMCVKDM
View Details
Festo
VPPE-3-1-1/4-2-420-E1T-F1A
MFR #VPPE-3-1-1/4-2-420-E1T-F1A
SKU #YLSKQHX9SCY1E2T
View Details
Festo
VPPE-3-1-1/4-2-420-E1-F1A
MFR #VPPE-3-1-1/4-2-420-E1-F1A
SKU #YLSPMEV3O6KTPGV
View Details
Festo
VPPE-3-1-1/4-6-MR-E1-F1A
MFR #VPPE-3-1-1/4-6-MR-E1-F1A
SKU #YLS8ARO0HDHAUUI
View Details
Festo
VPPE-3-1-1/4-10-MR-E1-F1A
MFR #VPPE-3-1-1/4-10-MR-E1-F1A
SKU #YLS8I7GHDJKSH4F
Featured Products
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Related Searches
FESTO MS6-SV-1/2-E-10V24-SO-AG priceFESTO MS6-SV-1/2-E-10V24-SO-AG quotebuy FESTO MS6-SV-1/2-E-10V24-SO-AGMS6-SV-1/2-E-10V24-SO-AG priceMS6-SV-1/2-E-10V24-SO-AG stock availabilityFESTO spare partsFESTO MS6-SV-1/2-E-10V24-SO-AG equivalentFESTO MS6-SV-1/2-E-10V24-SO-AG specifications
