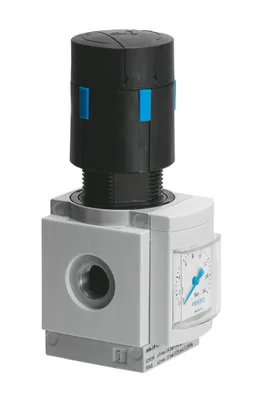

FESTO MS6-LRB-1/2-D5-AS

Pressure regulator. Grid dimension 62 mm. To build a regulator manifold with through air supply for pressure ranges that can be adjusted independently of one another. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Lockable rotary knob. With or without secondary exhausting. Integrated return flow option for exhausting from output 2 to input 1. Optional pressure sensor and rotary knob pressure gauge

FESTOMFR # MS6-LRB-1/2-D5-ASSKU # CEY-937FC7820DA0

Size6

SeriesMS

Mounting positionAny

Symbol00995309

Operating pressure0.8, 20

Pressure regulation range0.3, 4

Have questions?Chat on WhatsApp

About This Product

FESTO MS6-LRB-1/2-D5-AS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Actuator lockRotary knob with detent, can be closed with accessories

Mounting positionAny

DesignDirectly actuated diaphragm regulator, With through compressed air supply

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting

Symbol00995309

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure0.8, 20

Pressure regulation range0.3, 4

Max. pressure hysteresis0.25

Standard nominal flow rate (standardised to DIN 1343)7300

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Suitable for use with foodSee supplementary material information

Media temperature-10, 60

Ambient temperature-10, 60

Product weight747

Type of mountingWith accessories

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Note on materialsRoHS compliant

Material control panelProcess automation, POM

Material sealsNBR

Material housingDie-cast aluminium

Material membraneNBR

Accessories 146
