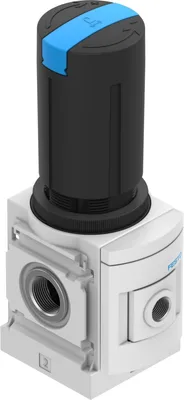

FESTO MS6-LRB-1/2-D5-A4-AS
Pressure regulator. Grid dimension 62 mm. To build a regulator manifold with through air supply for pressure ranges that can be adjusted independently of one another. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Lockable rotary knob. With or without secondary exhausting. Integrated return flow option for exhausting from output 2 to input 1. Optional pressure sensor and rotary knob pressure gauge
Size6
SeriesMS
Mounting positionAny
Symbol00995310
Operating pressure0.8, 20
Pressure regulation range0.3, 4
About This Product
Pressure regulator. Grid dimension 62 mm. To build a regulator manifold with through air supply for pressure ranges that can be adjusted independently of one another. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Lockable rotary knob. With or without secondary exhausting. Integrated return flow option for exhausting from output 2 to input 1. Optional pressure sensor and rotary knob pressure gauge
FESTO MS6-LRB-1/2-D5-A4-AS
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size6
SeriesMS
Actuator lockRotary knob with detent, can be closed with accessories
Mounting positionAny
DesignDirectly actuated diaphragm regulator, With through compressed air supply
Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting
Symbol00995310
Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/4
Operating pressure0.8, 20
Pressure regulation range0.3, 4
Max. pressure hysteresis0.25
Standard nominal flow rate (standardised to DIN 1343)7300
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10, 60
Suitable for use with foodSee supplementary material information
Media temperature-10, 60
Ambient temperature-10, 60
Product weight747
Type of mountingWith accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Note on materialsRoHS compliant
Material control panelProcess automation, POM
Material sealsNBR
Material housingDie-cast aluminium
Material membraneNBR
Accessories 148
Genuine accessories that can be used with the FESTO MS6-LRB-1/2-D5-A4-AS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| MS6-MVM | Module connector · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-9-AMV-EX | Module connector · Mounting accessories | |
| MS6-A-IPM-80 | Branching module · Mounting accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| LRVS-D | Padlock · General accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| QS-G1/2-12 | Push-in fitting · Fittings | |
| MS6-END | Cover cap · Mounting accessories | |
| QS-G1/2-16 | Push-in fitting · Fittings | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-9-ARMV | Module connector · Mounting accessories | |
| MS6-RMV | Module connector · Mounting accessories | |
| MS6-RMV-EX | Module connector · Mounting accessories | |
| QS-G1/2-12-I | Push-in fitting · Fittings | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS6-9-ARMV-EX | Module connector · Mounting accessories | |
| MS6-WPB | Mounting bracket · Mounting accessories | |
| MS6-WRS | Hex nut · Mounting accessories | |
| QSL-G1/2-12 | Push-in L-fitting · Fittings | |
| MS6-E-IPM-80-80 | Power supply module · Mounting accessories | |
| QSL-G1/2-16 | Push-in L-fitting · Fittings | |
| MS6-WR | Mounting bracket · Mounting accessories | |
| MS6-9-AMV | Module connector · Mounting accessories | |
| MA-40-16-G1/4-EN | Pressure gauge · General accessories | |
| MS6-WP | Mounting bracket · Mounting accessories | |
| PUN-H-16X2,5-NT | Plastic tubing · Tubes | |
| MA-50-1,6-G1/4-MPA | Pressure gauge · General accessories | |
| PUN-H-16X2,5-BL | Plastic tubing · Tubes | |
| MS6-MV1 | Module connector · Mounting accessories | |
| PUN-H-16X2,5-SW | Plastic tubing · Tubes | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CQ-1/2-15 | Push-in fitting · Fittings | |
| CQ-1/2-18 | Push-in fitting · Fittings | |
| CQ-1/2-12 | Push-in fitting · Fittings | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T quick connector · Quick connectors | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-RB-10 | Covering kit · Mounting accessories | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories |
Related Products
View Details
Festo
MS6-LR-AGE-D6-MPA
MFR #MS6-LR-AGE-D6-MPA
SKU #YLS7GBDRWAUOEU
View Details
Festo
MS6-LR-AGE-D7-MPA
MFR #MS6-LR-AGE-D7-MPA
SKU #YLS6GMGQZV35JM
View Details
Festo
MS6-LR-AGE-D7
MFR #MS6-LR-AGE-D7
SKU #YLS1VHVIITI2ZDI
View Details
Festo
MS6-LR-AGE-D7-VS
MFR #MS6-LR-AGE-D7-VS
SKU #YLSCFNWL1S9FBZY
View Details
Festo
MS6-LR-AGF-D6
MFR #MS6-LR-AGF-D6
SKU #YLSFZ9TPKVGJDA
View Details
Festo
MS6-LR-AGF-D7-MPA
MFR #MS6-LR-AGF-D7-MPA
SKU #YLSTSSXOBXYN3AF
View Details
Festo
MS6-LR-AGF-D6-MPA
MFR #MS6-LR-AGF-D6-MPA
SKU #YLSC0MYH5RHBN7Q
View Details
Festo
MS6-LR-AGF-D7-VS
MFR #MS6-LR-AGF-D7-VS
SKU #YLSRCAJH3CMMRAM
View Details
Festo
MS6-LR-AGF-D7
MFR #MS6-LR-AGF-D7
SKU #YLS9ACTBV27WRQ
Featured Products
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Related Searches
FESTO MS6-LRB-1/2-D5-A4-AS priceFESTO MS6-LRB-1/2-D5-A4-AS quotebuy FESTO MS6-LRB-1/2-D5-A4-ASMS6-LRB-1/2-D5-A4-AS priceMS6-LRB-1/2-D5-A4-AS stock availabilityFESTO spare partsFESTO MS6-LRB-1/2-D5-A4-AS equivalentFESTO MS6-LRB-1/2-D5-A4-AS specifications
