How can I get a price quote for FESTO MS6-LFX-1/2-R-Z?

You can request a fast quote for FESTO MS6-LFX-1/2-R-Z from Yılsa Engineering. Reference part number CEY-937FC7820C83. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MS6-LFX-1/2-R-Z in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MS6-LFX-1/2-R-Z genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MS6-LFX-1/2-R-Z?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

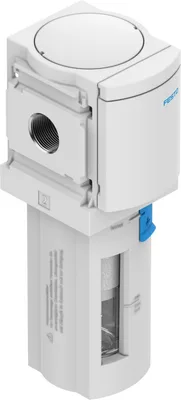

FESTO MS6-LFX-1/2-R-Z

Activated carbon filter. Grid dimension 62 mm. Removal of gaseous oil particles from compressed air using activated carbon. Air quality class at the output [1.4.1] to ISO 8573-1. Eliminates odours and vapours. Residual oil content = 0.003 mg/m³

FESTOMFR # MS6-LFX-1/2-R-ZSKU # CEY-937FC7820C83

Size6

SeriesMS

Mounting positionVertical +/-5°

DesignActivated carbon filter

Bowl guardPlastic bowl guard

Symbol00991519

Have questions?Chat on WhatsApp

About This Product

FESTO MS6-LFX-1/2-R-Z

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Mounting positionVertical +/-5°

DesignActivated carbon filter

Bowl guardPlastic bowl guard

Symbol00991519

Operating pressure0, 20

Max. standard flow rate for clean air class900

Operating mediumCompressed air according to ISO 8573-1:2010 [3:4:2]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Suitable for use with foodSee supplementary material information

Air purity class at outputCompressed air according to ISO 8573-1:2010 [3:4:1]

Media temperature5, 30

Residual oil content0.003

Ambient temperature-10, 60

Product weight600

Type of mountingWith accessories

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Note on materialsRoHS compliant

Material filterActivated carbon

Material housingDie-cast aluminium

Material bowlMakrolon®

Accessories 146

Genuine accessories that can be used with the FESTO MS6-LFX-1/2-R-Z motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-9-AMV	Module connector · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-A-IPM-80	Branching module · Mounting accessories
MS6-END	Cover cap · Mounting accessories
MS6-LFX-AKI	Activated carbon filter cartridge · General accessories
QSL-G1/2-16	Push-in L-fitting · Fittings
MS6-9-AMV-EX	Module connector · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
MS6-A-RMV-IPM-80	Branching module · Mounting accessories
MS6-MV1	Module connector · Mounting accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-RMV	Module connector · Mounting accessories
QS-G1/2-12	Push-in fitting · Fittings
MS6-9-ARMV	Module connector · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
MS6-RMV-EX	Module connector · Mounting accessories
MS6-E-IPM-40-80	Power supply module · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
QS-G1/2-12-I	Push-in fitting · Fittings
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS6-MVM	Module connector · Mounting accessories
MS6-E-IPM-80-80	Power supply module · Mounting accessories
MS6-LFX	Activated carbon filter cartridge · General accessories
QSL-G1/2-12	Push-in L-fitting · Fittings
PUN-H-16X2,5-NT	Plastic tubing · Tubes
MS6-LFX	Activated carbon filter · General accessories
QS-G1/2-16	Push-in fitting · Fittings
PUN-H-16X2,5-BL	Plastic tubing · Tubes
PUN-H-16X2,5-SW	Plastic tubing · Tubes
MS6-AGF	Connecting plate SET · Mounting accessories
CQ-1/2-15	Push-in fitting · Fittings
CQ-1/2-18	Push-in fitting · Fittings
CQ-1/2-12	Push-in fitting · Fittings
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T quick connector · Quick connectors
QSW-1/2-12	Push-in fitting · Push-in fittings
QSW-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-20	Push-in fitting · Push-in fittings
QS-1/2-16-20	Push-in fitting · Push-in fittings
QSL-1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-1/2-10-50	Push-in fitting · Push-in fittings
QSL-1/2-10-50	Push-in L-fitting · Push-in fittings
QSY-1/2-10	Push-in Y-fitting · Push-in fittings
QS-1/2-12	Push-in fitting · Push-in fittings
QS-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-I	Push-in fitting · Push-in fittings
QSL-1/2-12	Push-in L-fitting · Push-in fittings
QSL-1/2-16	Push-in L-fitting · Push-in fittings
QSLL-1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-1/2-12	Push-in L-fitting · Push-in fittings
QSLV-1/2-16	Push-in L-fitting · Push-in fittings
QSLV-1/2-12-I	Push-in L-fitting · Push-in fittings
QST-1/2-12	Push-in T-fitting · Push-in fittings
QST-1/2-16	Push-in T-fitting · Push-in fittings
QSTL-1/2-12	Push-in T-fitting · Push-in fittings
QSTL-1/2-16	Push-in T-fitting · Push-in fittings
QSY-1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-1/2-12-B	Push-in T-fitting · Push-in fittings
QSYLV-1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-1/2-12-B	Multiple distributor · Push-in fittings
QSLV2-1/2-12	Multiple distributor · Push-in fittings
QSLV3-1/2-12	Multiple distributor · Push-in fittings
QSLV4-1/2-12	Multiple distributor · Push-in fittings
QSLV6-1/2-12	Multiple distributor · Push-in fittings
QSR-1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-1/2-10	Push-in fitting · Push-in fittings
QS-V0-1/2-12	Push-in fitting · Push-in fittings
QST-V0-1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-1/2-1/2-I-U-M	Push-in fitting · Push-in fittings
QSLL-G1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-G1/2-12	Push-in L-fitting · Push-in fittings
QSLV-G1/2-16	Push-in L-fitting · Push-in fittings
QSLV-G1/2-12-I	Push-in L-fitting · Push-in fittings
QST-G1/2-12	Push-in T-fitting · Push-in fittings
QST-G1/2-16	Push-in T-fitting · Push-in fittings
QSTL-G1/2-12	Push-in T-fitting · Push-in fittings
QSTL-G1/2-16	Push-in T-fitting · Push-in fittings
QSY-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-G1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-G1/2-12	Push-in T-fitting · Push-in fittings
QSYLV-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-G1/2-12	Multiple distributor · Push-in fittings
QSLV2-G1/2-12	Multiple distributor · Push-in fittings
QSLV3-G1/2-12	Multiple distributor · Push-in fittings
QSLV4-G1/2-12	Multiple distributor · Push-in fittings
QSLV6-G1/2-12	Multiple distributor · Push-in fittings
QSR-G1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/2-10	Push-in fitting · Push-in fittings
QS-V0-G1/2-12	Push-in fitting · Push-in fittings
QST-V0-G1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-10	Push-in fitting · Push-in fittings
QS-1/2-10-I	Push-in fitting · Push-in fittings
QSL-1/2-10	Push-in L-fitting · Push-in fittings
QSLL-1/2-10	Push-in L-fitting, long · Push-in fittings
QSLL-G1/2-16	Push-in L-fitting, long · Push-in fittings
QST-1/2-10	Push-in T-fitting · Push-in fittings
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-AEND1	Mounting plate · Mounting accessories
CK-1/2-PK-9	Quick connector · Quick connectors
NPFC-L-2G12-F	Elbow fitting · Push-in fittings
NPFC-Y-3G12-F	Y-fitting · Push-in fittings
NPFC-T-3G12-F	T-fitting · Push-in fittings
NPFC-T-2G12-R12-FMF	T-fitting · Push-in fittings
NPFC-T-G12-2R12-FMM	T-fitting · Push-in fittings
NPFC-X-4G12-F	X-fitting · Push-in fittings
NPFC-D-2G12-M	Double nipple · Push-in fittings
NPFC-S-2G12-F	Sleeve · Push-in fittings
NPFC-E1-2G12-FM	Extension · Push-in fittings
NPFC-R-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-FM	Reducing nipple · Push-in fittings
NPFC-D-2G12-M-P50	Double nipple · Push-in fittings
NPFC-D-G12-G34-M	Double nipple · Push-in fittings
NPFC-R-G12-G18-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G14-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G38-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G14-MF-P50	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF-P50	Reducing nipple · Push-in fittings
NPFC-H-G12-F	Bulkhead fitting · Push-in fittings
MS6-WPG	Wall mounting-SET · Mounting accessories
NPFC-DS-G14-G12-M	Double nipple · Push-in fittings
NPFC-DS-G38-G12-M	Double nipple · Push-in fittings
NPFC-DS-G12-G12-M	Double nipple · Push-in fittings
NPFC-RS-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-RS-G12-G38-MF	Reducing nipple · Push-in fittings
MS6-RB-10	Covering kit · Mounting accessories
MS6-WP-F1A	Mounting bracket · Mounting accessories
