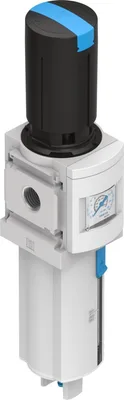

FESTO MS6-LFR-1/2-D7-CUM-AS
Filter regulator. Directly actuated diaphragm control valve. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Good particle and condensate separation. With or without secondary exhausting. High flow rate. Lockable rotary knob. Return flow option for exhausting from output 2 to input 1 already integrated. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm
Size6
SeriesMS
Mounting positionVertical +/-5°
Grade of filtration5
Condensate drainManual, rotating
DesignFilter regulator with pressure gauge
About This Product
Filter regulator. Directly actuated diaphragm control valve. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Good particle and condensate separation. With or without secondary exhausting. High flow rate. Lockable rotary knob. Return flow option for exhausting from output 2 to input 1 already integrated. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm
FESTO MS6-LFR-1/2-D7-CUM-AS
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size6
SeriesMS
Actuator lockRotary knob with detent, can be closed with accessories
Mounting positionVertical +/-5°
Grade of filtration5
Condensate drainManual, rotating
DesignFilter regulator with pressure gauge
Max. condensate volume38
Controller functionOutput pressure constant, With secondary exhausting
Bowl guardIntegrated as metal bowl
Degree of condensate separation75
Symbol00991589
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Operating pressure0.08, 2
Operating pressure0.8, 20
Pressure regulation range0.5, 12
Max. pressure hysteresis0.025
Max. pressure hysteresis0.25
Max. pressure hysteresis3.625
Standard nominal flow rate (standardised to DIN 1343)4000
Operating mediumInert gas
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10, 60
Suitable for use with foodSee supplementary material information
Air purity class at outputCompressed air to ISO 8573-1:2010 [6:4:4]
Media temperature-10, 60
Ambient temperature-10, 60
Pore size5
Product weight1087
Type of mountingWith accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Note on materialsRoHS compliant
Material control panelProcess automation, POM
Material sealsNBR
Material filterPackaging unit
Material housingDie-cast aluminium
Material membraneNBR
Material bowlWrought aluminium alloy
Material separating platePOM
Accessories 150
Genuine accessories that can be used with the FESTO MS6-LFR-1/2-D7-CUM-AS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| MS6-LFP-C | Filter cartridge · General accessories | |
| MS6-WR | Mounting bracket · Mounting accessories | |
| MS6-WP | Mounting bracket · Mounting accessories | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| LRVS-D | Padlock · General accessories | |
| QS-G1/2-16 | Push-in fitting · Fittings | |
| QSL-G1/2-16 | Push-in L-fitting · Fittings | |
| PUN-H-16X2,5-NT | Plastic tubing · Tubes | |
| PUN-H-16X2,5-SW | Plastic tubing · Tubes | |
| PUN-H-16X2,5-BL | Plastic tubing · Tubes | |
| MS6-WRS | Hex nut · Mounting accessories | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T quick connector · Quick connectors | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| CQ-1/2-12 | Push-in fitting · Connection accessories | |
| CQ-1/2-15 | Push-in fitting · Connection accessories | |
| CQ-1/2-18 | Push-in fitting · Connection accessories | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/2-12 | Push-in fitting · Push-in fittings | |
| QS-G1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| MS6-MVM | Module connector · Mounting accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| PWEA-AC-6A | Condensate drain · General accessories | |
| PWEA-AC-7A | Condensate drain · General accessories | |
| PWEA-AC-3D | Condensate drain · General accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| MS6-RMV | Module connector · Mounting accessories | |
| MS6-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS6-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS6-A-IPM-80 | Branching module · Mounting accessories | |
| MS6-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| MS6-9-ARMV | Module connector · Mounting accessories | |
| MS6-RMV-EX | Module connector · Mounting accessories | |
| MS6-9-ARMV-EX | Module connector · Mounting accessories | |
| MS6-9-AMV | Module connector · Mounting accessories | |
| MS6-9-AMV-EX | Module connector · Mounting accessories | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| MS6-WPG | Wall mounting-SET · Mounting accessories | |
| MS6-MV1 | Module connector · Mounting accessories | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-RB-10 | Covering kit · Mounting accessories | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories |
Related Products
View Details
Festo
MS6-LFR-AGE-D7-C-R-V
MFR #MS6-LFR-AGE-D7-C-R-V
SKU #YLS0UMEDKC40YT6
View Details
Festo
MSB6-1/2:J1:F3-WP
MFR #MSB6-1/2:J1:F3-WP
SKU #YLSMR04WUAHUEVA
View Details
Festo
MS6-LFR-AGE-D6-E-R-M-AS
MFR #MS6-LFR-AGE-D6-E-R-M-AS
SKU #YLSZSFTUHD7A3I7
View Details
Festo
MSB6-1/2:J120:M1-WP
MFR #MSB6-1/2:J120:M1-WP
SKU #YLSA2SKELKFQP6
View Details
Festo
MS6-LFR-AGE-D7-E-R-M
MFR #MS6-LFR-AGE-D7-E-R-M
SKU #YLSNZFB1UVAECIL
View Details
Festo
MSB6-1/2:J121:M1-WP
MFR #MSB6-1/2:J121:M1-WP
SKU #YLSODTQSWMDH2O
View Details
Festo
MS6-LFR-AGE-D7-E-R-M-MPA-AS
MFR #MS6-LFR-AGE-D7-E-R-M-MPA-AS
SKU #YLSFIPASJZRVXL
View Details
Festo
MSB6-1/2:J1:M1-WP
MFR #MSB6-1/2:J1:M1-WP
SKU #YLSBUDQ2YSLP8X
View Details
Festo
MS6-LFR-AGE-D7-E-R-V
MFR #MS6-LFR-AGE-D7-E-R-V
SKU #YLSI7IVJYMMB5W
Featured Products
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Related Searches
FESTO MS6-LFR-1/2-D7-CUM-AS priceFESTO MS6-LFR-1/2-D7-CUM-AS quotebuy FESTO MS6-LFR-1/2-D7-CUM-ASMS6-LFR-1/2-D7-CUM-AS priceMS6-LFR-1/2-D7-CUM-AS stock availabilityFESTO spare partsFESTO MS6-LFR-1/2-D7-CUM-AS equivalentFESTO MS6-LFR-1/2-D7-CUM-AS specifications
