Festo
MSB6-1/2:C3:J1:F1-WP
MFR #MSB6-1/2:C3:J1:F1-WP
SKU #YLSKCUYLRAVFQW
Photo may not represent actual item. Refer to name and product specs for all details.

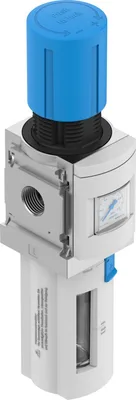

Festo MS6-LFR-1/2-D6-E-R-M-MPA
Filter regulator. Directly actuated diaphragm control valve. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Good particle and condensate separation. With or without secondary exhausting. High flow rate. Lockable rotary knob. Return flow option for exhausting from output 2 to input 1 already integrated. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionVertical +/-5°
Grade of filtration40
Condensate drainManual, rotating
About This Product
Filter regulator. Directly actuated diaphragm control valve. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Good particle and condensate separation. With or without secondary exhausting. High flow rate. Lockable rotary knob. Return flow option for exhausting from output 2 to input 1 already integrated. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm
Festo MS6-LFR-1/2-D6-E-R-M-MPA
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionVertical +/-5°
Grade of filtration40
Condensate drainManual, rotating
DesignFilter regulator with pressure gauge
Max. condensate volume38
Controller functionOutput pressure constant, With secondary exhausting
Bowl guardPlastic bowl guard
Degree of condensate separation75
Symbol00991589
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Operating pressure0, 2
Operating pressure0, 20
Pressure regulation range0.3, 7
Max. pressure hysteresis0.025
Max. pressure hysteresis0.25
Max. pressure hysteresis3.625
Standard nominal flow rate (standardised to DIN 1343)6200
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:-], Inert gas
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10, 60
Suitable for use with foodSee supplementary material information
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4]
Media temperature-10, 60
Ambient temperature-10, 60
Pore size40
Product weight875
Type of mountingWith accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Note on materialsRoHS compliant
Material control panelProcess automation, POM
Material sealsNBR
Material filterPackaging unit
Material housingDie-cast aluminium
Material membraneNBR
Material bowlMakrolon®
Material separating platePOM
Accessories 126
Genuine accessories that can be used with the Festo MS6-LFR-1/2-D6-E-R-M-MPA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QS-G1/2-12 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16 | Push-in fitting · Push-in fittings | |
| QS-G1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing sleeve · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T quick connector · Quick connectors | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-WR | Mounting bracket · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| MS6-WRS | Hex nut · Mounting accessories | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| MS6-WP | Mounting bracket · Mounting accessories | |
| MS6-LFP-E | Filter cartridge · General accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| MS6-END | Cover cap · Mounting accessories |
