How can I get a price quote for Festo MS6-FRM-1/2-A4-F1A?

You can request a fast quote for Festo MS6-FRM-1/2-A4-F1A from Yılsa Engineering. Reference part number YLSNEKOAIDVADT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MS6-FRM-1/2-A4-F1A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MS6-FRM-1/2-A4-F1A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MS6-FRM-1/2-A4-F1A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

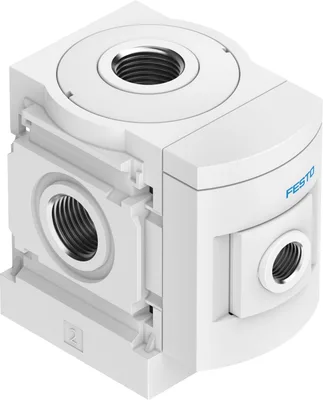

Festo MS6-FRM-1/2-A4-F1A

Branching module. Grid dimension 62 mm. Optionally with integrated non-return function and pressure switch. Outlet at top and bottom. Can be used as an intermediate distributor for varying air qualities. Optionally with pressure sensor

FestoMFR # MS6-FRM-1/2-A4-F1ASKU # YLSNEKOAIDVADT

Mounting positionAny

DesignBranching module

Symbol00991510

Operating pressure0, 20

Operational voltage range AC0, 250

Operational voltage range DC0, 125

Have questions?Chat on WhatsApp

About This Product

Festo MS6-FRM-1/2-A4-F1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Instructions on useForeign particles can adhere to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, to clean it after installatio

Mounting positionAny

DesignBranching module

Symbol00991510

Operating pressure0, 20

Standard nominal flow rate in main flow direction 1->214700

Standard nominal flow rate, outlet upwards4400

Standard nominal flow rate, outlet downwards4600

Operational voltage range AC0, 250

Operational voltage range DC0, 125

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Storage temperature-10, 60

Suitable for use with foodSee supplementary material information

Media temperature-10, 60

Ambient temperature-10, 60

Product weight458

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Pneumatic connection, port 3G1/2

Pneumatic connection, port 4G1/2

Note on materialsRoHS compliant

Material housingDie-cast aluminium

Accessories 132

Genuine accessories that can be used with the Festo MS6-FRM-1/2-A4-F1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-16X2,5-NT	Plastic tubing · Tubes
PUN-H-16X2,5-BL	Plastic tubing · Tubes
PUN-H-16X2,5-SW	Plastic tubing · Tubes
B-1/2	Blanking plug · General accessories
MS6-MV1-F1A	Module connector · Mounting accessories
MS6-WP-F1A	Mounting bracket · Mounting accessories
NPQR-DK-G12-Q16	Push-in fitting · Fittings
NPQR-L-G12-Q16	Push-in fitting · Fittings
MS6-AGF	Connecting plate SET · Mounting accessories
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T-quick connector · Quick connectors
QSW-1/2-12	Push-in fitting · Push-in fittings
QSW-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-20	Push-in fitting · Push-in fittings
QS-1/2-16-20	Push-in fitting · Push-in fittings
QSL-1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-1/2-10-50	Push-in fitting · Push-in fittings
QSL-1/2-10-50	Push-in L-fitting · Push-in fittings
QSY-1/2-10	Push-in Y-fitting · Push-in fittings
QS-1/2-12	Push-in fitting · Push-in fittings
QS-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-I	Push-in fitting · Push-in fittings
QSL-1/2-12	Push-in L-fitting · Push-in fittings
QSL-1/2-16	Push-in L-fitting · Push-in fittings
QSLL-1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-1/2-12	Push-in L-fitting · Push-in fittings
QSLV-1/2-16	Push-in L-fitting · Push-in fittings
QSLV-1/2-12-I	Push-in L-fitting · Push-in fittings
QST-1/2-12	Push-in T-fitting · Push-in fittings
QST-1/2-16	Push-in T-fitting · Push-in fittings
QSTL-1/2-12	Push-in T-fitting · Push-in fittings
QSTL-1/2-16	Push-in T-fitting · Push-in fittings
QSY-1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-1/2-12-B	Push-in T-fitting · Push-in fittings
QSYLV-1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-1/2-12-B	Multiple distributor · Push-in fittings
QSLV2-1/2-12	Multiple distributor · Push-in fittings
QSLV3-1/2-12	Multiple distributor · Push-in fittings
QSLV4-1/2-12	Multiple distributor · Push-in fittings
QSLV6-1/2-12	Multiple distributor · Push-in fittings
QSR-1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-1/2-10	Push-in fitting · Push-in fittings
QS-V0-1/2-12	Push-in fitting · Push-in fittings
QST-V0-1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-1/2-1/2-I-U-M	Push-in fitting · Push-in fittings
QS-G1/2-12	Push-in fitting · Push-in fittings
QS-G1/2-16	Push-in fitting · Push-in fittings
QS-G1/2-12-I	Push-in fitting · Push-in fittings
QSL-G1/2-12	Push-in L-fitting · Push-in fittings
QSL-G1/2-16	Push-in L-fitting · Push-in fittings
QSLL-G1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-G1/2-12	Push-in L-fitting · Push-in fittings
QSLV-G1/2-16	Push-in L-fitting · Push-in fittings
QSLV-G1/2-12-I	Push-in L-fitting · Push-in fittings
QST-G1/2-12	Push-in T-fitting · Push-in fittings
QST-G1/2-16	Push-in T-fitting · Push-in fittings
QSTL-G1/2-12	Push-in T-fitting · Push-in fittings
QSTL-G1/2-16	Push-in T-fitting · Push-in fittings
QSY-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-G1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-G1/2-12	Push-in T-fitting · Push-in fittings
QSYLV-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-G1/2-12	Multiple distributor · Push-in fittings
QSLV2-G1/2-12	Multiple distributor · Push-in fittings
QSLV3-G1/2-12	Multiple distributor · Push-in fittings
QSLV4-G1/2-12	Multiple distributor · Push-in fittings
QSLV6-G1/2-12	Multiple distributor · Push-in fittings
QSR-G1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/2-10	Push-in fitting · Push-in fittings
QS-V0-G1/2-12	Push-in fitting · Push-in fittings
QST-V0-G1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-10	Push-in fitting · Push-in fittings
QS-1/2-10-I	Push-in fitting · Push-in fittings
QSL-1/2-10	Push-in L-fitting · Push-in fittings
QSLL-1/2-10	Push-in L-fitting, long · Push-in fittings
QSLL-G1/2-16	Push-in L-fitting, long · Push-in fittings
QST-1/2-10	Push-in T-fitting · Push-in fittings
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-WPB	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
B-1/2-20	Blanking plug · Other connectors
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
CK-1/2-PK-9	Quick connector · Quick connectors
NPFC-L-2G12-F	Elbow fitting · Push-in fittings
NPFC-Y-3G12-F	Y-fitting · Push-in fittings
NPFC-T-3G12-F	T-fitting · Push-in fittings
NPFC-T-2G12-R12-FMF	T-fitting · Push-in fittings
NPFC-T-G12-2R12-FMM	T-fitting · Push-in fittings
NPFC-X-4G12-F	X-fitting · Push-in fittings
NPFC-D-2G12-M	Double nipple · Push-in fittings
NPFC-S-2G12-F	Coupling sleeve · Push-in fittings
NPFC-E1-2G12-FM	Extension · Push-in fittings
NPFC-R-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-FM	Reducing nipple · Push-in fittings
NPFC-D-2G12-M-P50	Double nipple · Push-in fittings
NPFC-D-G12-G34-M	Double nipple · Push-in fittings
NPFC-R-G12-G18-F	Reducing coupling · Push-in fittings
NPFC-R-G12-G14-F	Reducing coupling · Push-in fittings
NPFC-R-G12-G38-F	Reducing coupling · Push-in fittings
NPFC-R-G12-G14-MF-P50	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF-P50	Reducing nipple · Push-in fittings
NPFC-H-G12-F	Bulkhead fitting · Push-in fittings
NPFC-DS-G14-G12-M	Double nipple · Push-in fittings
NPFC-DS-G38-G12-M	Double nipple · Push-in fittings
NPFC-DS-G12-G12-M	Double nipple · Push-in fittings
NPFC-RS-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-RS-G12-G38-MF	Reducing nipple · Push-in fittings
