How can I get a price quote for FESTO MOFH-3-3/4-EX?

You can request a fast quote for FESTO MOFH-3-3/4-EX from Yılsa Engineering. Reference part number CEY-937FC782011F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MOFH-3-3/4-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MOFH-3-3/4-EX genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MOFH-3-3/4-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

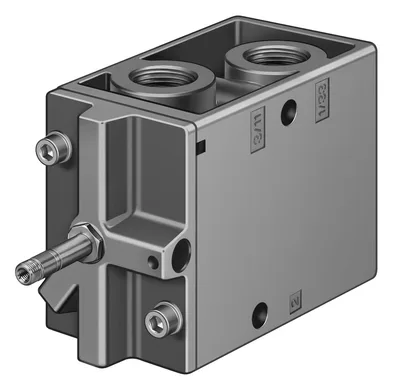

FESTO MOFH-3-3/4-EX

Solenoid valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # MOFH-3-3/4-EXSKU # CEY-937FC782011F

Valve function3/2-way, single solenoid, open

Type of actuationElectrical

Construction width68

pneumatic working portG3/4

Operating pressure0.2, 0.8

Operating pressure2, 8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTO MOFH-3-3/4-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, open

Type of actuationElectrical

Construction width68

Standard nominal flow rate (standardised to DIN 1343)7500

pneumatic working portG3/4

Operating voltageVia solenoid coil, must be ordered separately

Operating pressure0.2, 0.8

Operating pressure2, 8

DesignPoppet seat

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-5°C <= Ta <= +40°C

Degree of protectionIP65

Nominal size19

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991017

lapUnderlap

Switching time off29

Switching time on40

Max. positive test pulse with 0 signal2200

Characteristic coil dataSee solenoid coil, to be ordered separately

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Media temperature-5, 40

Ambient temperature-5, 40

Product weight1260

Electrical connectionVia F coil, to be ordered separately

Type of mountingWith through-hole

Breather connectionM3

Pilot exhaust port 82M5

Pneumatic connection, port 1G3/4

Pneumatic connection, port 11G3/4

Pneumatic connection, port 2G3/4

Pneumatic connection, port 3G3/4

Pneumatic port 33G3/4

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 18

Genuine accessories that can be used with the FESTO MOFH-3-3/4-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MF-LD-12-24DC	Illuminating seal · Electrical accessories
MF-LD-230AC	Illuminating seal · Electrical accessories
MSFG-24-EX	Solenoid coil · Electrical accessories
MSFW-110-50/60-EX	Solenoid coil · Electrical accessories
MSFW-230-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-1-EX4-M	Solenoid coil · Electrical accessories
U-3/4	Silencer · Silencer
QS-G3/4-22	Push-in fitting · Fittings
PAN-R-22X2-SW	Plastic tubing · Tubes
MSFW-24-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-10-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-20-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-5-EX4-M	Solenoid coil · Electrical accessories
