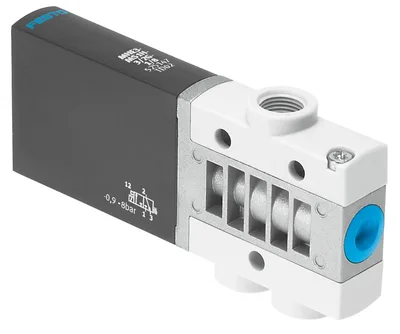

Photo may not represent actual item. Refer to name and product specs for all details.

Festo MHE3-M1H-3/2O-1/8

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

FestoMFR # MHE3-M1H-3/2O-1/8SKU # CEY-937FC78213E1

Valve function3/2-way, single solenoid, open

Type of actuationElectrical

Construction width14

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

Festo MHE3-M1H-3/2O-1/8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, open

Type of actuationElectrical

Construction width14

Standard nominal flow rate (standardised to DIN 1343)200

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignPressure relief poppet valve

Type of resetMechanical spring

Degree of protectionIP65

Approvalc UL us - Recognised (Oil)

Nominal size3

Grid dimension19

Note on grid dimensionMinimum distance between the valves is 5 mm

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingDirect

Flow directionReversible with restrictions

Symbol00991322

lapUnderlap

Operating pressure, reversible-0.09, 0.1

Operating pressure, reversible-0.9, 1

Operating pressure, reversible-13.05, 14.5

Max. switching frequency130

Switching time off4.5

Switching time on8.3

Duty cycle100%

Characteristic coil data24 V DC: 3.7 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Media temperature-5, 60

Ambient temperature-5, 60

Product weight120

Electrical connection2-pin, Plug

Type of mountingWith through-hole

Pneumatic connection, port 11G1/8

Pneumatic connection, port 2G1/8

Pneumatic port 33G1/8

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast zinc, coated

Material screwsGalvanised steel

Accessories 151

Genuine accessories that can be used with the Festo MHE3-M1H-3/2O-1/8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MHE2-BG-L	Mounting bracket · Mounting accessories
U-1/8	Silencer · Silencer
PUN-H-8X1,25-NT	Plastic tubing · Tubes
QS-G1/8-8	Push-in fitting · Fittings
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
NEBV-Z4WA2L-P-E-2.5-N-LE2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-P-E-2.5-N-M8G3-S1	Connecting cable · Connecting cables
CK-1/8-PK-4	Quick connector · Quick connectors
CK-1/8-PK-6	Quick connector · Quick connectors
CK-1/8-PK-3	Quick connector · Quick connectors
LCK-1/8-PK-3	Elbow quick connector · Quick connectors
TCK-1/8-PK-3	T-quick connector · Quick connectors
LCK-1/8-PK-4	Elbow quick connector · Quick connectors
LCK-1/8-PK-6	Elbow quick connector · Quick connectors
TCK-1/8-PK-4	T-quick connector · Quick connectors
TCK-1/8-PK-6	T-quick connector · Quick connectors
CK-1/8-PK-3-KU	Quick connector · Quick connectors
CK-1/8-PK-4-KU	Quick connector · Quick connectors
CK-1/8-PK-6-KU	Quick connector · Quick connectors
LCK-1/8-PK-4-KU	Elbow quick connector · Quick connectors
LCK-1/8-PK-6-KU	Elbow quick connector · Quick connectors
TCK-1/8-PK-4-KU	T-quick connector · Quick connectors
TCK-1/8-PK-6-KU	T-quick connector · Quick connectors
U-1/8-B	Silencer · Silencer
CN-1/8-PK-3	Barbed fitting · Barbed fittings
CN-1/8-PK-4	Barbed fitting · Barbed fittings
CN-1/8-PK-6	Barbed fitting · Barbed fittings
LCN-1/8-PK-3	Barbed elbow fitting · Barbed fittings
LCN-1/8-PK-4	Barbed elbow fitting · Barbed fittings
LCN-1/8-PK-6	Barbed elbow fitting · Barbed fittings
TCN-1/8-PK-3	Barbed T-fitting · Barbed fittings
TCN-1/8-PK-4	Barbed T-fitting · Barbed fittings
TCN-1/8-PK-6	Barbed T-fitting · Barbed fittings
LCNH-1/8-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-1/8-PK-4	Barbed elbow fitting · Barbed fittings
LCNH-1/8-PK-6	Barbed elbow fitting · Barbed fittings
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-8-50	Push-in fitting · Push-in fittings
QSL-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-8-50	Push-in L-fitting · Push-in fittings
QSLV-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8-50	Push-in L-fitting · Push-in fittings
QST-G1/8-4-100	Push-in T-fitting · Push-in fittings
QST-G1/8-6-100	Push-in T-fitting · Push-in fittings
QST-G1/8-8-50	Push-in T-fitting · Push-in fittings
QSTL-G1/8-4-100	Push-in T-fitting · Push-in fittings
QSTL-G1/8-6-100	Push-in T-fitting · Push-in fittings
QSTL-G1/8-8-50	Push-in T-fitting · Push-in fittings
QSML-G1/8-4-100	Push-in L-fitting · Push-in fittings
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QSLL-G1/8-4-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8-100	Push-in L-fitting, long · Push-in fittings
UC-1/8	Silencer · Silencer
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-6	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Push-in fittings
QSL-G1/8-4	Push-in L-fitting · Push-in fittings
QSL-G1/8-6	Push-in L-fitting · Push-in fittings
QSL-G1/8-8	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8	Push-in L-fitting, long · Push-in fittings
QSLV-G1/8-4	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6-I	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8-I	Push-in L-fitting · Push-in fittings
QST-G1/8-4	Push-in T-fitting · Push-in fittings
QST-G1/8-6	Push-in T-fitting · Push-in fittings
QST-G1/8-8	Push-in T-fitting · Push-in fittings
QSTL-G1/8-4	Push-in T-fitting · Push-in fittings
QSTL-G1/8-6	Push-in T-fitting · Push-in fittings
QSTL-G1/8-8	Push-in T-fitting · Push-in fittings
QSY-G1/8-4	Push-in Y-fitting · Push-in fittings
QSY-G1/8-6	Push-in Y-fitting · Push-in fittings
QSY-G1/8-8	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-4	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-6	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-8	Push-in Y-fitting · Push-in fittings
QSTF-G1/8-4	Push-in T-fitting · Push-in fittings
QSTF-G1/8-6	Push-in T-fitting · Push-in fittings
QSTF-G1/8-8	Push-in T-fitting · Push-in fittings
QSYLV-G1/8-6	Push-in Y-fitting · Push-in fittings
QSYTF-G1/8-6	Multiple distributor · Push-in fittings
QST3-G1/8-6-4	Multiple distributor · Push-in fittings
QSQ-G1/8-4	Multiple distributor · Push-in fittings
QSQ-G1/8-6	Multiple distributor · Push-in fittings
QSLV2-G1/8-4	Multiple distributor · Push-in fittings
QSLV2-G1/8-6	Multiple distributor · Push-in fittings
QSLV2-G1/8-8	Multiple distributor · Push-in fittings
QSLV3-G1/8-4	Multiple distributor · Push-in fittings
QSLV3-G1/8-6	Multiple distributor · Push-in fittings
QSLV3-G1/8-8	Multiple distributor · Push-in fittings
QSLV4-G1/8-4	Multiple distributor · Push-in fittings
QSLV4-G1/8-6	Multiple distributor · Push-in fittings
QSLV4-G1/8-8	Multiple distributor · Push-in fittings
QSLV6-G1/8-4	Multiple distributor · Push-in fittings
QSLV6-G1/8-6	Multiple distributor · Push-in fittings
QSLV6-G1/8-8	Multiple distributor · Push-in fittings
QSM-G1/8-4	Push-in fitting · Push-in fittings
QSM-G1/8-6	Push-in fitting · Push-in fittings
QSM-G1/8-4-I	Push-in fitting · Push-in fittings
QSM-G1/8-6-I	Push-in fitting · Push-in fittings
QSML-G1/8-4	Push-in L-fitting · Push-in fittings
QSML-G1/8-6	Push-in L-fitting · Push-in fittings
QSMLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSMLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
QSMT-G1/8-4	Push-in T-fitting · Push-in fittings
QSMT-G1/8-6	Push-in T-fitting · Push-in fittings
QSMTL-G1/8-4	Push-in T-fitting · Push-in fittings
QSMTL-G1/8-6	Push-in T-fitting · Push-in fittings
QSR-G1/8-4	Push-in fitting, rotatable · Push-in fittings
QSR-G1/8-6	Push-in fitting, rotatable · Push-in fittings
QSR-G1/8-8	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/8-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G1/8-6	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G1/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSMK-G1/8-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-G1/8-6	Push-in fitting, self-sealing · Push-in fittings
QSK-G1/8-8	Push-in fitting, self-sealing · Push-in fittings
QSMKL-G1/8-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-G1/8-6	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G1/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/8-6	Push-in fitting · Push-in fittings
QS-V0-G1/8-8	Push-in fitting · Push-in fittings
QSL-V0-G1/8-6	Push-in L-fitting · Push-in fittings
QSL-V0-G1/8-8	Push-in L-fitting · Push-in fittings
QST-V0-G1/8-6	Push-in T-fitting · Push-in fittings
QST-V0-G1/8-8	Push-in T-fitting · Push-in fittings
KMYZ-4-24-0,5-B	Plug socket with cable · Electrical accessories
KMYZ-4-24-2,5-B	Plug socket with cable · Electrical accessories
UC-1/8-50	Silencer · Silencer
U-1/8-50	Silencer · Silencer
AMTE-M-LH-G18	Silencer · Silencer
AMTE-M-H-G18	Silencer · Silencer
NEDY-	Distributor · Electrical accessories
NEBV-Z4WA2L-P-E-10-N-LE2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-P-E-5-N-LE2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-P-E-0.5-N-M8G3-S1	Connecting cable · Connecting cables
