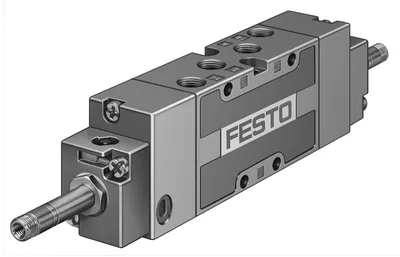

FESTO MFH-5/3G-1/8-S-B-EX

Solenoid valve. Sturdy and reliable. Wide range of voltages thanks to individual coils. Principle with armature tube. To EU Explosion Protection Directive (ATEX)

FESTOMFR # MFH-5/3G-1/8-S-B-EXSKU # CEY-937FC7820320

Valve function5/3-way, closed

Type of actuationElectrical

Construction width26

pneumatic working portG1/8

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sturdy and reliable. Wide range of voltages thanks to individual coils. Principle with armature tube. To EU Explosion Protection Directive (ATEX)

FESTO MFH-5/3G-1/8-S-B-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3-way, closed

Type of actuationElectrical

Construction width26

Standard nominal flow rate (standardised to DIN 1343)1000

pneumatic working portG1/8

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-5°C <= Ta <= +40°C

Degree of protectionIP65

Nominal size8

Grid dimension27

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionReversible

Symbol00991020

lapOverlap

Pilot pressure0.3, 1

Pilot pressure3, 10

Max. switching frequency3

Switching time off23

Switching time on20

Switching time reversal23

Max. positive test pulse with 0 signal2200

Max. negative test pulse with 1 signal3700

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-40, 60

Media temperature-5, 40

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 40

Product weight440

Electrical connectionVia F coil, to be ordered separately

Type of mountingWith through-hole

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pilot air port 12G1/8

Pilot air port 14G1/8

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4G1/8

Pneumatic connection, port 5G1/8

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 24

Genuine accessories that can be used with the FESTO MFH-5/3G-1/8-S-B-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VACF-B-K1-1-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-1-EX4-M	Solenoid coil · Electrical accessories
UC-M5	Silencer · Silencer
PUN-H-8X1,25-NT	Plastic tubing · Tubes
QS-G1/8-8	Push-in fitting · Fittings
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
QS-G1/8-4-I	Push-in fitting · Fittings
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
QS-G1/8-8-I	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
QSLL-G1/8-8	Push-in L-fitting, long · Fittings
AHB-MD/MF/MV	Manual override · General accessories
MSFG-24-EX	Solenoid coil · Electrical accessories
MSFW-24-50/60-EX	Solenoid coil · Electrical accessories
MSFW-110-50/60-EX	Solenoid coil · Electrical accessories
MSFW-230-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-10-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-20-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-5-EX4-M	Solenoid coil · Electrical accessories
