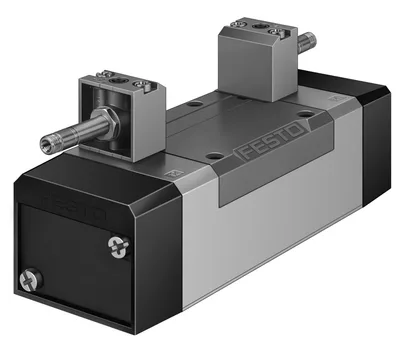

FESTO MFH-5/3B-D-3-C-EX

Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible. Extensive range of electrical connection options. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Also available as a valve terminal

FESTOMFR # MFH-5/3B-D-3-C-EXSKU # CEY-937FC782015A

Valve function5/3-way, pressurised

Type of actuationElectrical

Construction width65

pneumatic working portSub-base size 3 to ISO 5599-1, G1/2

Operating pressure0.3, 1

Operating pressure3, 10

Have questions?Chat on WhatsApp

About This Product

FESTO MFH-5/3B-D-3-C-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3-way, pressurised

Type of actuationElectrical

Construction width65

Standard nominal flow rate (standardised to DIN 1343)4000

pneumatic working portSub-base size 3 to ISO 5599-1, G1/2

Operating voltageVia solenoid coil, must be ordered separately

Operating pressure0.3, 1

Operating pressure3, 10

DesignPiston gate valve

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T105°C Db

Explosion ambient temperature-5°C <= Ta <= +40°C

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Degree of protectionIP65

Nominal size14.5

Grid dimension71

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideDetenting via accessory, Non-detenting

ISO code358

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991083

lapOverlap

Suitability for vacuumNo

Switching time off75

Switching time on36

Max. positive test pulse with 0 signal2200

Max. negative test pulse with 1 signal3700

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Sound pressure level85

Ambient temperature-5, 40

Product weight1040

Electrical connectionVia F coil, to be ordered separately

Type of mountingOn sub-base, Via through-hole and screw

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast aluminium

Accessories 13

Genuine accessories that can be used with the FESTO MFH-5/3B-D-3-C-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MSFG-24-EX	Solenoid coil · Electrical accessories
MSFW-24-50/60-EX	Solenoid coil · Electrical accessories
MSFW-110-50/60-EX	Solenoid coil · Electrical accessories
MSFW-230-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-10-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-20-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-5-EX4-M	Solenoid coil · Electrical accessories
